Cooper Lighting: Lumark XSF All-Selectable Floodlight

Oct 26, 2026 - Cooper Lighting Lumark XSF All-Selectable Floodlight

October 26, 2026

XSF All-Selectable Floodlight Ensures Dependable Performance & Quality Illumination

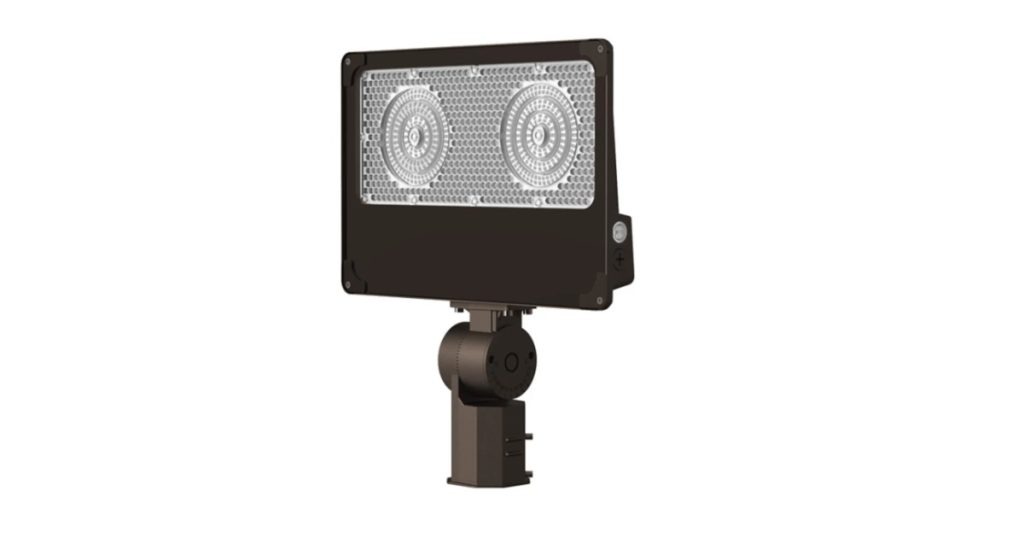

The Lumark XSF All-Selectable Floodlight delivers powerful, energy-efficient illumination with exceptional flexibility for a wide range of outdoor applications. Featuring 144 configurations in each SKU, this fixture offers 4 selectable wattages from 3,840 to 49,500 lumens, 3 selectable CCTs from 3000K to 5000K, and 3 selectable beam angles including NEMA 4×4, 5×5, and 6×6. With two mounting options included per fixture—Knuckle & Yoke or Slipfitter & Trunnion—installation can be tailored to the needs of the project. A selectable dusk-to-dawn photocontrol with on/off control enhances efficiency and convenience, while 120–347V operation and 80 CRI ensure dependable performance and quality illumination.


Features

  • 144 configurations in each SKU
  • 4 Wattage selectable: 3,840 – 49,500 lumens
  • 3 CCT selectable: 3000K-4000K-5000K​, 80 CRI
  • 3 Beam angle selectable switches: NEMA 4×4, 5×5, & 6×6 beam angles

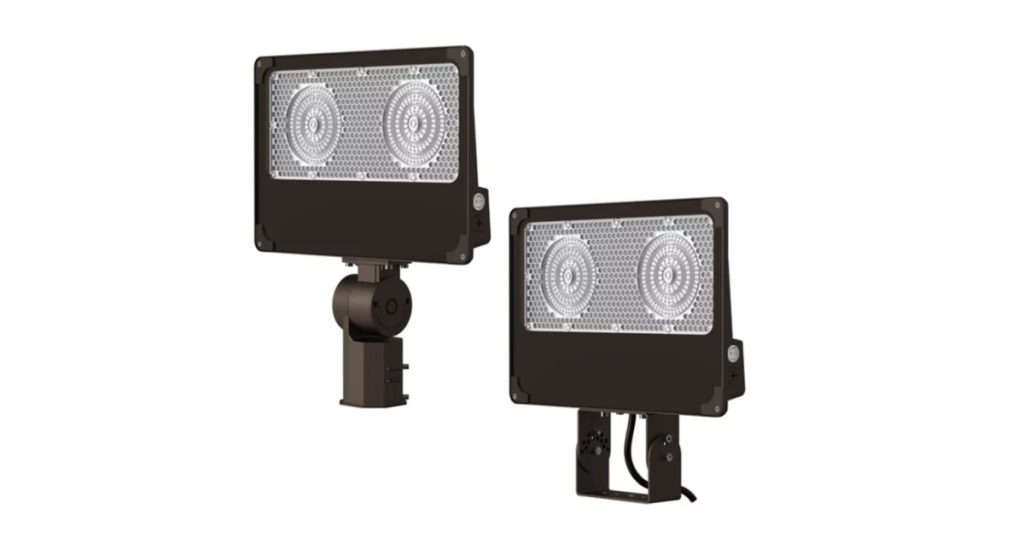

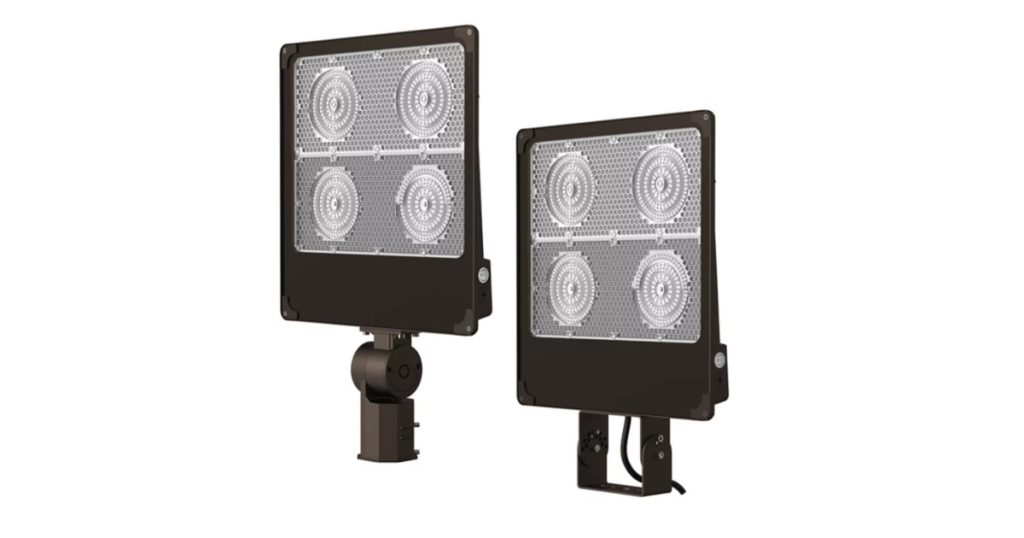

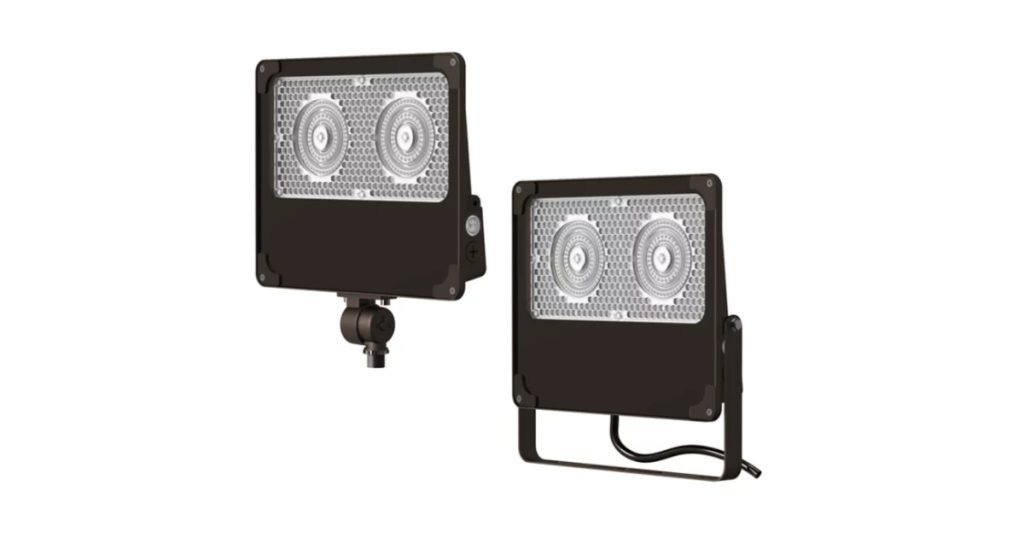

  • 2 Mounting options included per fixture: Knuckle & Yoke​ or Slip Fitter & Trunnion
  • Selectable Dusk-to-Dawn Photocontrol with On/Off control
  • 120-347V

Advantages

  • Lumens Where You Need Them: Easily tailor the light output with 4 selectable wattage levels, delivering up to 49,500 lumens for maximum flexibility in various applications. Adjust the luminaire to fit your precise needs with a simple internal toggle switch.
  • Simply Uncompromising: The XSF is designed to provide genuine color temperature versatility while maintaining consistent light output across all settings and distributions, enabling you to customize your lighting without sacrificing performance.
  • Versatile Distributions: Optimize light distribution with 3 selectable beam patterns (NEMA 4×4, NEMA 5×5 and NEMA 6×6), ensuring uniform illumination for any area or site.
  • Controls Included: The TWC comes equipped with a button-type photocell for dusk-to-dawn operation for seamless control and energy savings.

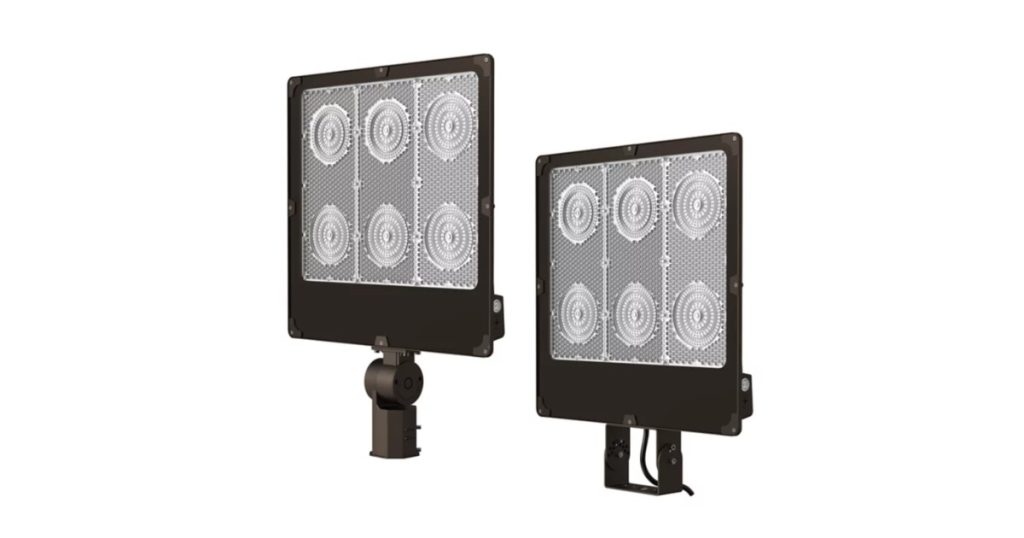

  • Mounting Options Included: The XSF comes equipped with 2 mounting options with each fixture – a knuckle & yoke or a slipfitter & trunnion.

View spec sheet HERE


Specifications

Construction

  • Die-cast aluminum housing
  • Durable surface powder coating spray
  • Fully sealed tempered glass
  • Slipfitter size: 2-3/8″ tenon

Controls

  • Selectable configurations offer internal toggle switches for adjusting lumens, CCT, and distribution.
  • Default settings for selectable luminaires are 4000K CCT and maximum lumen output.

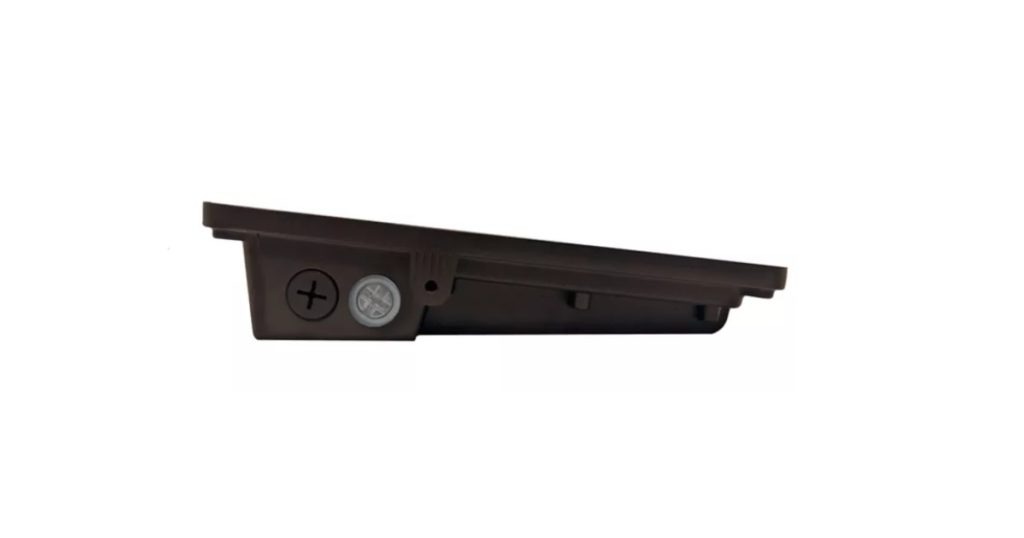

  • Integrated button-type photocontrol is included for dusk-to-dawn operation.

Electrical

  • -40°C Minimum operating temperature
  • 40°C Maximum operating temperature
  • >.9 Power factor
  • <20% Total harmonic distortion
  • Class 2 driver incorporates internal fusing designed to withstand 4kV surge
  • 0-10V Dimming driver standard

Mounting

  • Knuckle
  • Slipfitter
  • Trunnion
  • Yoke

Typical Applications

  • Facade
  • Wall Washing
  • Landscape Lighting
  • Building Lighting
  • Sign Lighting
  • Commercial Lighting

Shipping Data

  • XSF60-KNYK: 29.5×15.4×11.4 in 4 units/carton
    • Approx weight per carton: 28 lbs
  • XSF100-SFTR: 20.5×18.5×11.4 2 units/carton
    • Approx weight per carton: 26 lbs
  • XSF200-SFTR: 26.7×18.9×11.4 2 units/carton
    • Approx weight per carton: 35 lbs
  • XSF300-SFTR: 29.5×22.8×11.4 2 units/carton
    • Approx weight per carton: 48 lbs

Warranty

  • Five-year limited warranty. Consult website for details.

For more information on Cooper Lighting Solutions HERE
