SATCO|NUVO: LED Strip Retrofit Kits

July 31, 2025 - SATCONUVO LED Strip Retrofit Kits

August 1, 2025

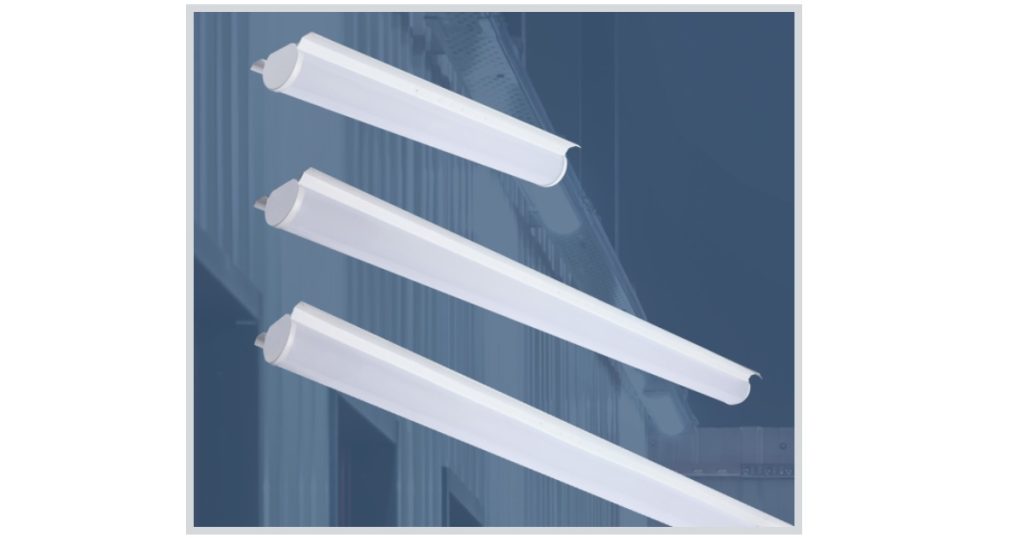

LED Strip Retrofit Kits: Ideal for Warehouses, Workshops, and a Range of Commercial & Industrial Spaces

SATCO|NUVO’s new LED Strip Retrofit Kits offer an energy-efficient solution for upgrading existing fluorescent strip fixtures. Designed with adjustable mounting strips to retrofit housings from 2.75″ to 5.25″ wide, these kits accommodate a wide range of installation needs. Available in 2ft, 4ft, and 8ft lengths, all models feature field-selectable technology (CCT and wattage). A white polycarbonate lens and robust steel body ensures even light distribution and long-lasting performance. A standard 0-10V dimming driver provides smooth, continuous dimming.

Installation for Satco’s LED Strip Retrofit Kits is fast and efficient, there’s no need to remove the lens, reducing labor time and lowering installation costs. Delivering uniform light, long life, and energy-efficient performance, these retrofit kits are ideal for warehouses, workshops, and a range of commercial and industrial spaces.

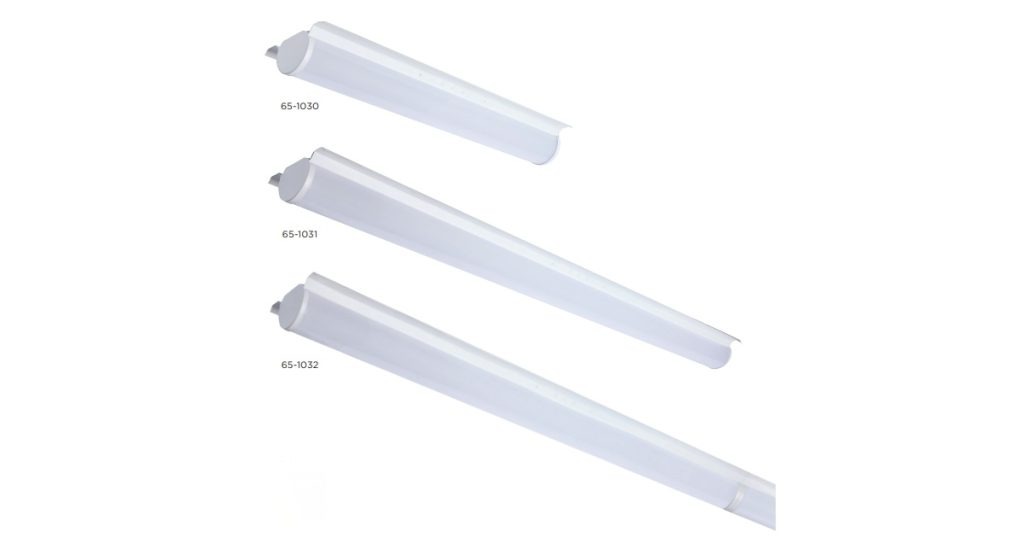

Features

  • Field Selectable: Wattage & CCT
  • Retrofit Existing 2.75″ – 5.25″ Wide Fluorescent Strip Fixtures
  • Adjustable Installation Strips Included
  • Smooth White Lens for Even Light Distribution

Applications

July 31, 2025 - SATCONUVO LED Strip Retrofit Kits 2
  • Warehouses
  • Storage Areas
  • Manufacturing Facilities
  • Garage
  • Commercial

Specifications

  • Input Voltage: 120V-277V
  • Frequency: 50/60Hz
  • Power Factor: 0.9
  • THD%: <20%
  • Dimming: 0-10V dimmable down to 20%
  • Surge Protection Rating: 2kV
  • Efficacy: 130 LPW
  • CRI: 80
  • CCT Selectable: 3500K/4000K/5000K
  • Beam Angle: 120°
  • Location Rating: Damp
  • Ambient Operating Temperature: -20°C (-4°F) to +45°C (+113°F)
  • Housing Construction: Steel
  • Lens Material: Polycarbonate
  • Lens Finish: White
  • Functional Life: 50,000 Hours
  • Warranty: 5 Years
July 31, 2025 - SATCONUVO LED Strip Retrofit Kits 2
SATCONUVO LED Strip Retrofit Kits

Source
