Cristal: CC-PS24 – Ambiant Light Level Sensor
May 5, 2025
Discover the Functionality of the CC-PS24 Ambiant Light Level Sensor

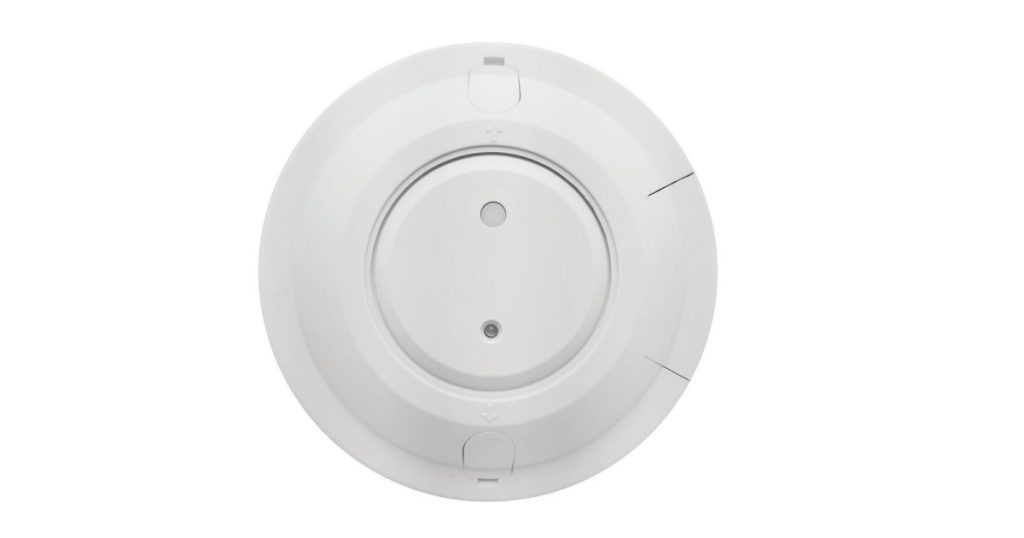

The CC-PS24 is a ceiling-mounted photo sensing device used to detect ambient light levels and accordingly switch ON/OFF the lighting fixture as per programed settings. LED displays and automatic light level settings are provided to facilitate an easy installation by the user. Benefits of lighting control sensors include increased efficiency and energy savings, as well as improved lighting ambiance customization.
Features
- Always switch OFF the electrical power before installing the sensor and make sure the voltage rating corresponds to the sensor’s rating.
- Direct mount to ceiling junction box.
- Wire the sensor according to the wiring diagram.
- Attach the sensor to the junction box with 2 screws.
- Cover the screws with the screw covers provided.
Applications
- Offices
- Classrooms
- Atriums
- Commercial
- Meeting rooms
Specifications
| Illumination Range | 0.5 to 250 footcandles (5.4 to 2691 lux) |

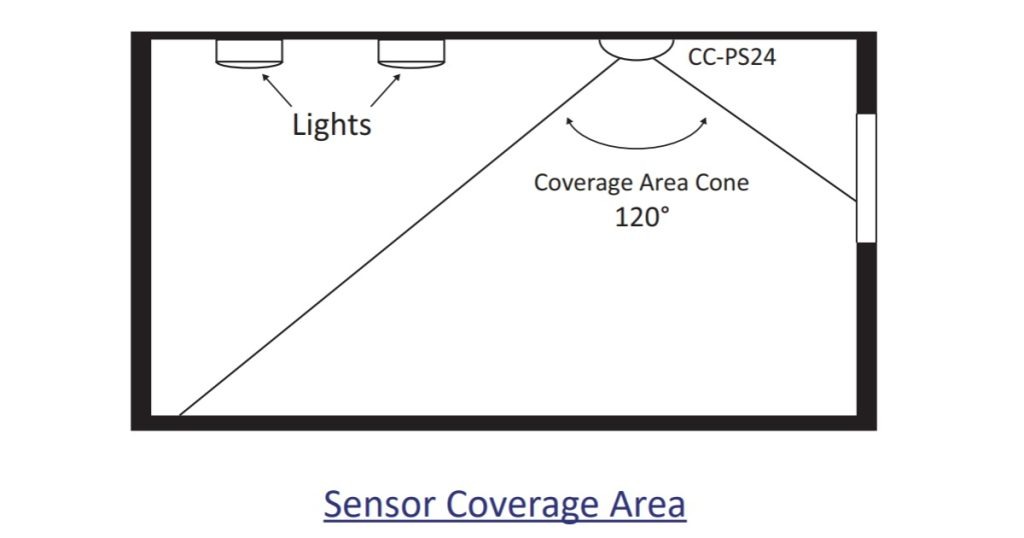

| Detection Area | 120° cone |
| Supply voltage | 24VDC/AC |
| Current Consumption | 22mA Nominal |
| Operating temperature | 32 to 122°F (0 to 50° C) |
| Maximum Humidity | 90% RH Non-condensing |
| Standard | cUL and UL. Listed Title 24 Certified |
