Cooper Lighting: Lumark AP – WPSQ Wall Square
September 8, 2025
WPSQ Wall Square: Exceptional Durability & Long-Term Reliability

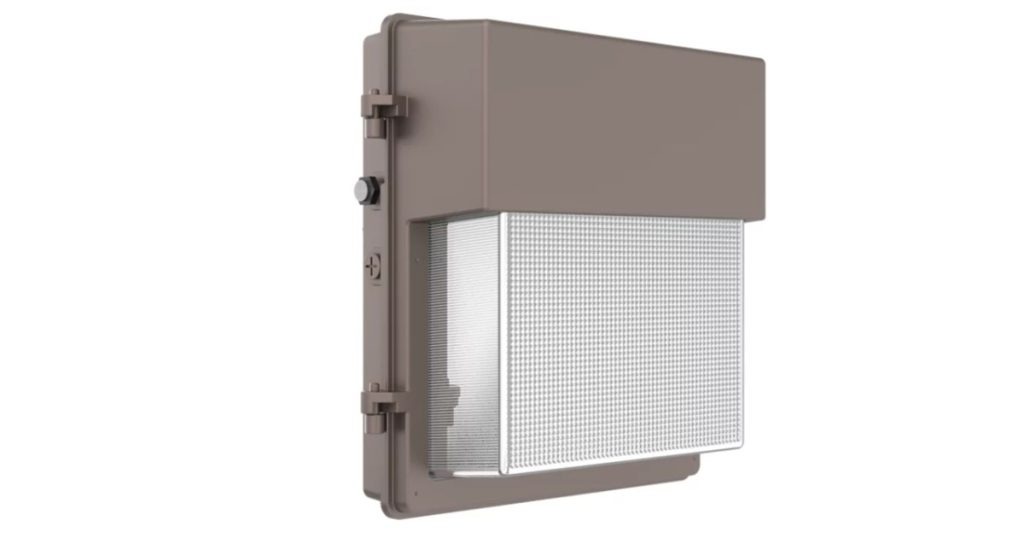

The Lumark AP WPSQ Wall Square luminaire provides traditional square style with high performance, energy efficient illumination, and selectability via 4 field adjustable wattages and 3 CCT options. The WPSQ Wall Square has universal voltage, lumen ranges from 9,200 to 13,700 lumens, and efficacies up to 145 LPW. The rugged, die-cast aluminum construction is IP65 rated and cULus wet location listed for exceptional durability and long-term reliability. The WPSQ Wall Square is ideal for pathway illumination, building entrances, vehicle ramps, schools, tunnels, stairways and loading docks.
Features
- Selectable configuration – 4 Wattages and 3 CCTs
- Lumen packages range from 9,200 – 13,700 lumens
- Universal 120 -347V input voltage range
- Dusk to dawn capability with ON/OFF photocontrol
- Replaces up to 250W HID equivalent
- Efficacies up to 145 lumens per watt
- Energy and Maintenance savings up to 89% versus HID solutions
- Heat and impact resistant borosilicate glass lens
Specifications
Construction

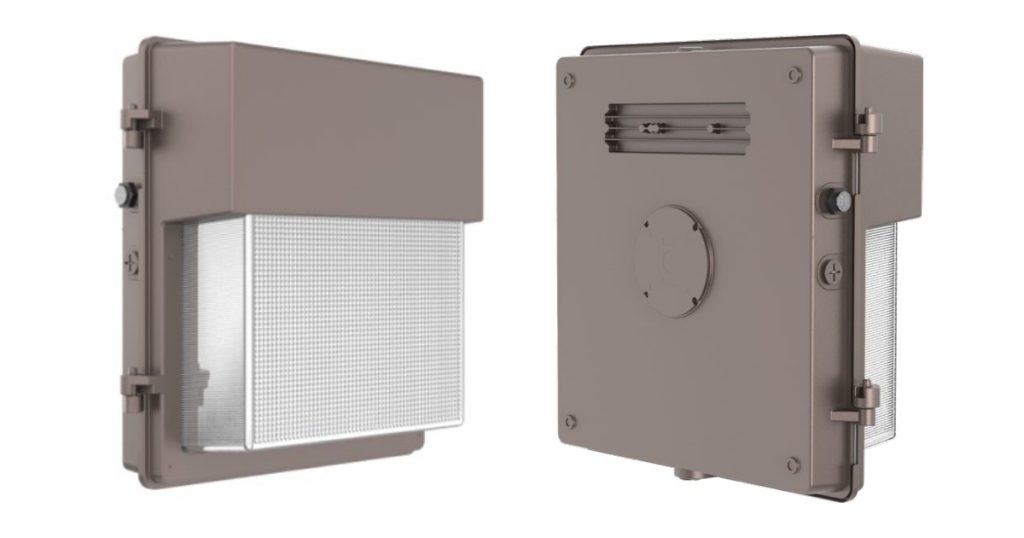

- Die-cast aluminum housing with hinged, removable die-cast aluminum door
- One-piece silicone gasket seals the optical chamber
- Wet location listed and IP65 ingress protection rated
- Five 1/2” threaded conduit entry points allow for thru-branch wiring
Optics
- Highly reflective anodized aluminum reflectors provide high efficiency illumination
- Optical assemblies include impact resistant borosilicate refractive glass
- Light engine is available in standard CCT Selectable (3000K- 4000K-5000K) and CRI 70 Configuration
Electrical
- Universal 120-347V input voltage
- 0-10V dimmable driver
- THD (Total Harmonic Distortion): ≤20%, Power Factor: ≥ 0.9
- Selectable SKU offers 4 wattage selections and 3 CCTs (3000K, 4000K, 5000K)
- Default settings are highest wattage and 4000K CCT
- Operating temperature range: -40°C to +40°C
- Class 2 driver incorporates internal fusing designed to withstand ±10kV surge
Controls
- Internal toggle switches to adjust luminaire CCT and lumens
- Luminaires will ship default at 4000K CCT and maximum lumen output
- An integrated button-type photocontrol for dusk-to-dawn operation
- The photocontrol is also field-adjustable via toggles switches to either enable, disable, or modify the settings
- The photocontrol ships enabled
Finish
- Finished in UV stabilized polyester powder coat paint for superior protection against fade and wear
- Standard color is bronze
Typical Applications
- Outdoor
- Parking lots
- Walkways
- Building Areas
Approvals
- cULus
Warranty
- Five-year limited warranty
WPSQ Wall
