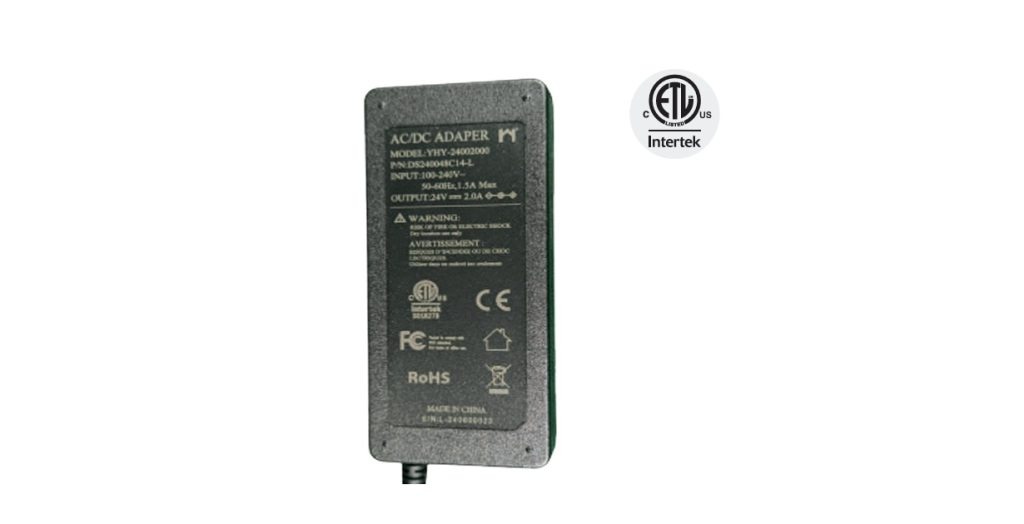

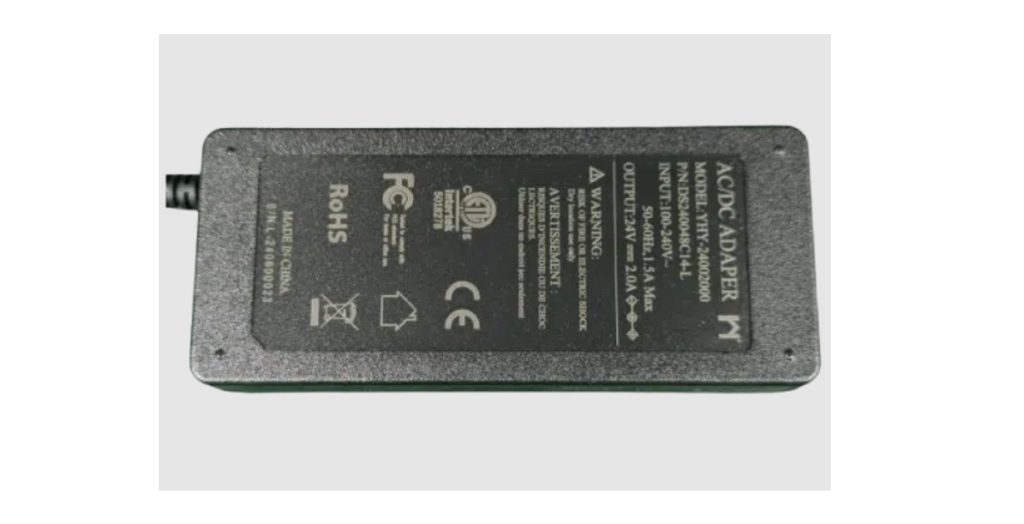

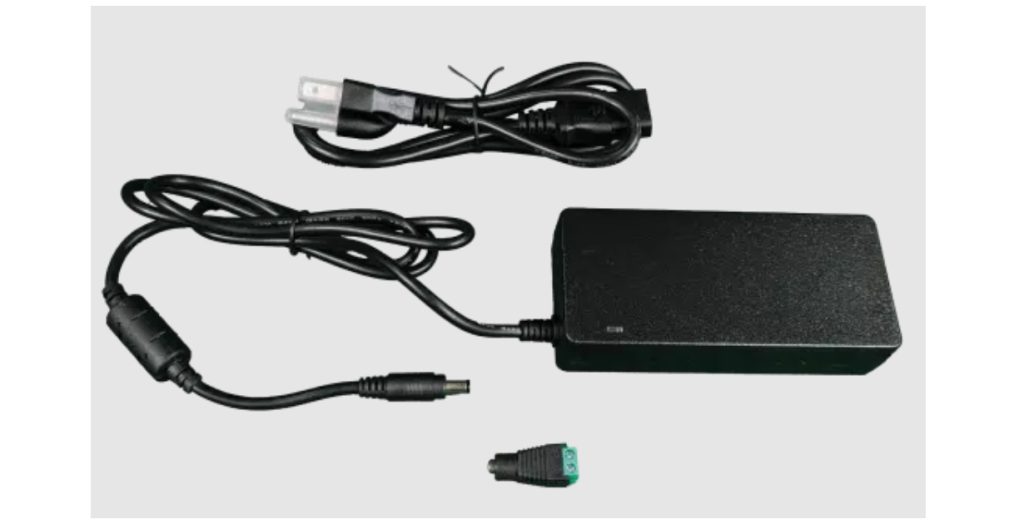

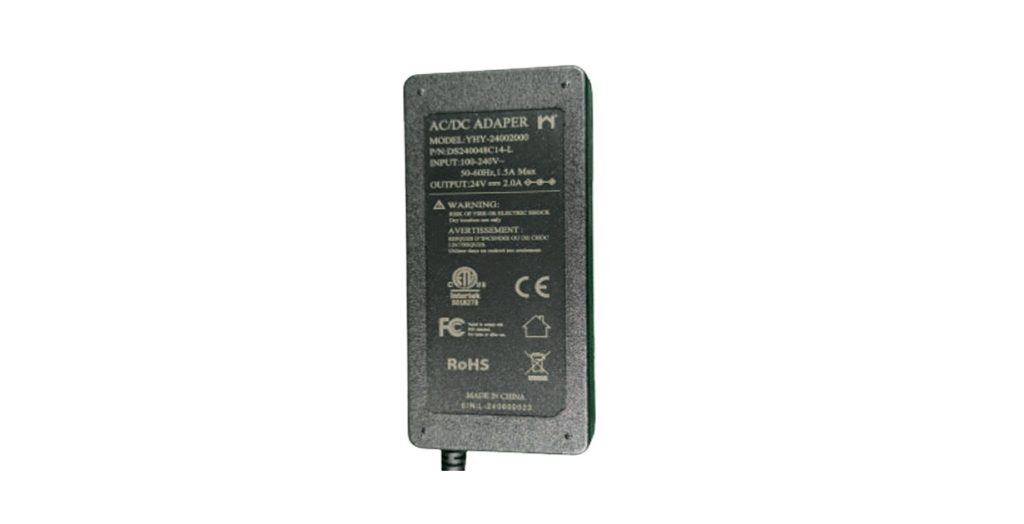

Magic Lite: Plug-In Driver

Oct 1, 2026 - Magic Lite Plug-In Driver

October 1, 2026

Magic Lite’s Plug-In Driver Features Overcurrent & Overvoltage Protection to Enhance Safety & Reliability

Available in 48W and 96W, Magic Lite’s plug-in drivers support a wide voltage range from 100V AC to 240V AC, making them versatile for 24V lighting systems. With a high-power factor of 0.9, they are designed for energy efficiency and reduced power loss. The drivers feature overcurrent and overvoltage protection to enhance safety and reliability.

As RoHS-compliant devices, they adhere to environmental standards by minimizing the use of hazardous materials, ensuring they are a responsible choice for sustainable lighting solutions.


Salient Features

  • Wide Input Voltage Range: Operates efficiently across 100V AC-240V AC, accommodating global power standards.
  • High Power Factor (0.9): Ensures maximum energy efficiency, reducing power loss and optimizing performance.
  • Output Specifications: Delivers stable 24V DC output with voltage limits between 22.8V and 25.2V, providing consistent power for lighting systems.
  • Safety Protections: Equipped with overcurrent protection, short circuit protection (hiccup mode), and overvoltage protection for enhanced operational safety.
  • Compact Design: Dimensions of 140mm x 60mm x 32mm allow for seamless integration into various installations.
  • Environmental Compliance: Meets RoHS standards, ensuring reduced use of hazardous substances.
  • Operating Conditions: Functions effectively within a temperature range of -20°C to 25°C, suitable for diverse environments.

Specifications

Product Code PGID2448PGID2496
ElectricalPower Output48W96W
Rated Voltage Range100V AC to 240V AC
Output Voltage24V DC
SpecsInput Frequency50Hz/60Hz
Input AC Current≤1.5A≤2.0A
Power Factor≥0.9
Output Voltage Limit22.8V – 25.2V
DimmableNo
Protections Overcurrent protection, short circuit, over voltage, and input fuse
Operating Temperature-20°C to 25°C
Connection TypeHardwire
Dimensions 5.51 x 2.36 x 1.26 inches; Tolerance: ±0.039 inches
140 x 60 x 32mm; Tolerance: ±1mm
Approvals cETLus, FCC, RoHS
Warranty 5 years

For more information on Magic Lite solutions HERE

Oct 1, 2026 - Magic Lite Plug-In Driver

Source

Plug-In Driver Plug-In Driver
