EiKO: BAYE4 Round High Bay
October 6, 2026
BAYE4 LED High Bay Luminaire Family: A Smart Choice for Warehouses, Gyms & Industrial Facilities
The EiKO BAYE4 Round High Bay Luminaire delivers powerful, energy-efficient LED illumination for large indoor spaces. Its compact, contractor-friendly design enables fast installation while the durable die-cast housing ensures long-term reliability. Ideal for warehouses, gyms, and industrial facilities, it provides uniform light output with optional 0-10V dimming for flexible lighting control.
Features
- Field-adjustable wattage, CCT, and beam angle, all set via dip switch on site
- Compact and lightweight for a single-person install
- NEMA 4X, NSF, IP65, IK08 rated for demanding environments
- Controls-ready for occupancy and daylight sensors
- Available in 120-347V and 277-480V
Specifications
Intended Use
- Ideal replacement for conventional HID and Fluorescent high bay fixtures, providing energy-efficient LED lighting for large indoor spaces.
Construction & Installation
- Robust die-cast aluminum housing with durable IK08 impact resistant PC lens

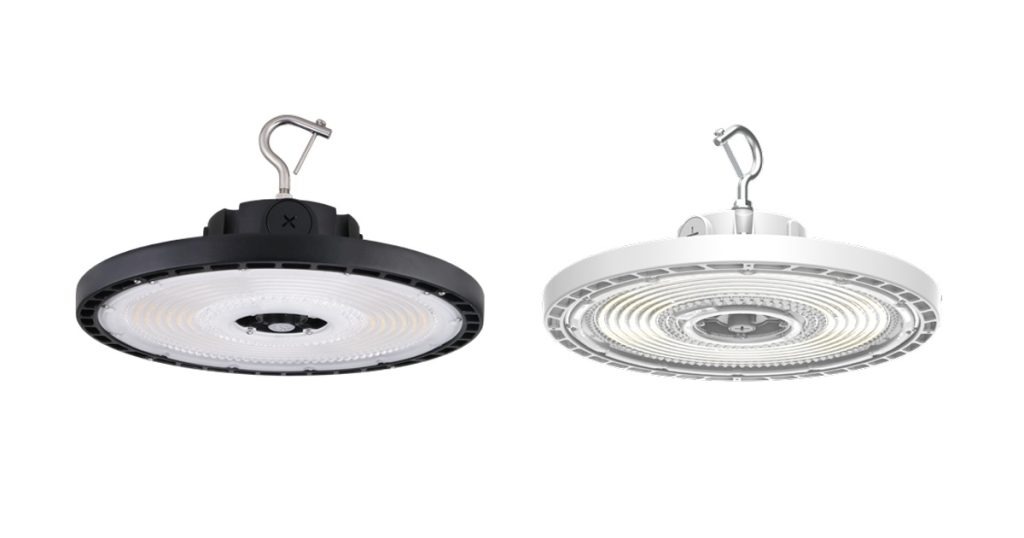

- Available in matte black or white powder coat paint finish
- Multiple Mounting Options available:
- Default hook mount
- Optional yoke for surface mounting; pipe Adaptor M10 to 3/4” for pendant mounting
- Prismatic reflectors, cone lens, aluminum reflectors, optional accessories available for focused light distribution.
- Wire Guard options for each size available for added security
- Sensor receptacle with cover to allow easy field installation of sensors
Electrical
- PowerSET: Three-step power settings for field-adjustable light output via dip switch
- Input Voltage: 120-347V, 277-480V; 50/60 Hz
- Dimming: 0-10V
- Power Factor: >0.9, THD: <20%
- Surge Protection: 6kV in-built
- Cord Options: default 6ft power and dimming cord or factory installed cord end options
Optical
- ColorSET: Field-adjustable color temperature via dip switch (3500K/4000K/5000K)
- OpticSET: Field-adjustable light distributions (60°/90°)
- Lumen output: Up to 48,000 lm
- CRI: 80+
- Rated Life: up to L70/100,000 hours at 25°C.
Environmental
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Suitable for dry, damp and wet environments
Other
- UL certified for both Canada and the US
- Factory-installed options:
- Cord-end
Warranty
- 5 Year limited warranty available online. Contact your EiKO sales rep for additional details.
View BAYE4 Spec Sheet HERE
For more information on EiKO lighting solutions HERE
View original LinkedIn product post HERE
BAYE4
