Liteline: New LUNA Multi Downlight
October 1, 2026
Liteline’s LUNA Multi: Hard, Restrictive Ceilings Have Just Met Their Match

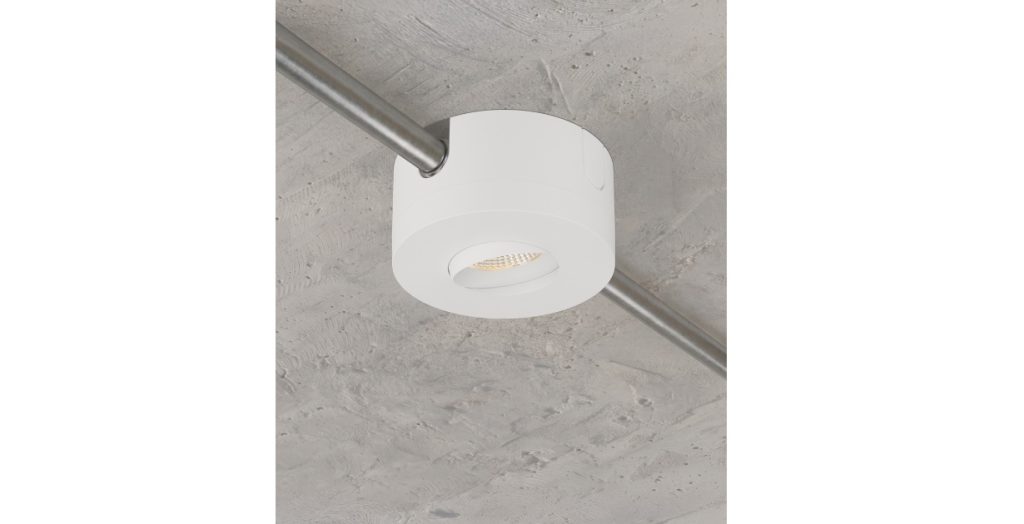

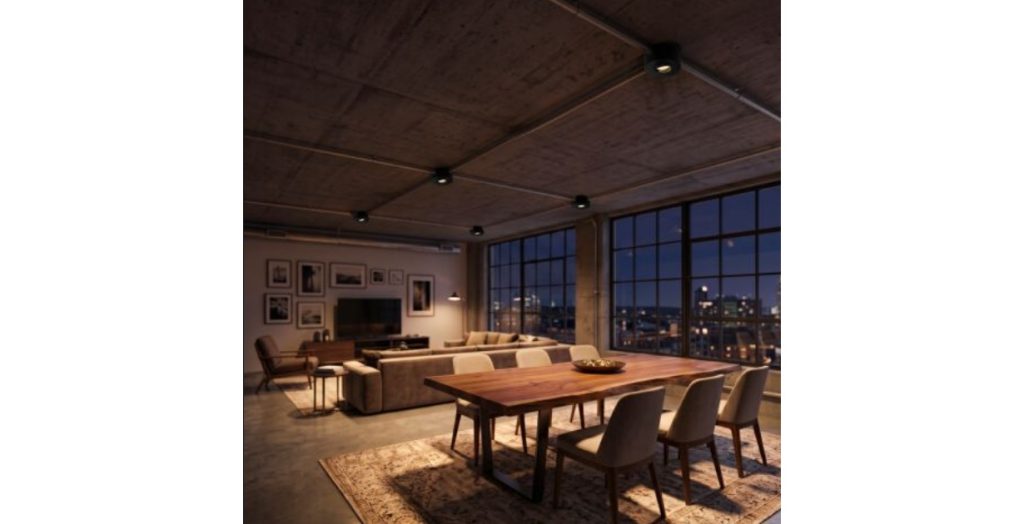

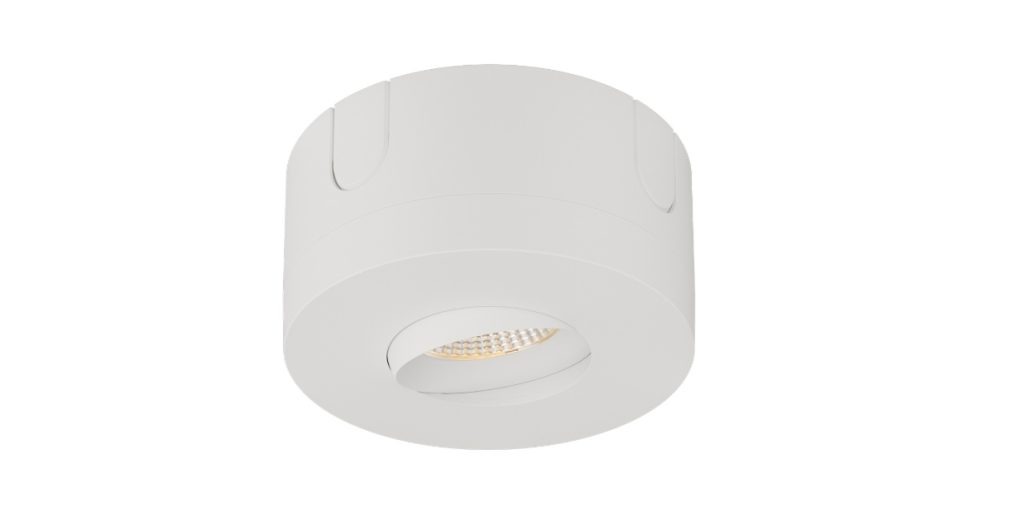

Meet the LUNA Multi, the newest addition to the LUNA family. This adjustable fixture is designed to mount directly into a standard 4″ JBOX, so you can recess it for a clean, flush finish or add the optional fire-rated collar to cover the box and conceal the conduit entry. This lets you carry the LUNA family throughout your projects with the same cohesive look and consistent performance. Accent details and direct light where it’s needed with a 36° tilt and 40° beam spread for greater control and placement. From multi-family residential spaces to renovations and retrofits, the LUNA Multi makes sure no ceiling holds back your design.
Features

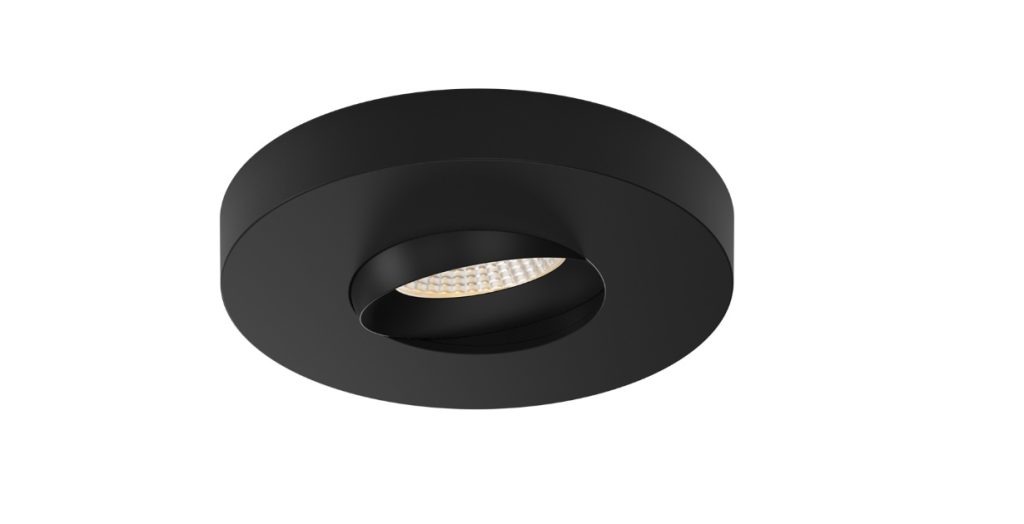

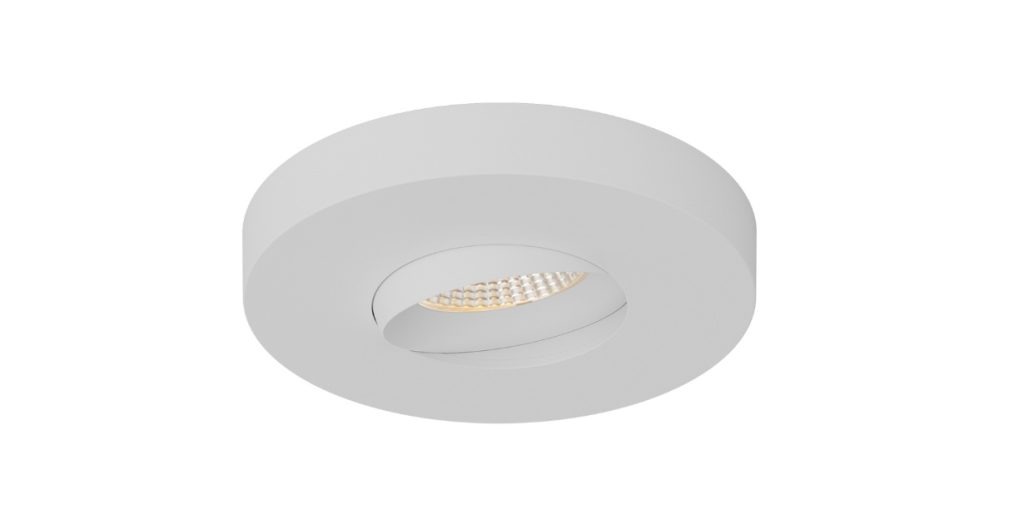

- Body: Durable aluminum body with 36° (18° per side) adjustable gimbal.
- LED Characteristics: This general application light fixture features a 10-watt LED module that maintains uniform intensity producing up to 900 lumens; with a typical CRI of 90. On-fixture color selectable switch with a CCT range of 2700 K ~ 5000 K color temperatures.
- Dimming: 100%-1% dimming capability. This fixture is compatible with industry standard TRIAC/ELV dimmers. For compatible dimmers, visit www.liteline. com/LUNAMULTI.
- Beam Spread: The fixture lens provides 40° beam spread.

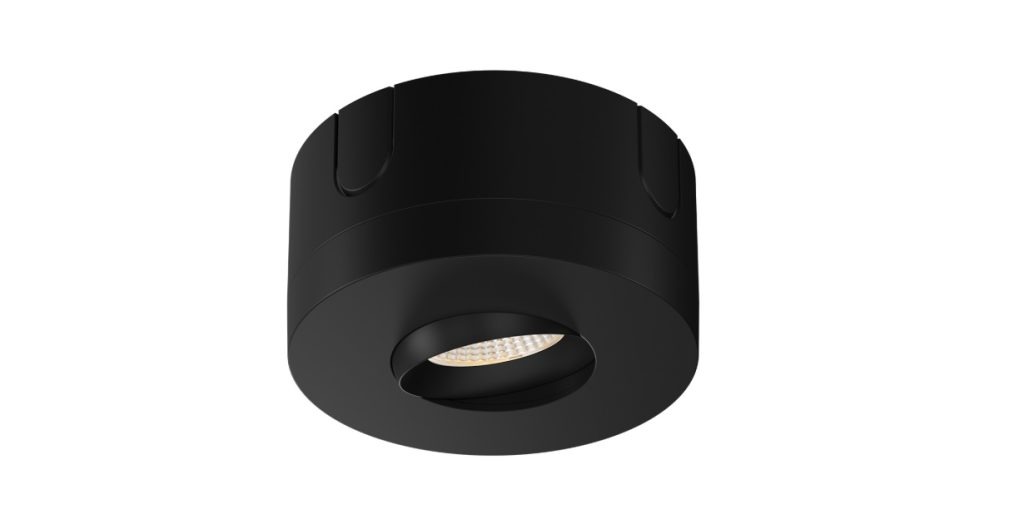

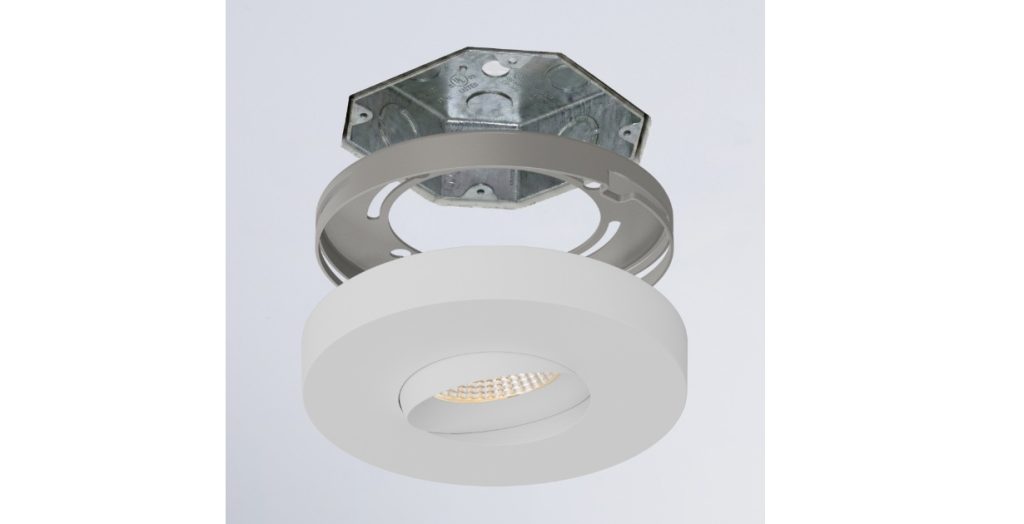

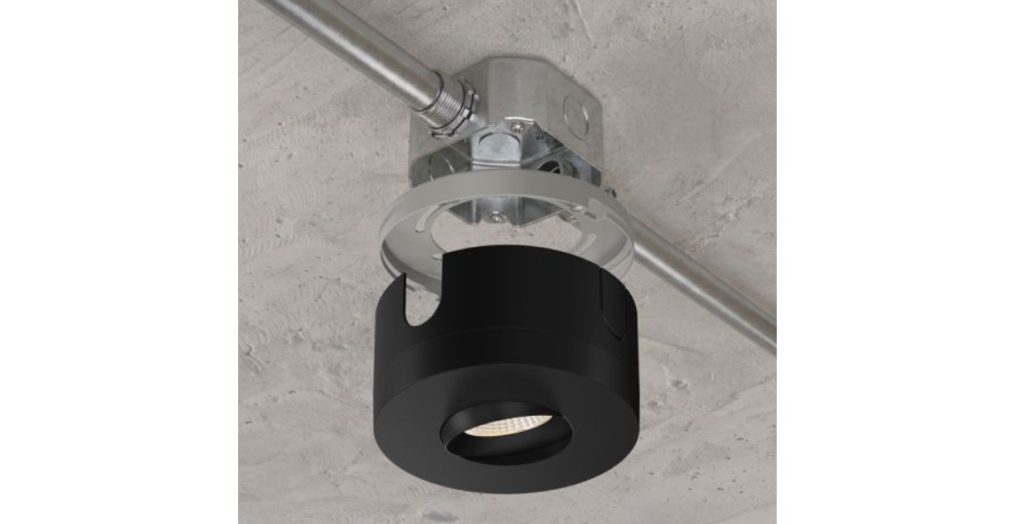

- Mounting: Includes a mounting bracket to attach to an industry standard 4″ octagon boxes with minimum depth of 1.5″ (38mm) via mounting holes. Surface mount collar for surface mount junction boxes available (sold separately).
- LED Driver: Built-in on-board driver with 100-135V AC input.
- Quick Connect Push-in Terminals: Three “Quick connect” push-in terminals for fast and easy wiring.
- Operating Temperature: -25°C~40°C (-13°F~104°F)
- Environment:
- Suitable for wet locations (excluding when used with surface mount collar)
- Indoor / Outdoor rated
- Fire-rated when used in a steel octagon box
Specifications
- Application: Ceiling Recess Mount
- Approved Location: Wet
- Beam Angle: 40°
- CCT (Color Selectable): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
- Certification: cETLus
- Class II: Yes
- Colour: BK / WH
- CRI: 90
- Dimming: Yes
- Dimming Tech: TRIAC/ELV
- Energy Star: Yes
- Input: 100-135V AC, 60Hz
- LM79: Yes
- LM80: Yes
- Lumens: Up to 900
- Lumens per Watt: Up to 89
- Luminaire Tilt: 36° (18° per side)
- Power Factor: 0.9
- Projected Life: 70% @ 50,000 hrs
- Title 24: Yes
- Warranty: Lifetime
- Wattage: 10W
