SATCO|NUVO: LED Washdown Round High Bays – IP69K | Field Selectable

April 23, 2026 - SATCONUVO LED Washdown Round Highbay- IP69K Field Selectable - UFO High Bays

April 23, 2026

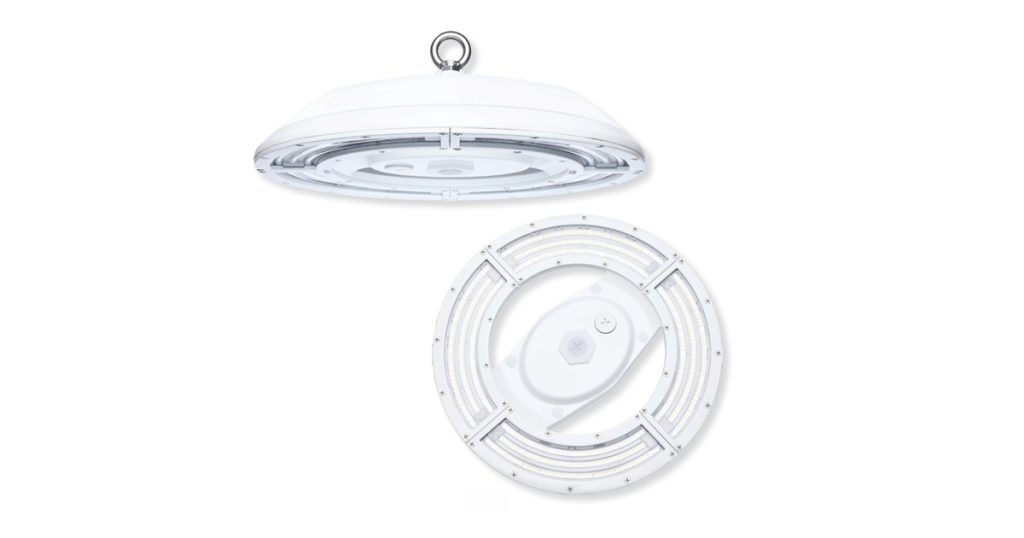

LED Washdown Round UFO High Bays Provide a Dependable Solution for Facilities Requiring both Performance & Sanitation Compliance

SATCO|NUVO’s IP69K Rated LED UFO High Bays are engineered for demanding industrial and hygienic environments where fixtures must withstand high-pressure, high-temperature wash-down procedures. NSF approved and built for food processing, agricultural, and other sanitation-sensitive applications, these fixtures combine rugged durability with field-selectable performance. Wattage selectability (200W/150W/100W) and CCT selectability (4000K/5000K) allow light levels and color temperature to be customized at installation.

Designed for harsh conditions, these LED UFO High Bays operate from -40°C to 50°C and include 6kV surge protection, IK10 impact resistance, and an integrated respirator for enhanced durability. The fixtures are 0–10V dimmable and sensor ready with a 3.5mm auxiliary port, maintaining their IP69K rating when the port is sealed. A 6-foot Class 1 whip with waterproof connector and gasketed controls preserve protective integrity, providing a dependable solution for facilities that require both performance and sanitation compliance.

  • April 23, 2026 - SATCONUVO LED Washdown Round Highbay- IP69K Field Selectable

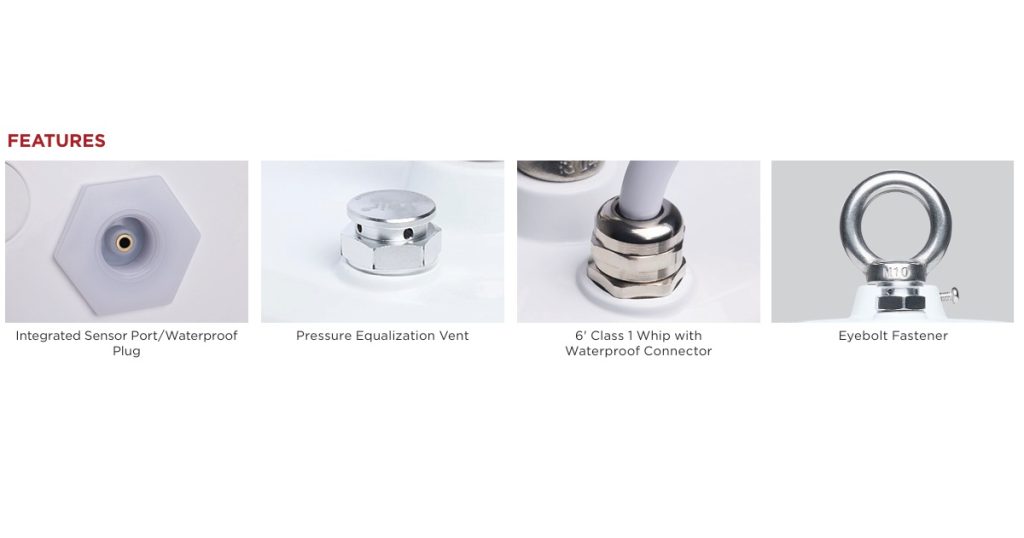

Features

  • Thermal Washdown
  • IP69K Rated and NSF Approved
  • Field Selectable: 3 Wattage & 2 CCT Selectable Options
  • Integrated Sensor Port – 3.5mm AUX
  • 120-277V & 277-480V Models

Applications

  • Agriculture and Farm Buildings
  • Food Processing Plants
  • Commercial Kitchens
  • Industrial Manufacturing Facilities
  • Storage Unit Facilities

Specifications

  • Frequency: 50/60Hz
  • Power Factor: >0.9
  • THD: <20%
  • Dimmable: 0-10V Dimmable
  • Surge Protection Rating: 6kV
  • Efficacy: Up to 150 LPW
  • CRI: 80
  • CCT Selectable: 4000K/5000K
  • Beam Angle: 85°
  • Location Rating: Wet
  • IP Rating: IP69K *Adding Sensor Alters Rating
  • IK Rating: IK10
  • NSF Approved: Yes
  • Ambient Operating Temperature: -40°C (-40°F) to +50°C (+122°F)
  • Housing Material: Die-Cast Aluminum
  • Lens Material: Polycarbonate (PC)
  • Finish: White
  • Mounting Options: Ceiling: Loop/Hook/NPT Adapter
  • Power Cord: 6′ Class-1 Whip with Waterproof Connector
  • Functional Life: 50,000 Hours
  • Approvals: cULus
  • Warranty: 5-Years

For more information on Satco Nuvo lighting solutions HERE

April 23, 2026 - SATCONUVO LED Washdown Round Highbay- IP69K Field Selectable - UFO High Bays

Source
