SATCO|NUVO: LED Fire Rated Slimfit Downlights

Jan 21, 2026 - SATCONUVO LED Fire Rated Slimfit Downlights

January 21, 2026

New LED Fire Rated Slimfit Downlights from SATCO Offer Consistent, High-Quality Illumination with Integrated Fire-Safety Performance

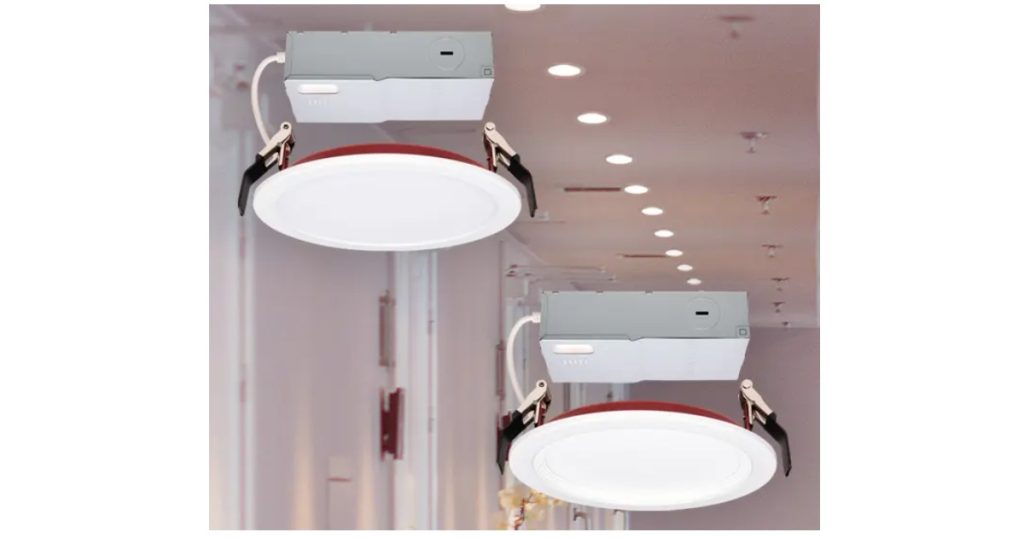

SATCO|NUVO’s LED Fire Rated Slimfit Recessed Downlights are engineered for use in fire-resistant ceiling construction and are certified for 2-hour fire protection when installed in most floor-ceiling assemblies, including UL Designs L505, L511, L536, L538, L541, L556, L577, M500, M510, M521, and M543. These low-profile luminaires feature a slim housing compatible with fire-rated ceiling assemblies up to 2 3/8″ thick, along with a red-painted back housing for rapid identification during inspections. Designed to deliver consistent, high-quality illumination with integrated fire-safety performance, these downlights support residential, multi-family, and commercial installations.

Jan 21, 2026 - SATCONUVO LED Fire Rated Slimfit Downlights

Features

  • Fire Rated Up to 2 Hours
  • Red Painted Backplate for Easy Identification
  • 120V & 120V-277V Models Available
  • NEC Compliant Junction Box

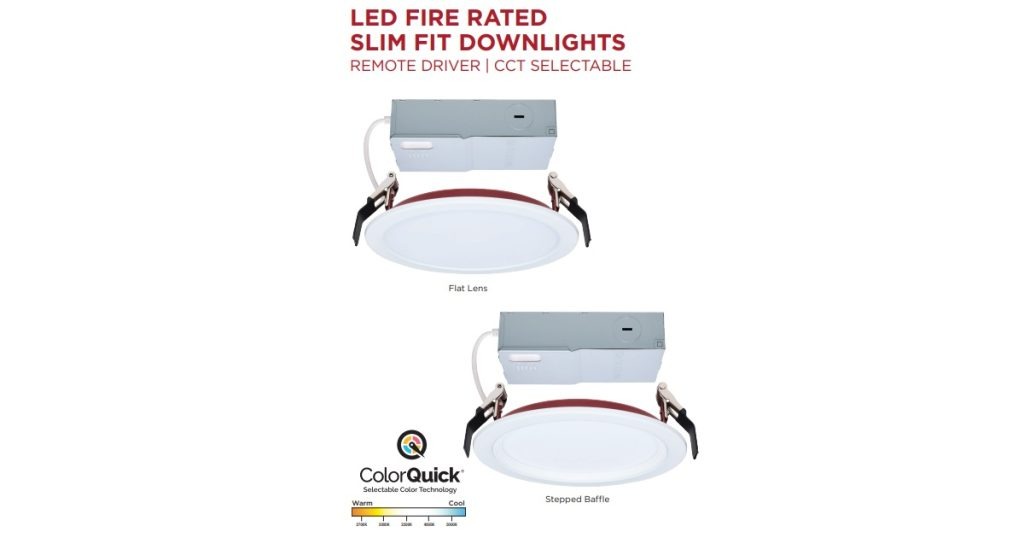

  • Flat Lens & Stepped Baffle Trims Available In 4″ & 6″ Configurations

Applications

  • Residential
  • Multi-Family
  • Commercial
  • Hospitality
  • Offices

Specifications

  • Power Factor: >0.9
  • THD: <20%
  • Dimmable: Down to 10%
  • Efficacy: Up to 84 LPW
  • CRI: 90+
  • CCT Selectable: 2700K/3000K/3500K/4000K/5000K
  • Beam Angle: 110°
  • Ambient Operating Temperature: -20°C (-4°F) to +40°C (+104°F)
  • Location Rating: Wet
  • 2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07
  • Suitable for Bathroom Applications: Yes
  • IC Rated: Yes
  • Airtight: Yes
  • Back Plate Color: Red
  • Trim Finish: White
  • Construction: Steel
  • Lens Construction: Frosted Polycarbonate
  • Functional Life: 50,000 Hours
  • Approvals: cULus
  • Warranty: 5 Years

For more information on SATCO|NUVO lighting solutions HERE
