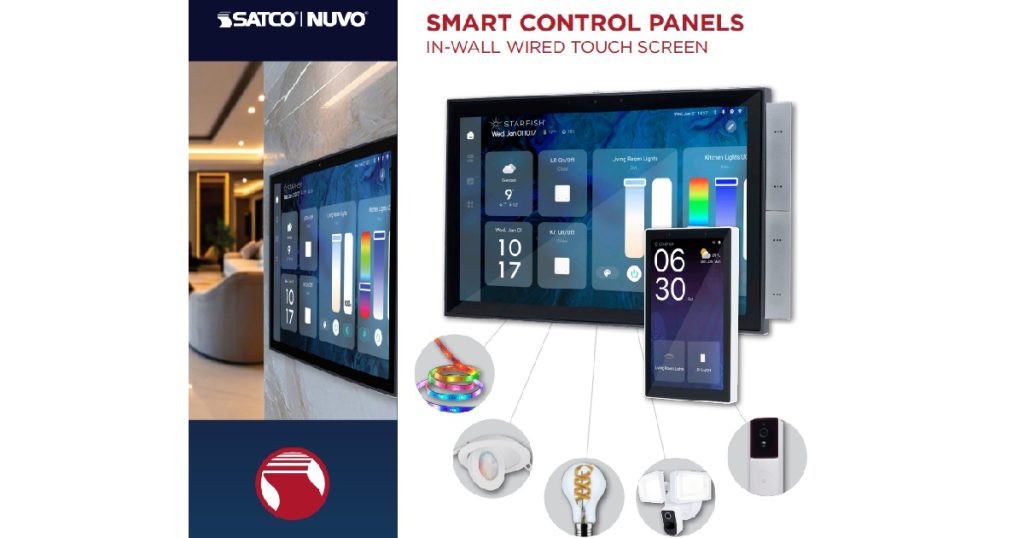

New Smart Control Panels: All-In-One Control for Your Connected STARFISH Ecosystem

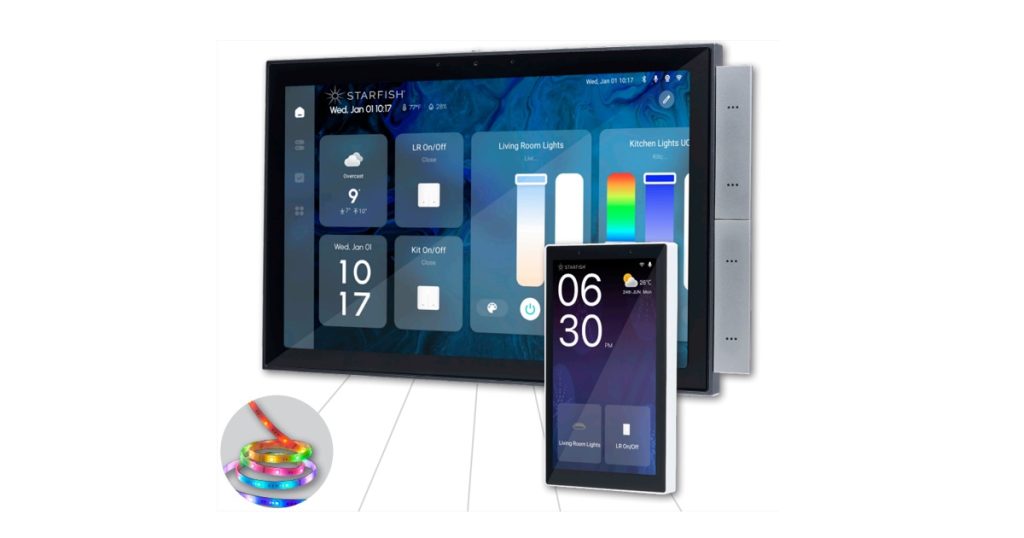

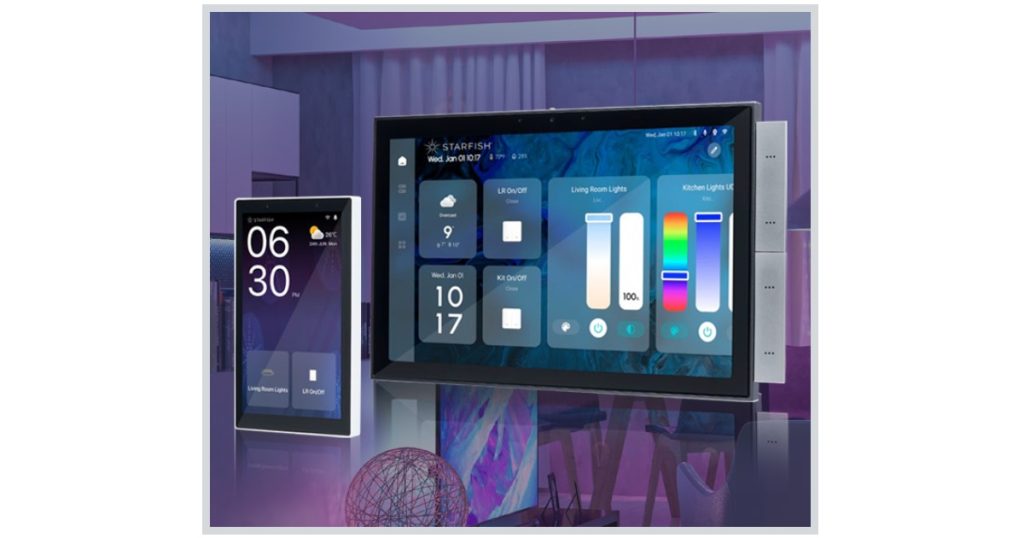

Upgrade from smart products to having a smart home with the addition of SATCO|NUVO’s Smart Control Panels with STARFISH technology. Sleek panels are available in 5″ for a single-gang installation or in 10″ for 1-gang to 4-gang installation; easily integrating into your existing electrical system.

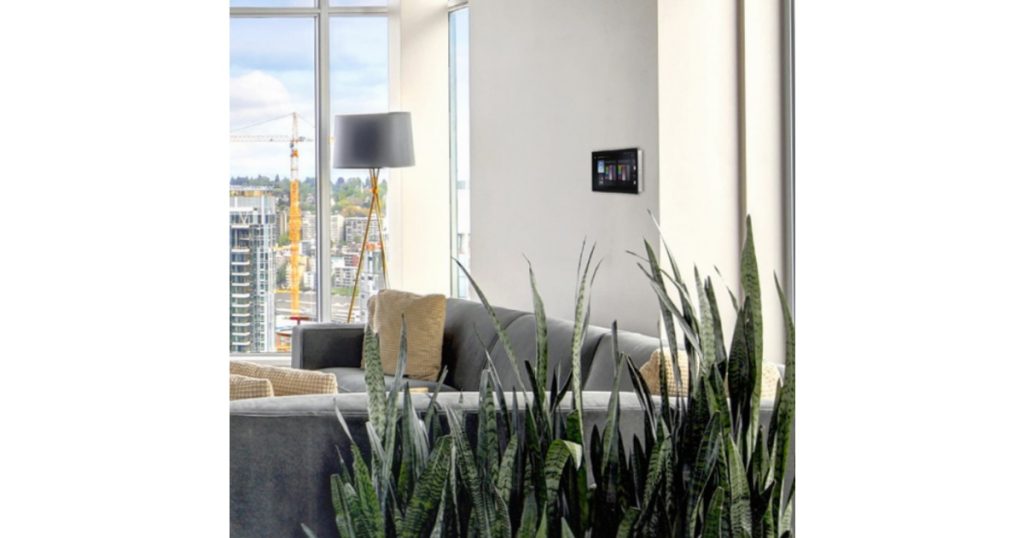

STARFISH Control Panels can become the command center of your home to control all smart lighting, view live and recorded events from your doorbell and security cameras, use as intercoms, and have an easy view of the time, date, weather and humidity conditions. Although controlling STARFISH products from your mobile device is convenient, this makes it easy for guests, relatives, and kids to adjust the ambiance of their space from one central location without having full access to the app.

Features

  • Command Center For Your Home Or Business
  • Replaces Existing Single Through Four Gang Wall Switch
  • Control Lighting, Music, Scenes, and View Cameras
  • Over-The-Air Updates for Latest Features

Applications

  • Residential
  • Multifamily
  • Offices
  • Retail
  • Hospitality
  • Showrooms

Specifications

  • Input: 100-240V, 50/60 Hz
  • Operating Temperature: 32°F – 104°F (0°C – 40°C)
  • Operating Humidity: 5% – 90% RH (non-condensing)
  • Line Outputs: 2
  • Max Load: 200W per output/load
  • Wiring: Live and Neutral Required; Ethernet Optional
  • Wireless Protocols: WiFi, Bluetooth, Sigmesh, Zigbee
  • Sensors: Proximity, Ambient Light, Temperature, Humidity
  • Voice Control: Alexa Built-In
  • Warranty: 1 Year
