Dals: Moda RC04-CC – 4” Modular Recessed

Nov 6, 2025 - Dals Moda RC04-CC - 4” Modular Recessed

November 6, 2025

RC04-CC – 4” Modular Recessed: An Ideal Choice for Commercial & Residential Spaces

Dals Moda family RC04-CC – 4” Modular Recessed fixture is a versatile recessed lighting solution available in three-, four-, and six-inch sizes, featuring customizable finishes, trims, lenses, and reflectors, with options for standard, sloped ceiling, and trimless installations, all with multi-voltage compatibility. Perfect for commercial or residential spaces, with 288 possibilities!

  • Nov 6, 2025 - Dals Moda RC04-CC - 4” Modular Recessed
  • Nov 6, 2025 - Dals Moda RC04-CC - 4” Modular Recessed
  • Nov 6, 2025 - Dals Moda RC04-CC - 4” Modular Recessed
  • Nov 6, 2025 - Dals Moda RC04-CC - 4” Modular Recessed
  • Nov 6, 2025 - Dals Moda RC04-CC - 4” Modular Recessed
  • Nov 6, 2025 - Dals Moda RC04-CC - 4” Modular Recessed

Features

  • Regressed, Slope ceiling and Trimless options

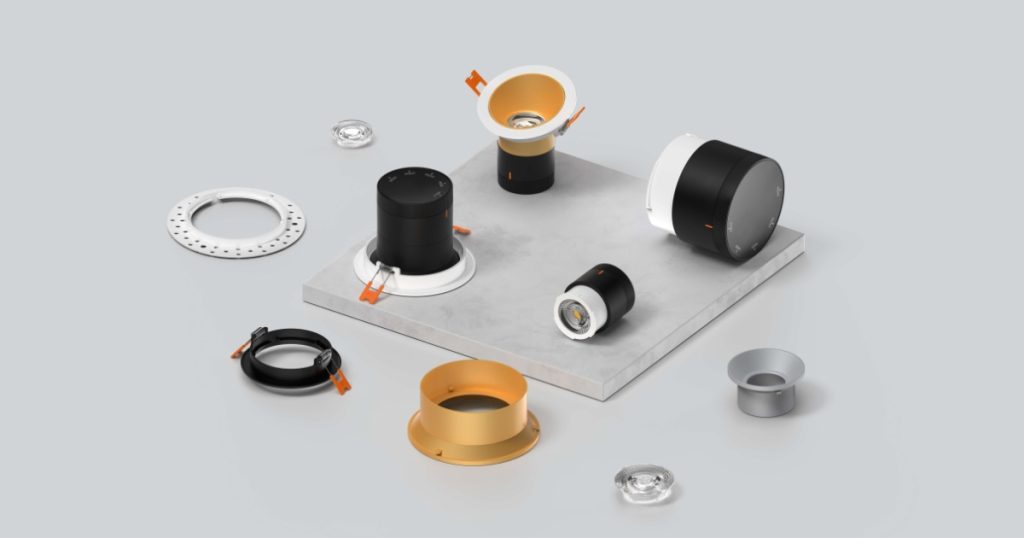

  • Customizable trims and reflector shapes and colours

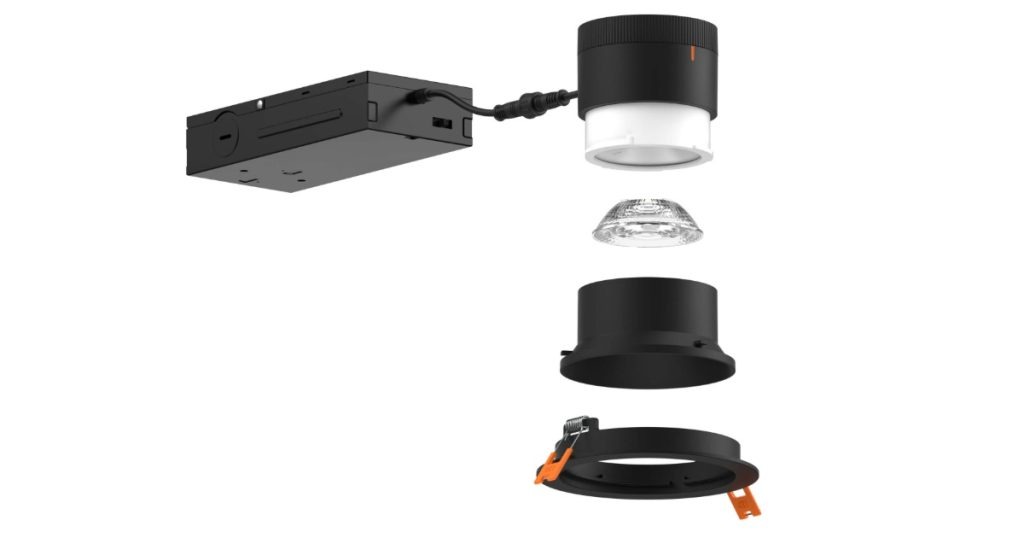

  • Every fixture includes a junction box with an integrated dimmable driver
  • Multi-watt output allows you to choose from three wattage settings for customizable brightness directly on the jbox
  • Can be daisy-chained
  • Aluminum construction

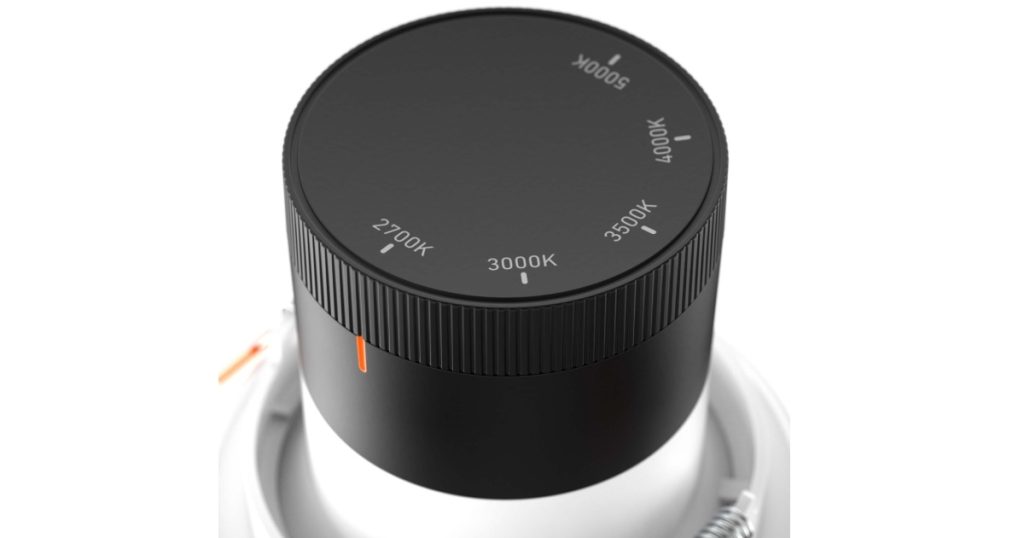

  • Rotary dial CCT switch
  • 20°, 35°, or 60° beam angles included
  • cETLus
  • 5-year warranty

Specifications

Watts16 / 20 / 24 W
Delivered Lumen2200lm
CRI90
Colour Temperature2700K, 3000K, 3500K, 4000K, 5000K, 5CCT
Voltage120 V, 277 V, 347 V
Multi-Voltage Dimming0-10 V, ELV, Triac

For more information on the RC04-CC – 4” Modular Recessed HERE
