Liteline: Sirius – Linear 5-Cell Fixed Recessed Downlight

July 2, 2025 - Liteline Sirius - Linear 5-Cell Fixed Recessed Downlight

July 2, 2025

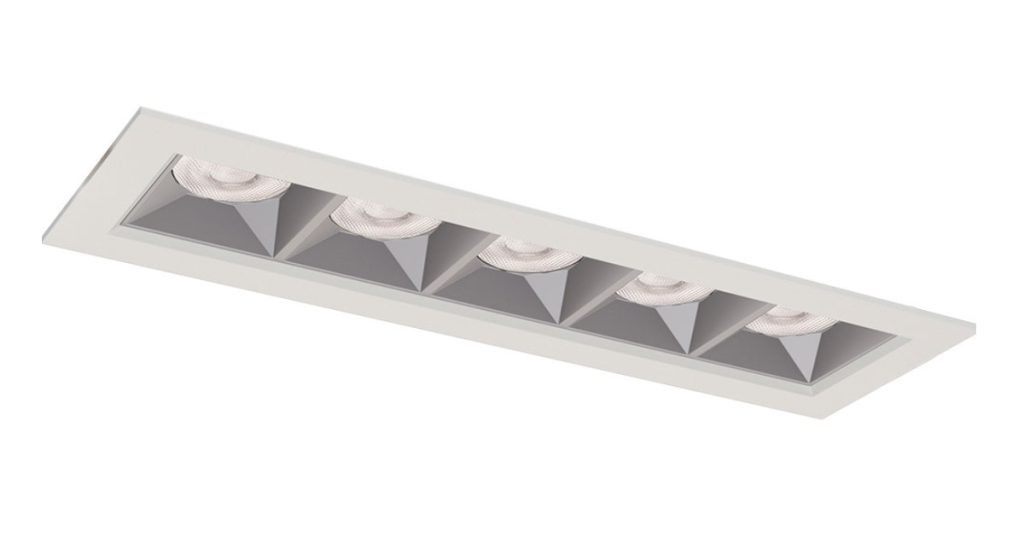

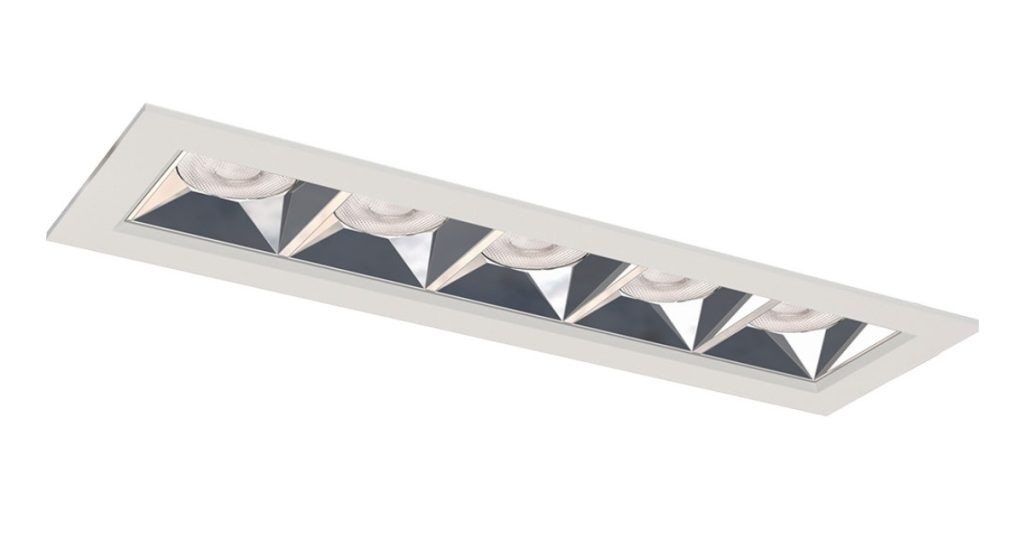

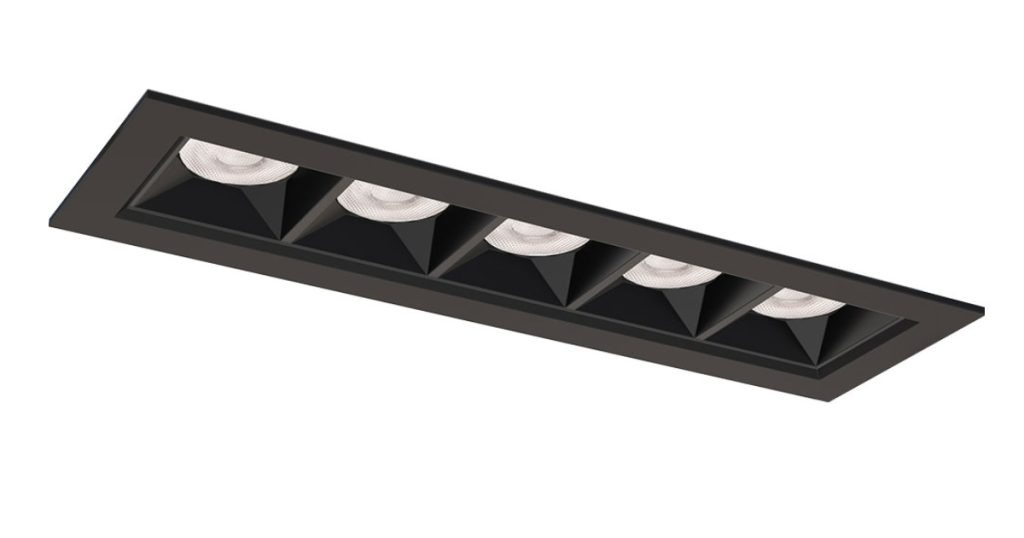

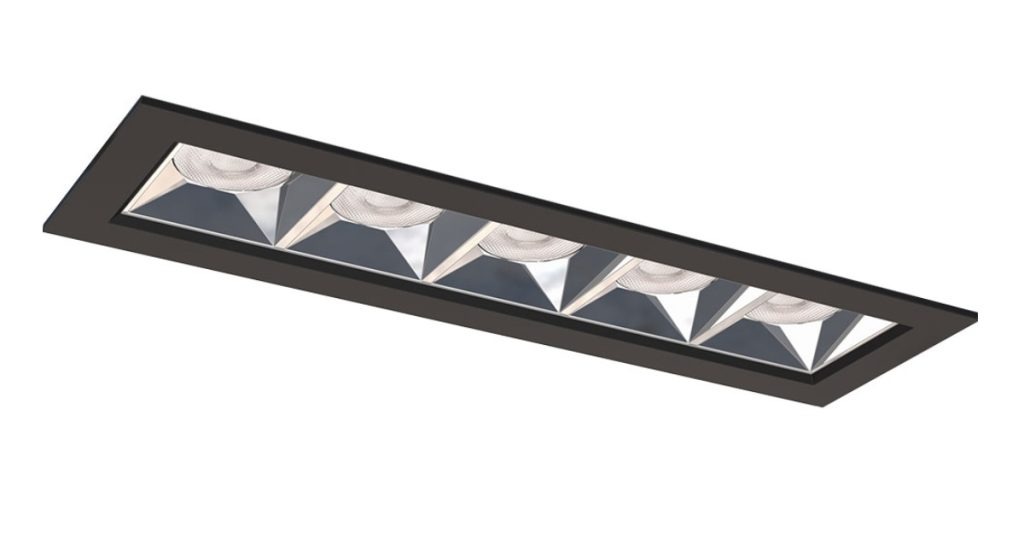

Discover the New Sirius Linear 5-Cell Fixed Recessed Downlight

Sirius is a 5-cell multi-source downlight, designed to excel in providing excellent light output with up to 1600 lumens delivered. The linear design compliments any contemporary space, with beam angle options ranging from 15°-50°. The color temperature can be selected on-site to best suit the space, with a switch located on the back of the fixture. Sirius is a high-performance, easy to install downlight solution that is suitable for damp locations and ideal for residential and commercial spaces.

July 2, 2025 - Liteline Sirius - Linear 5-Cell Fixed Recessed Downlight

Features

Body

  • Die-cast aluminum body. Includes anodized heat sink to provide maximum airflow for the LED light source

LED Characteristics

  • This general application light fixture is available in 7, 9-, 12-, 16- and 20-watt LED module that maintains uniform intensity producing up to 1600 lumens
  • Typical CRI of 90
  • Available with 2700 K, 3000 K, 3500 K, 4000 K or 5000 K color selectable switch

Dimming

  • 100~10% dimming capability
  • This fixture is compatible with industry standard TRIAC/ELV dimmers

Beam Spread

  • The fixture lens provides 15°, 25°, 40° or 50° beam spread

Mounting

  • Includes two spring loaded clips to attach to any ceiling material

LED Driver

  • Extruded aluminum hardwire box with LED driver with 100-135V AC input
  • Includes an FT6 rated cable and DC2.1 connector between driver and fixture approved for use in plenums and suspended ceilings

Quick Connect Push-in Terminals

Three “Quick connect” push-in terminals for fast and easy wiring

Operating Temperature

  • -20°C~40°C (4°F~104°F)

Environment

  • Suitable for damp locations
  • Approved for direct contact with insulation

Specifications

  • Application: Ceiling Recess Mount
  • Approved: Location Damp
  • Beam Angle: 15° / 25° / 40° / 50°
  • CCT (Switch): 2700 K / 3000 K / 3500 K / 4000 K / 5000 K
  • Certification: cETLus
  • Class II: Yes
  • Trim Color: WH / BK
  • Baffle Color: WH / BK / SS / SP / GD
  • CRI: 90
  • Dimming: Yes
  • Dimming Tech: TRIAC / ELV
  • Energy Star: Yes (Up to 16W)
  • Hole Cut: 7¾ ” × 2″ (197×50mm)
  • Input: 100-135V AC, 50 / 60Hz
  • LM79: Yes
  • LM80: Yes
  • Lumens: Up to 1600
  • Lumens Per Watt: Up to 95
  • Lumen Maintenance: 70% @ 50,000 hrs
  • Power Factor: 0.98
  • Warranty: 5 Years
  • Wattage: 7 / 9 / 12 / 16 / 20
Liteline Sirius - Linear 5-Cell Fixed Recessed Downlight

Source

Sirius
