LEDVANCE: Jelly Jar Light, Hazardous Location – HAZ JJAR 020 UNH D 8 30 CSL GR

March 19, 2026 - LEDVANCE Jelly Jar Light, Hazardous Location - HAZ JJAR 020 UNH D 8 30 CSL GR

March 19, 2026

HAZ JJAR 020 UNH D 8 30 CSL GR: Hazardous Location Jelly Jar Light Designed for Durability & Safety in Demanding Environments

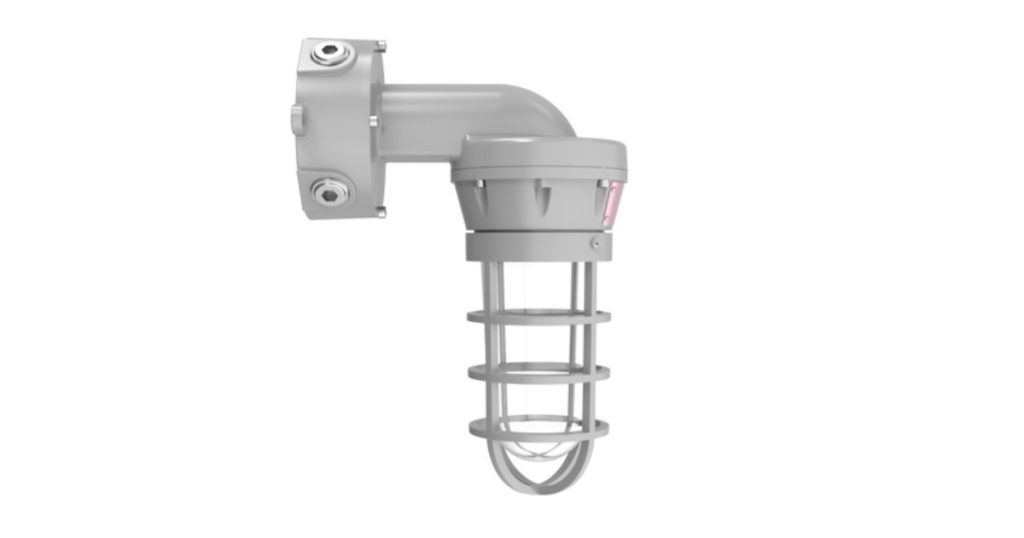

Designed for durability and safety in demanding environments, the LEDVANCE Jelly Jar Hazardous Location light features a compact structure with a robust metal guard. It supports multiple installation options to suit a variety of industrial and hazardous location applications and is an ideal choice for areas requiring reliable, rugged illumination.


Features

  • Explosion-Proof Construction: Prevents ignition of gases, vapors, or dust
  • Certified for Hazardous Areas: UL844 and CSA 22.2 No. 137 compliant
  • Copper-free aluminum housing resists corrosion and cools in harsh conditions
  • Multiple Mounting Options: easily adapts to various installations and upgrades
  • Tempered glass lens for superior heat resistance
  • Shock and vibration resistance with IK08
  • 20W | 2200 lumens
  • 3000K or 5000K
  • IP66

Applications

  • Power Plants
  • Heavy Industrial Sites
  • Loading Docks
  • Chemical Processing Facilities

Specifications

Electrical Data

Nominal Wattage20.00 W
Nominal Voltage120.00…347.00 V
Power Factor≥ 0.90
Total Harmonic Distortion< 20 %

Photometrical Data

Lumens2000 lm
Efficacy100 lm/W
Color Temperature/CCT3000 K
Color Rendering Index (CRI)80

Dimensions & Weight

Diameter5 in
Height6.5 in
Product Weight5.95 lb

Materials & Colors

Luminaire FinishGray
Housing ColorGray
HousingAluminum
Mercury Content0.0 mg

Application & Mounting

Ambient Temperature Range-20…40 °C
Maximum Operating Temperature104 °F
Minimum Operating Temperature-4 °F
DimmingYes
Type of Dimming0-10V
MountingSurface
Indoor/OutdoorOutdoor
Replaceable Light SourceNo
Primary Lamp TypeSMD

Lifespan

Average Rated Life (hr)10000

Certificates & Standards

Certification ListingcULus, RoHS, FCC
Replaceable Light Source (EPREL)Not replaceable

Additional Product Data

Ordering AbbreviationHAZJJAR/P020UNHD830/CSL/GR
Abbrev. With Packaging Info.HAZJJARP020UNHD830CSLGR 1/CS 1/SKU
Family Brand NamePERFORMANCE CLASS
General DescriptionHAZARDOUS JELLY JAR, PERFORMANCE CLASS, 20W, 120-347V, 0-10V DIMMING, 80 CRI, 3000K, Clear short lens + wire guard, GRAY
Warranty5 years

For more information on the LEDVANCE Jelly Jar Hazardous Location light HERE

For more information on LEDVANCE lighting solutions HERE
