JDRF Electromag: Autonomy Sensor – Smart Lighting

JDRF Electromag: Autonomy Sensor - Smart Lighting

April 25, 2025

Discover the Dynamic Functionality of the Autonomy Sensor

The Autonomy Sensor is an integrated control and management device that self-organizes, configures, and optimizes an advanced Smart Lighting System. A set of Autonomy Sensors collaborate to provision a secure wireless mesh network, establish Area membership based on physical co-location, and configure motion and daylight groups through the analysis of motion patterns and daylight distribution levels, respectively. No setup or human supervision is required.


Self-Configured Motion Groups

Motions Groups are automatically self-configured based on co-location and the similarity in motion patterns among neighboring Autonomy Sensors. The Area management algorithm ensures that group membership is limited to sensors that are co-located in the same room.

Membership in a motion group is dynamic, adapting to changes in the lighting arrangement, layout of the space, and the addition, removal, replacement and relocation of sensors. The mobile application can be used to modify motion group membership.


Self-Configured Daylight Groups

Daylight Groups are automatically self-configured based on co-location and similarity of ambient lighting conditions among neighboring Autonomy Sensors. The Area management algorithm ensures that group membership is limited to sensors that are co-located in the same room.

Membership in a daylight group is dynamic, adapting to changes in the lighting arrangement, layout of the space, and the addition, removal, replacement and relocation of sensors. The mobile application can be used to modify daylight group membership.


LED Drivers & Bridges

The Autonomy Sensor works with any D4i compliant LED Driver or Bridge. See the list below for commonly used LED drivers and Bridges.

  • Advance Xitanium SR 40W Linear LED Driver XI040C110V054VPT
  • Advance Xitanium SR 40W Gen 2 Linear LED Driver XI040C110V054VPT2
  • Advance Xitanium SR 75W Linear LED Driver XI075C200V054VPT1
  • Advance Xitanium SR Flextune 40W XI040C110V050VWT1
  • Advance Xitanium SR Bridge SRB-BS/SRB-LD
  • Advance Xitanium SR Bridge Gen 2 SRB-BS2/SRB-LD2
  • Osram OPTOTRONIC OTi 30W Driver with DEXAL Technology
  • Osram OPTOTRONIC OTi 50W Driver with DEXAL Technology
  • Osram OPTOTRONIC OTi 85W Driver with DEXAL Technology
April 25, 2025 - JDRF Electromag_ Autonomy Sensor - Smart Lighting

Specifications

Environment

  • Temperature:  0-40ºC (32-104ºF).
  • Humidity: 0-90% (non-condensing).
  • Environment: Dry indoor use only.

Power

  • Input Voltage: NEC: Class 2 (9.5 – 22.5 VDC).
  • Input Current: 46 mA maximum.

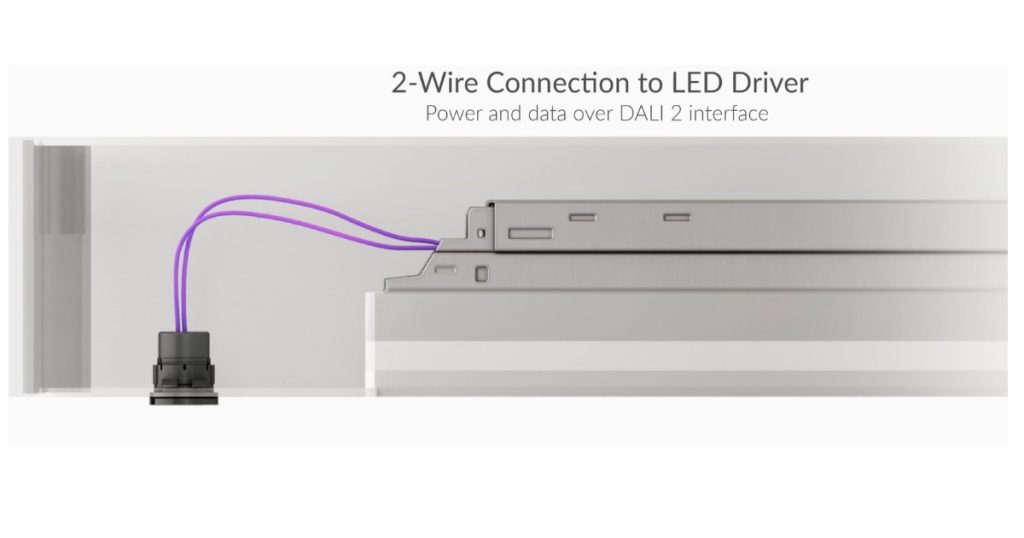

  • Wiring: 2×18 AWG (supplied) connect to LED Driver.

Wireless

  • Communication Protocol: 2.4 Ghz Wireless Mesh.
  • Latency: 50 ms (3-sigma).
  • Modulation: Frequency-Shift Keying.
  • Data Rate: 2Mbps (maximum).

Warranty

  • 5-year manufacturer limited liability.

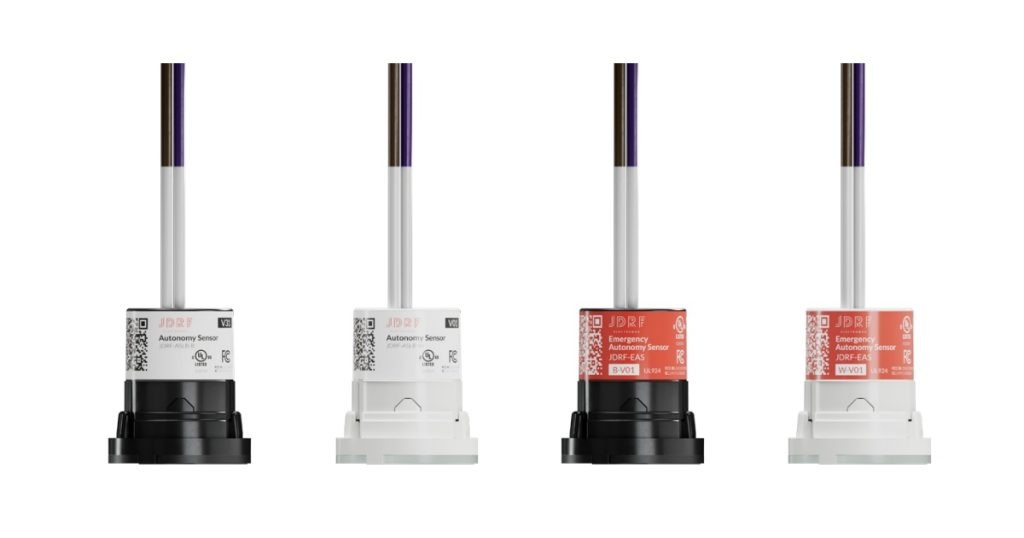

Models

Autonomy Sensors are available in black and white and can be purchased in single or 20-packs. See datasheet for ordering details.
