Lumileds’ LUXEON CoB 1216 Brings Groundbreaking Efficiency to Streetlights and Industrial Luminaires

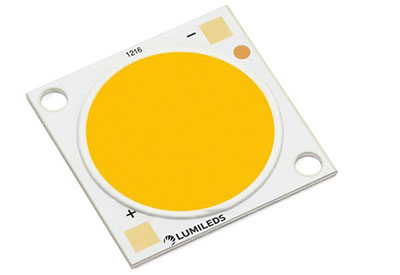

Lumileds LUXEON CoB 1216

The LUXEON CoB 1216 provides a 40% greater flux than Lumileds existing CoBs in an identical mechanical footprint.

In addition to high lumen output and efficiency, the LUXEON CoB 1216 provides the beam uniformity and ease of design required for streetlights and high bay fixtures, allowing replacement of 100-150W HIDs. Featuring a 23mm light emitting surface (LES) in a standard 28mm x 28mm package, the LUXEON CoB 1216 can take advantage of the wide variety of optics and compatible holders in this size, allowing fixture manufacturers to speed time to market of their luminaires.

The LUXEON CoB 1216 is offered in a wide range of colour temperatures (2200K to 5700K) and CRIs (70, 80 and 90). 100% of LUXEON CoB Core Range (Gen 2) arrays are hot tested at 85°C to ensure performance in real world operating conditions and to minimize additional testing. A low thermal resistance substrate minimizes heat sink needs.

The second generation of LUXEON CoB represents a new breakthrough in efficacy for arrays. It has 10% higher efficiency and 10% higher lumen output at the same drive currents as existing LUXEON CoB. Due to its small Light Emitting Surface (LES) and industry-leading thermal resistance, LUXEON CoB is easy to work with, enabling simplified and less expensive luminaire designs. LUXEON CoBs are hot-tested at 85°C which means additional testing can be minimized. LUXEON CoB LEDs are available in 3-step MacAdam ellipse, ensuring uniform optical performance in a wide range of applications.

Find out more: http://www.lumileds.com/products/luxeon-cob
