SATCO|NUVO’s Hi-Lumen Hi-Pro Field Selectable Lamps

May 16, 2025 - SATCO_NUVO’s Hi-Lumen Hi-Pro Field Selectable Lamps

May 16, 2025

Hi-Lumen Hi-Pro: High Performance LED Illumination

SATCO|NUVO’s Hi-Lumen Hi-Pro lamps deliver high performance LED illumination, replacing metal halide lamps from 450W up to 1000W. With a staggering maximum output of over 73,000 lumens, they provide excellent brightness while improving energy efficiency and reducing maintenance costs. Built as field selectable, users can adjust both wattage and CCT to meet their specific needs and with an extended mogul EX39 base and rated for enclosed fixtures, these lamps are ideal for industrial and commercial applications such as warehouses, gymnasiums, and factory floors.

Featuring a Type B ballast bypass design, they operate without the need for a ballast. Available in 120-277V and 270-480V models, they support a wide range of electrical systems, making them suitable for both small- and large-scale operations. A universal operating position allows for flexible installation, and most models include a support bracket and safety cables for added security where required. For enhanced performance and longevity, the Hi-Lumen Hi-Pro lamps feature an integrated active cooling fan and 4kV or 6kV surge protection. With a 50,000-hour functional life and a 5-year warranty, these lamps deliver long-lasting, high-lumen output where it matters most.

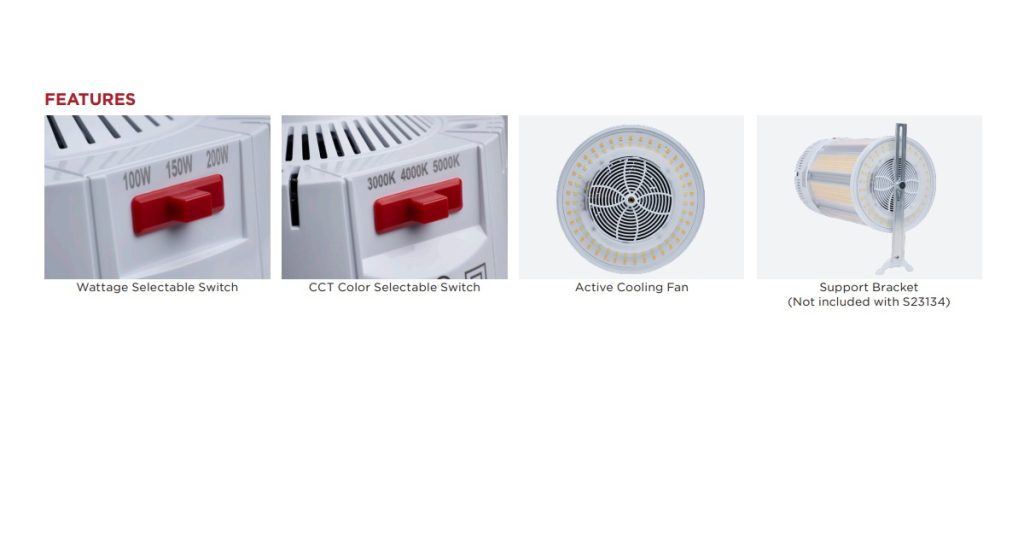

Hi-Lumen Hi-Pro Lamps Features

  • Field Selectable (CCT & Wattage)
  • Very High Lumen Output
  • Type B Ballast Bypass
  • Integrated Active Cooling Fan for Advanced Thermal Management

Suggested Applications: Warehouses, Manufacturing, Gymnasiums, Parking Garages, Commercial Spaces.

Specifications

  • Frequency: 60Hz
  • THD: <20%
  • Dimming: Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
  • Ballast Bypass: Type B
  • CRI: 80+
  • CCT Selectable: 3000K/4000K/5000K
  • Beam Angle: 280°
  • Location Rating: Damp
  • IP Rating: IP54
  • Ambient Operating Temperature: -40°C (-40°F) to +50C (+122°F)
  • Rated for Enclosed Fixture: Yes
  • Operating Position: Universal
  • Lamp Shape: Corncob
  • Lamp Base: Mogul Extended EX39
  • Material: Aluminum
  • Lens Finish/Material: Clear/Polycarbonate
  • Functional Life: 50,000 Hours
  • Warranty: 5 Years
