Leviton | Viscor: Certolux MD2-3461 – Medical LED Luminaire

Aug 19, 2025 - Leviton Viscor Certolux LED Medical 2 Recessed - MD2-3461 2

August 19, 2025

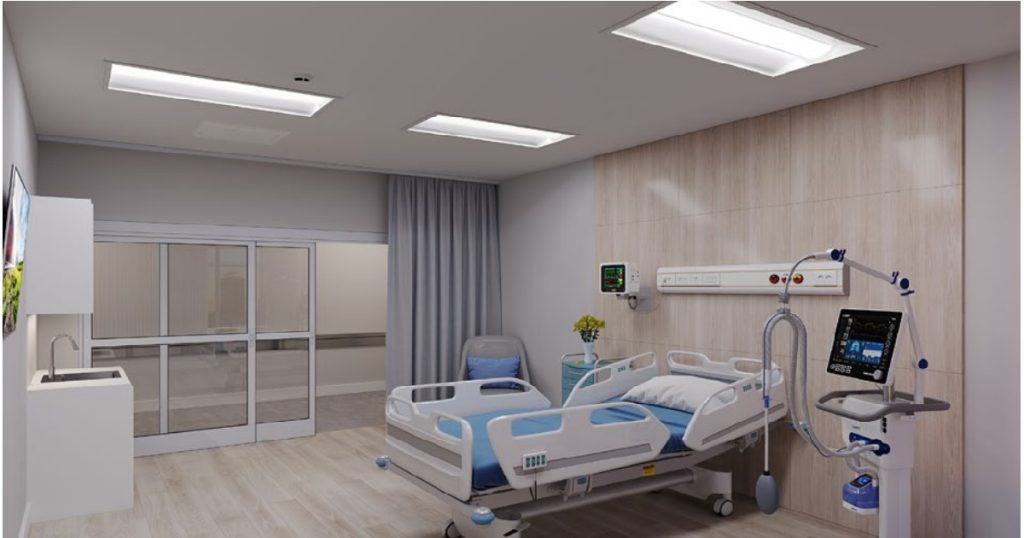

MD2-3461 – Medical LED Luminaire: Ambient/Exam Light for Hospitals, Nursing Homes & Other Patient Care Facilities

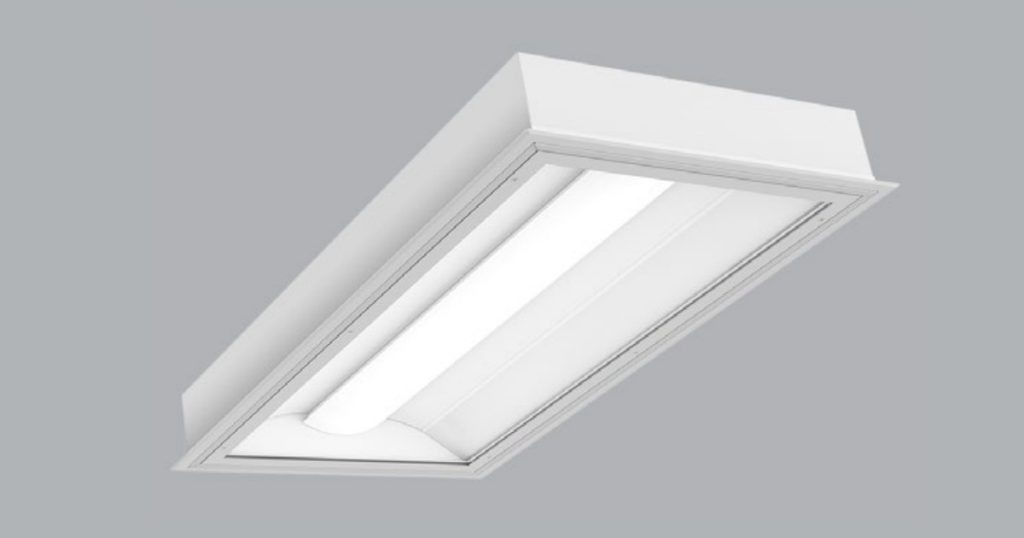

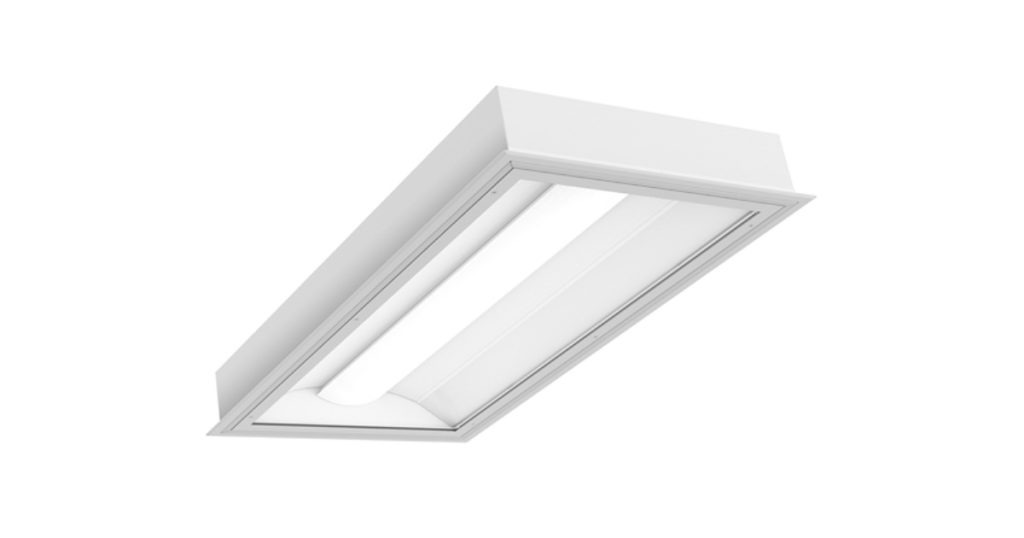

The MD2-3461 series by Certolux is an IC-rated specification-grade, LED luminaire which provides a cost-effective patient room lighting solution. Designed as a combination Ambient/Exam light for hospitals, nursing homes and other patient care facilities. Eliminates the need for wall mounted luminaires. The flexibility of the nominal 2’ x 4’ singular modular installation makes this an excellent ceiling-mount fixture. For use in insulated ceilings.

Aug 19, 2025 - Leviton Viscor Certolux LED Medical 2 Recessed - MD2-3461 2

Features

Housing

  • Precision formed, code gauge cold rolled steel.
  • Wiring access plate or knockouts are provided on back of housing, for flexible conduit attachment.
  • Separated knockouts for line and low voltage connections.
  • A gasketed wire access plate option is also available for easier installation.

Doorframe

  • Secured by screws and a hidden cable hinges.
  • See option D10 for a single-piece 16 ga. aluminum doorframe that is IP65 certified.
  • Extruded anodized aluminum door holds a clear acrylic flat lens that is gasketed to the door and housing to maintain cleanliness.

Mounting

  • Surface Mount – Four 0.312” diameter holes provided.
  • Grid Mount – Holes provided for chain mounting support to building structure and comes with integral earthquake clips.
  • Flange Mount – Yoke mounting bracket (see product ordering key).

LED

  • LED board arrays offered in various color temperatures and lumen packages.
  • Optional Green LED arrays available on separate circuit (consult ordering key).

Lens

  • The exam compartment is shielded by a frosted linear prismatic acrylic lens.
  • The ambient compartment shield is a rounded low profile extruded frost acrylic lens.

Finish

  • The luminaire is a powder painted white matte finish and offers a high reflectivity coating for improved lighting efficiency and performance.
  • Antimicrobial finish is optionally available.

Electrical

  • Long life LEDs coupled with high efficiency drivers provide quality illumination.
  • Rated to deliver an L80 performance >50,000 hours.
  • The standard driver has a THD of <10%. Standard low voltage dimming (0-10v, 1%).
  • All electrical components are CSA and UL approved.
Aug 19, 2025 - Leviton Viscor Certolux LED Medical 2 Recessed - MD2-3461 2

Warranty

  • 5-year limited warranty.

Options

  • Fastener Tamper Proof
  • Emergency Battery Pack
  • Lens & Reflector
  • IP65 Rated

.

Applications

  • Chronic Care Facilities
  • Healthcare
  • Hospitals
  • Nursing Homes
  • Patient Room

Product Specifications

  • Available Size(s): 2×2, 2×4
  • Brand: Certolux
  • CRI: 80 – 89
  • Certification: Built to CSA & UL Standards, cULus Listed
  • Color Temperature: 3500K, 4000K
  • Fixture Type: Medical, Recessed, Surface
  • Grade: Specification Grade
  • Light Source: LED
  • Lumen Output: 5001-10000,10001-20000
  • Market: Healthcare
Leviton Viscor Certolux LED Medical 2 Recessed - MD2-3461

Source

MD2-3461 MD2-3461 MD2-3461
