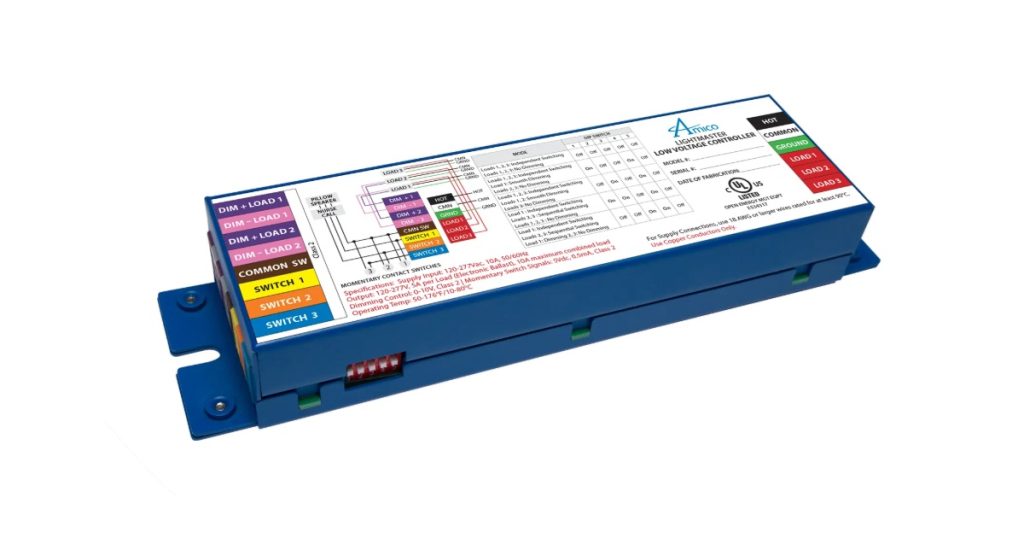

LightMaster Series Low Voltage Controller: Designed for Operating High-Voltage Healthcare Lighting
The LightMaster Low Voltage Controller allows users to operate high voltage lights found in healthcare facilities using a low voltage device such as a keypad or pillow speaker. The LightMaster Low Voltage Controller can be used and is compatible with all nurse call systems and low voltage momentary contact switches.
Features
- Controls up to three (3) light functions in the room
- Compatible with nurse call systems used today
- Universal input voltage of 120 – 277 VAC
- Color coded push in connectors for ease of connectivity
- Compact design
- Up to two loads have 0 – 10 V dimming capability
- Can be used with florescent and LED light sources

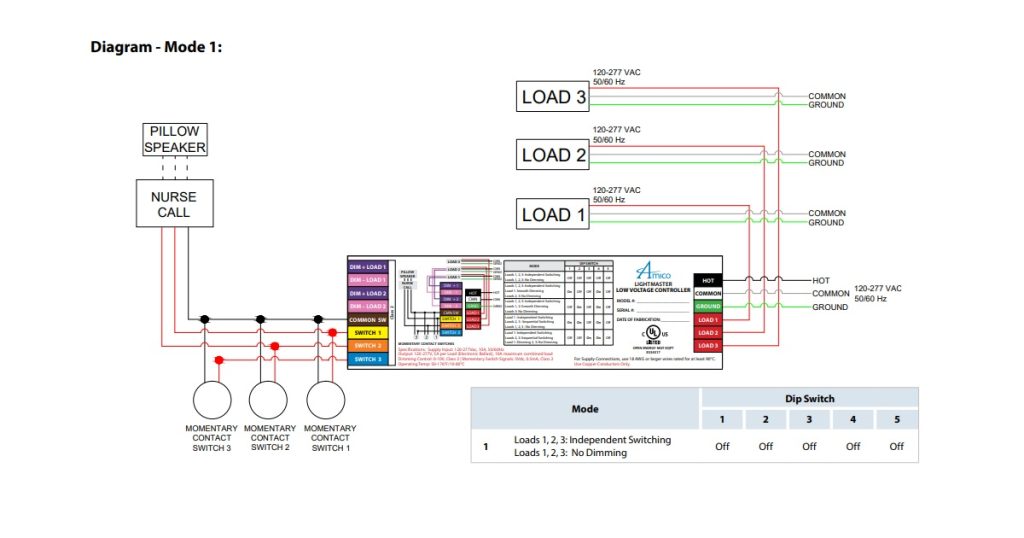

- Five (5) modes of operation
- cULus Listed
Specifications
- Supply Input: 120 – 277 Vac, 10A, 50/60Hz
- Output: 120 – 277 Vac, 5A per load, 10A Max Combined Load
- Dimming Control: 0-10V, Class 2
- Operating Temperature: 50°F to 176°F (10°C to 80°C)
- Momentary Switch Signals: 5vdc, 0.5mA, Class 2
- Dimensions: (L) 7″ x (W) 2″ x (H) 1 ¼”
- Surge Protection: Tested to IEC 61000-4-2 electrostatic discharge immunity, IEC 61000-4-4 fast transient/burst immunity, IEC 61000-4-5 surge immunity
- Listings: cULus Listed as per CSA C22.2 No. 205-17 and UL 916
- Warranty: Limited five (5) year warranty
