Via Perimeter MRI Fixtures: Designed Specifically for MRI Suites in Healthcare Applications

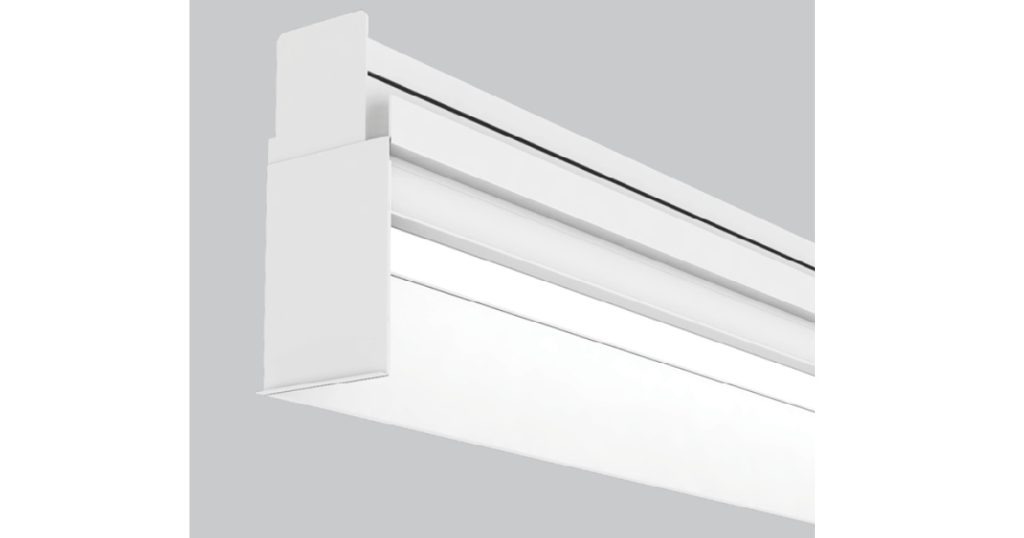

Via Perimeter MRI fixtures are designed specifically for MRI suites in healthcare applications and constructed with non-ferrous materials. With remote drivers, they create a continuously illuminated “slot” at the wall/ceiling intersection. Lighted corners with adjustable end sleeves are available. Via Perimeter installs in grid or drywall ceilings in a choice of three arrangements: level, shallow 1″, and deep 3 ¼”. An additional antimicrobial finish option is available.
Features
OPTICS
- The HIGH EFFICIENCY LAMBERTIAN OPTIC (HLO) uses matte white reflectors to distribute LED output across 0.075″ acrylic shielding, providing up to 88% transmission and good obscuration. Luminaire brightness is controlled by the flux-to-shielding area ratio.
- Lumenwerx’s ASYMMETRIC ROOM FILL OPTIC (ARFO) employs an advanced optical system to illuminate rooms and corridors from the perimeter, providing a direct distribution of light with precision and minimal glare.
CHROMAWERX
- Chromawerx SOLA: A single-channel control that dims output while warming the color temperature in a pre-determined relationship. A simple digital or analog control sends a common signal to dual output digital drivers, which are programmed to adjust a specially populated LED array to emulate the effect of dimming a filament source. Dimming range is programmable but the default option runs from 3500K at 100% of full power to 2700K at 5% of full power. CRI is maintained above 80 throughout the dimming range.
- Chromawerx DUO: A two-channel control. It uses analog or digital protocols for synchronous control of both warm and cool LED arrays, enabling the user to set color temperature and light output. Commonly called “tunable white”, Chromawerx two-channel control provides the range of warm (2700K) to cool (6500K) color that can be useful for helping to entrain circadian rhythms, stimulate alertness for improved educational and work productivity, and compensate for jet lag, among other applications. The Chromawerx drivers are programmed to limit maximum light output and power usage across all color temperatures. CRI is maintained above 80.
PoE
- PoE technology can be integrated into many of Lumenwerx’s lighting solutions and product families. For nodes, they always aim for complete integration, but when space is limited, they look for a remote solution that doesn’t compromise the design aesthetic. PoE can be integrated into 95% of Lumenwerx’s product offering, including their Chromawerx solutions.
Specifications
- SIZE: Width: 2 3/8″, 3 5/8″, 5 5/8″ – Height: Level – 3 3/4″, Shallow – 4 3/4″, Deep – 7″
- LIGHT SOURCE: LED
- APPLICATIONS: Healthcare
- CHROMATICITY: Static White, SOLA, DUO
- LIGHT DISTRIBUTION: Direct, Perimeter
- OPTICS: ARFO, HLO
- MOUNTING: Recessed
