STANPRO: WAY – LED Steplights With or Without Motion Sensor & Photocell

June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell

June 12, 2025

This Is the WAY: Illuminating Your Every Step

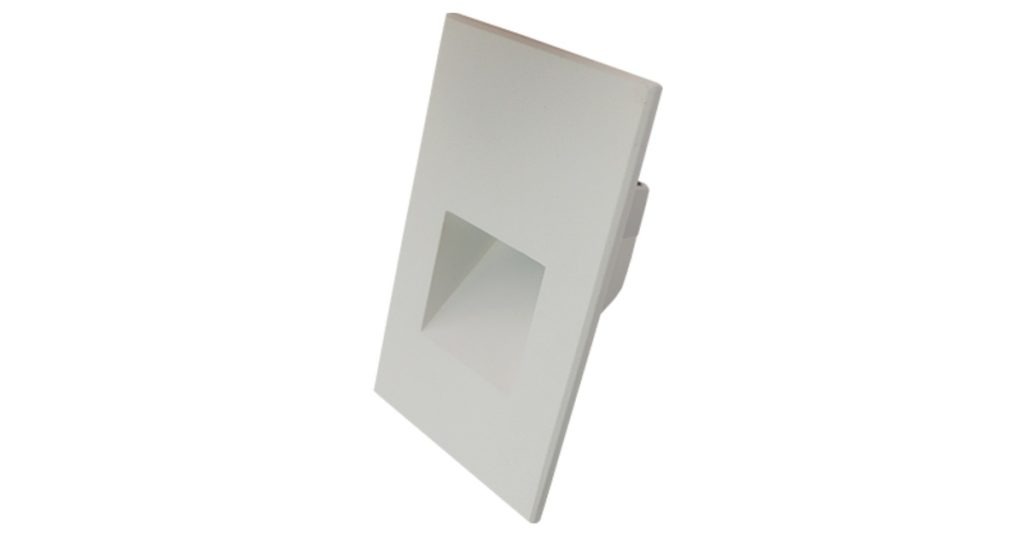

The WAY Steplights combine durability with a sleek and modern appearance. They are designed to create an inviting atmosphere by enhancing the aesthetics of a space and accentuating architectural features as well as key focal points. The WAY LED Steplights are suitable for both indoor and outdoor applications, these luminaires can be integrated into a variety of residential and commercial applications.

  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell

Features & Specifications

Construction

Physical Characteristics

  • Durable die-cast aluminum housing
  • Sleek profile, luminaire will not protrude from wall

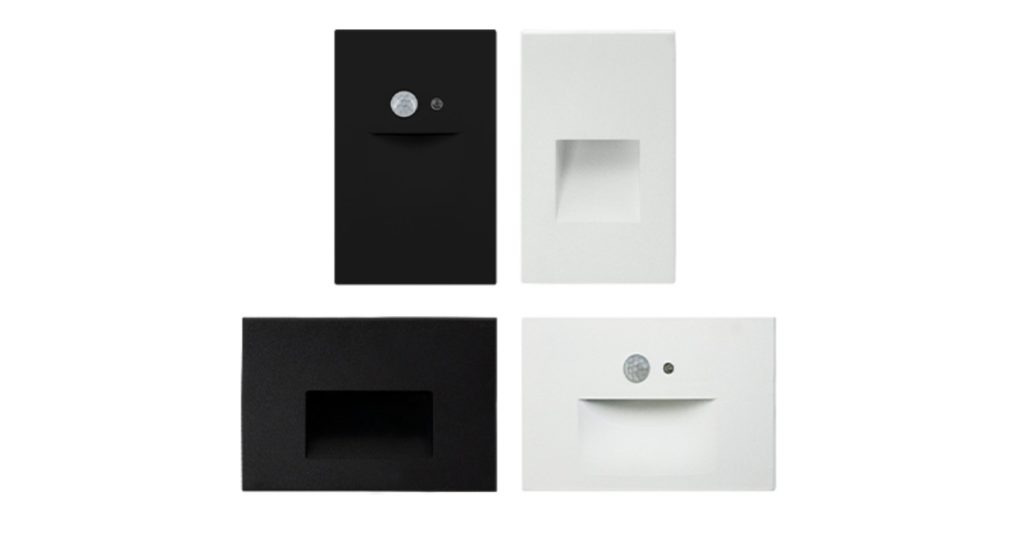

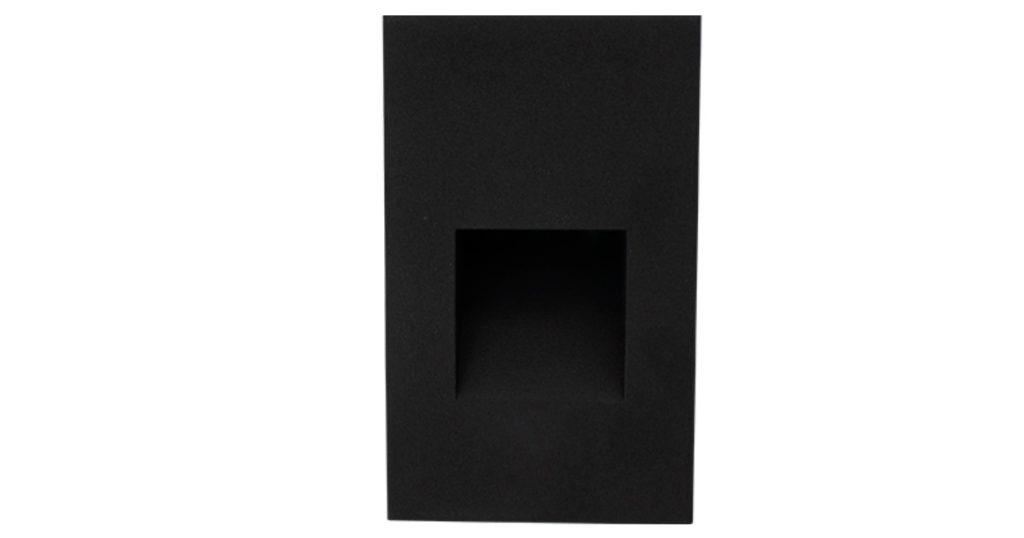

  • White and black finish available
  • Acrylic lens with frosted finish

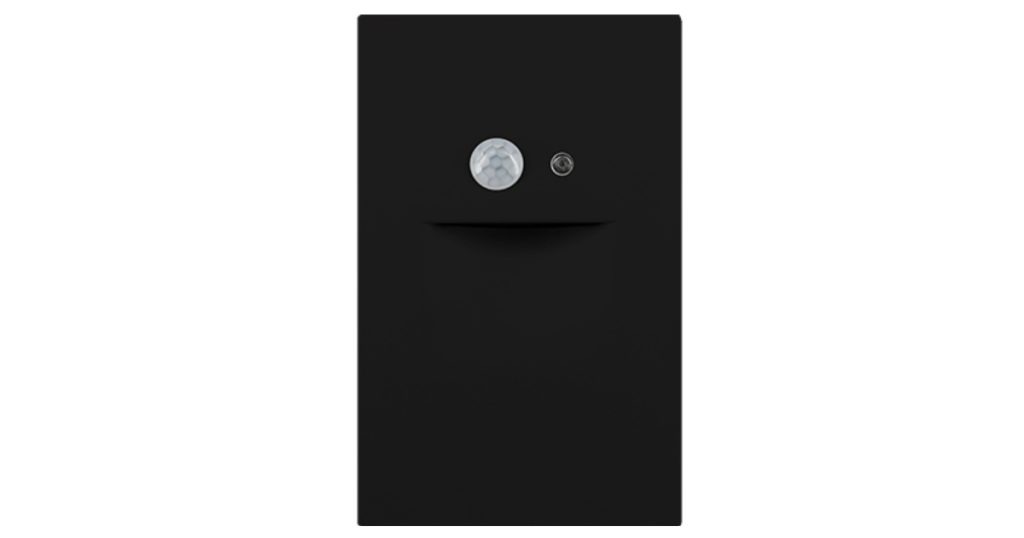

  • Horizontal or vertical installations available

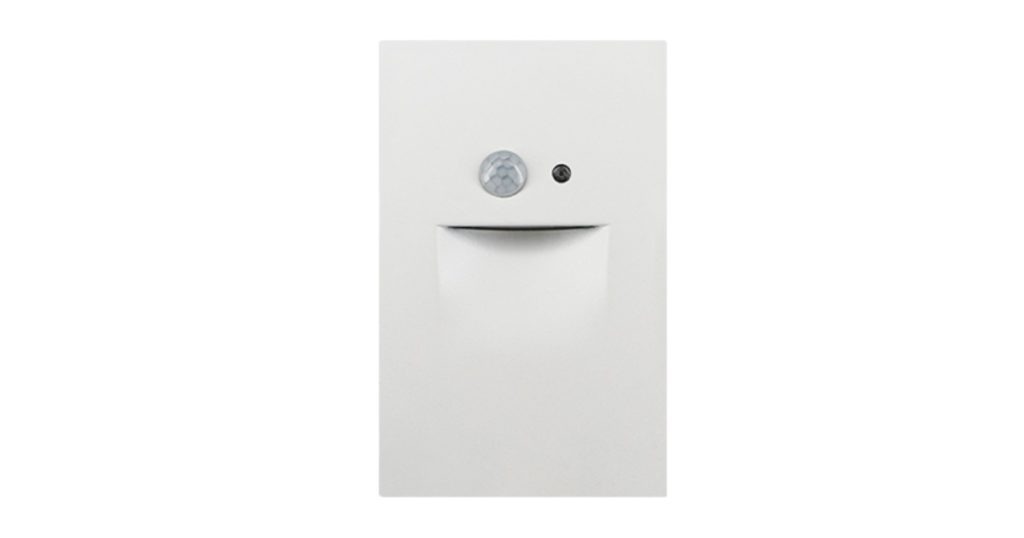

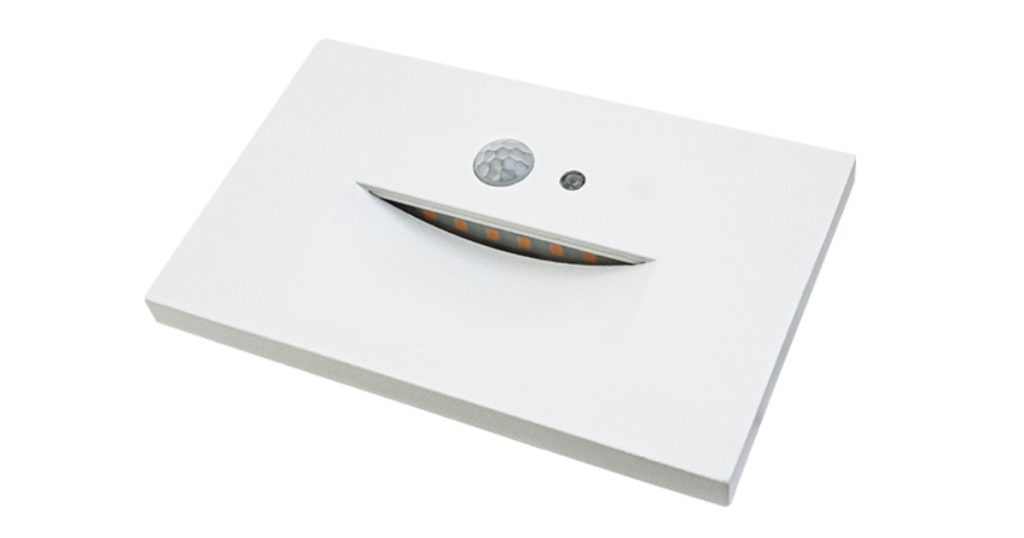

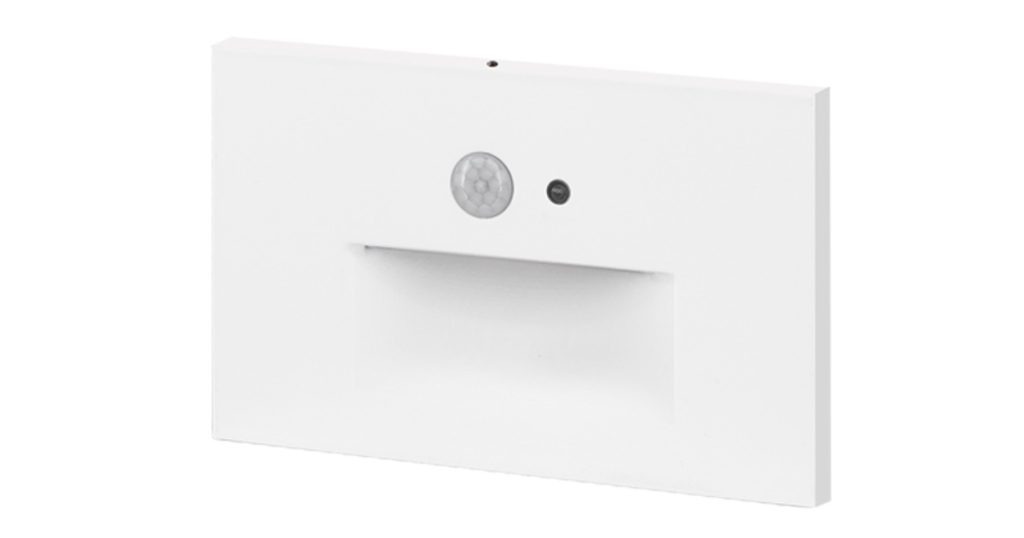

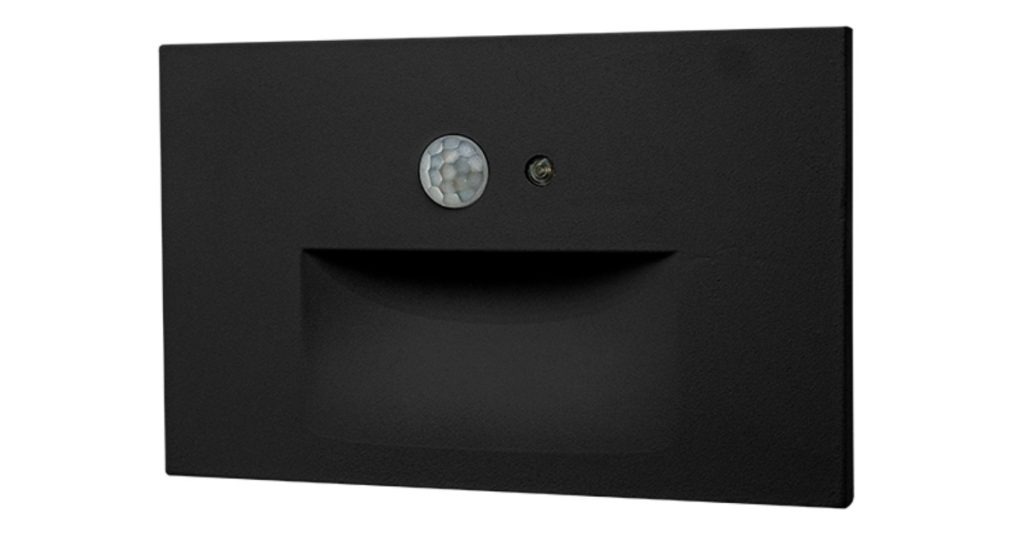

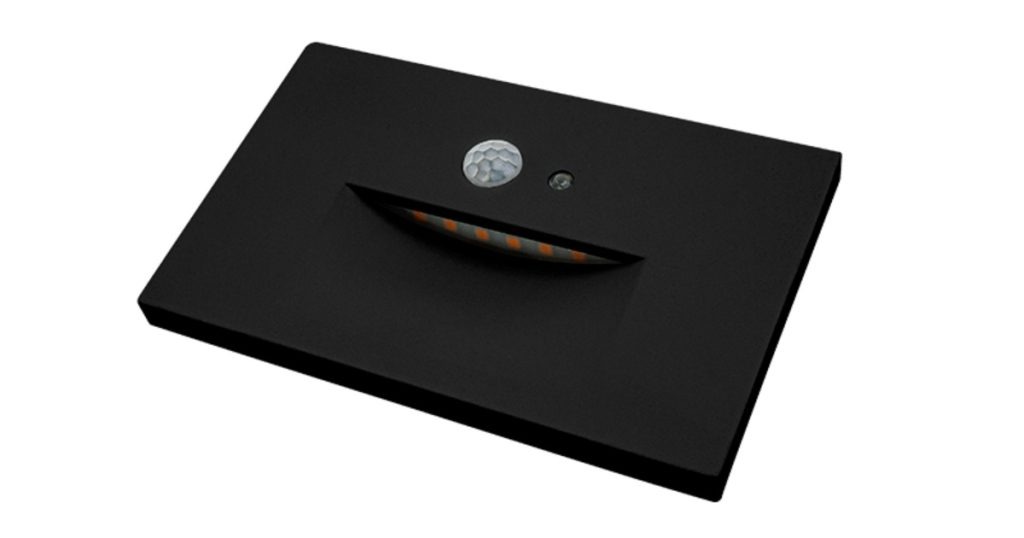

  • Select models offered with integrated PIR motion sensor and photocell

Mounting

  • Recessed, wall-mounted
  • A 2″x 4″ deep electrical junction box is recommended
  • Daisy Chain: Up to 20 fixtures
  • Suitable for both indoor and outdoor applications
  • Outdoor Installation: To ensure installation is properly sealed, caulking is required along with the use of waterproof junction box. Refer to installation sheet for details.

Performance Data

  • Available in 3 000 K single color temperature
  • 90+ CRI for true color accuracy
  • Electrical ratings: 120 V
  • Estimated life of over 50 000 hours to L70
  • Dimming for step lights without sensor only: Phase cut (ELV / Triac)
  • Operating temperature:
  • 30 °C to 40 °C (-22 °F to 104 °F)

PIR Motion Sensor & Photocell

PIR Motion Sensor

  • Automatically turns to standby mode when movement is not detected
  • When motion is detected, light automatically turns ON, and will turn OFF after 1 minute if the space is vacated

Photocell

  • Detecting ambient light changes will automatically turn the fixture ON or OFF
  • No manual operation is required (For sensor function, please see diagram below for further details)

Detection Area

  • 45° angle detection
  • For detection range, please see diagram below for further details

Compliances

  • cETLus listed for wet location
  • Meets requirements of ICES-005 issue 5 class B for use in residential applications
  • IP65
STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
