SHADE Mini Concrete: Energy-Efficiency & Streamlined Design

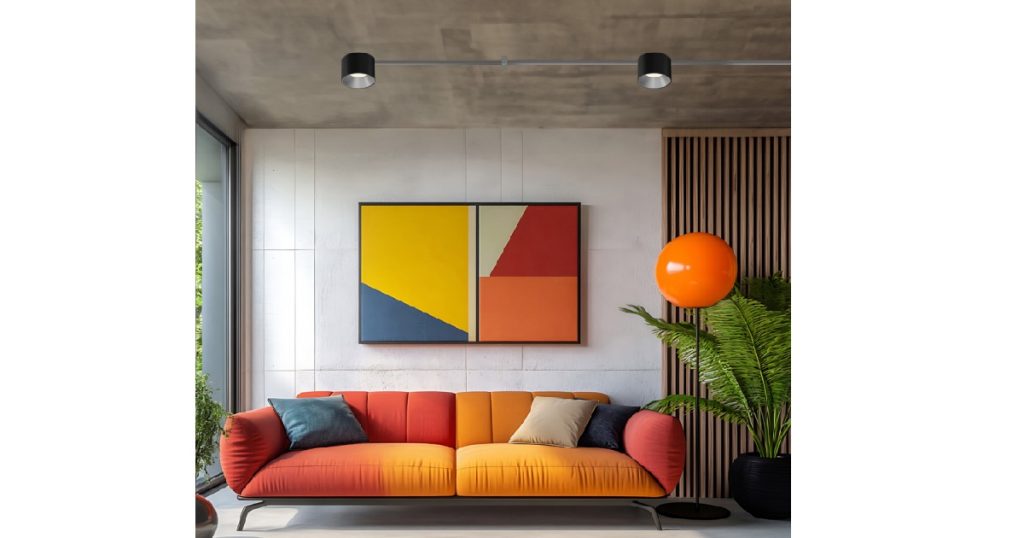

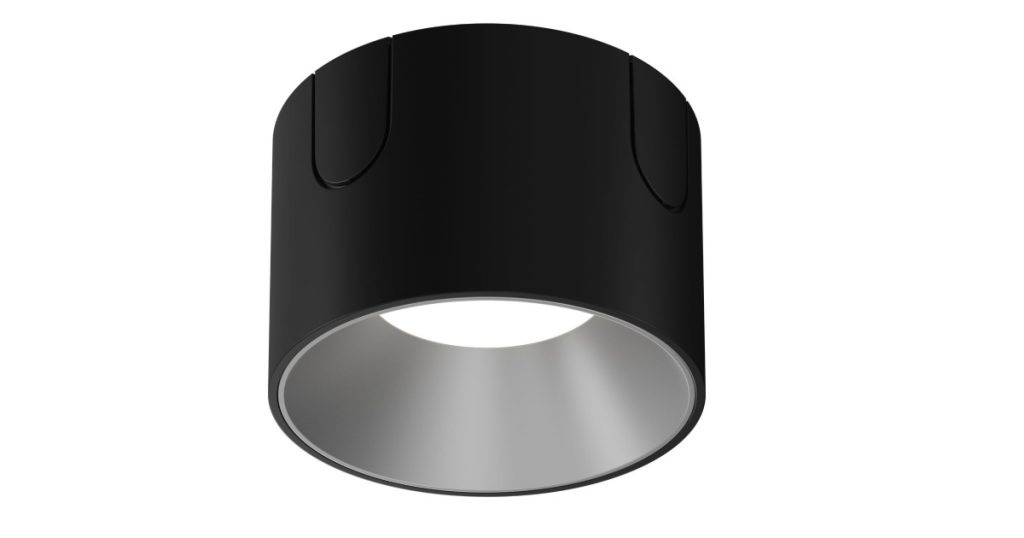

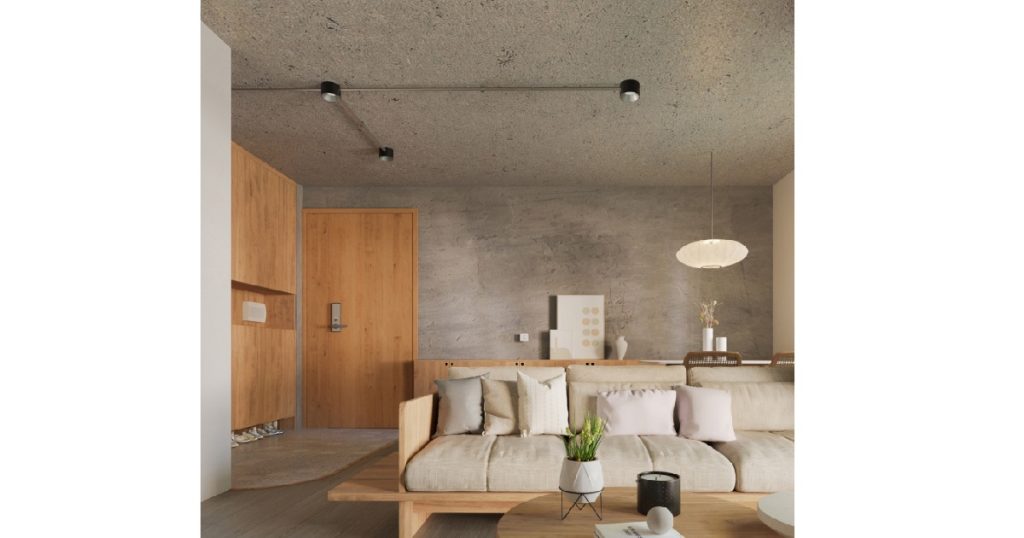

SHADE Mini Concrete is a 4″ downlight for retrofit application onto 4″ octagon box, surface mounted onto concrete or other exposed conduit ceilings, four knockouts make it easy to accommodate any direction of conduit or daisy chaining. It is a high-performance, easy to install residential grade downlight solution that offers good light output, energy-efficiency and streamlined design. Suitable for wet locations.
Features
Body

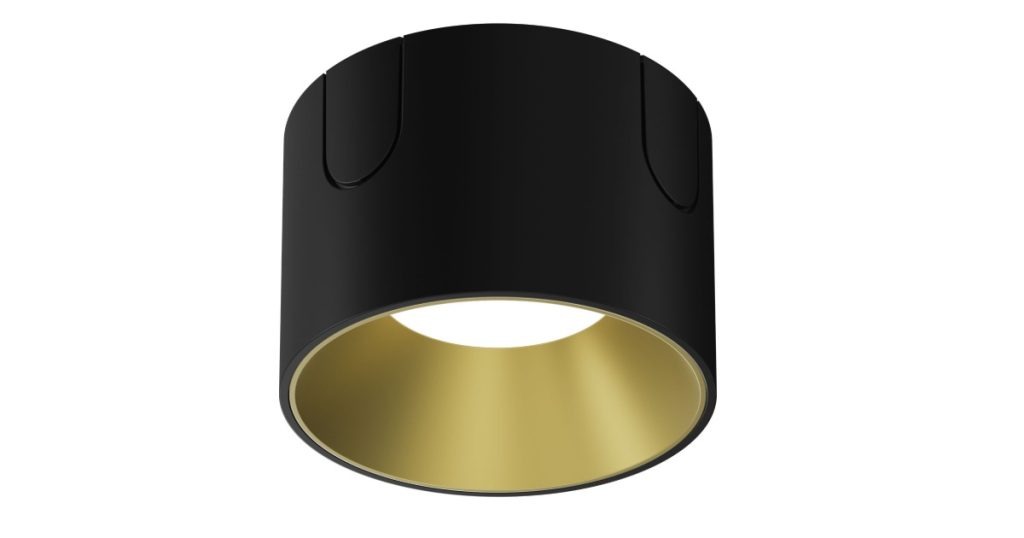

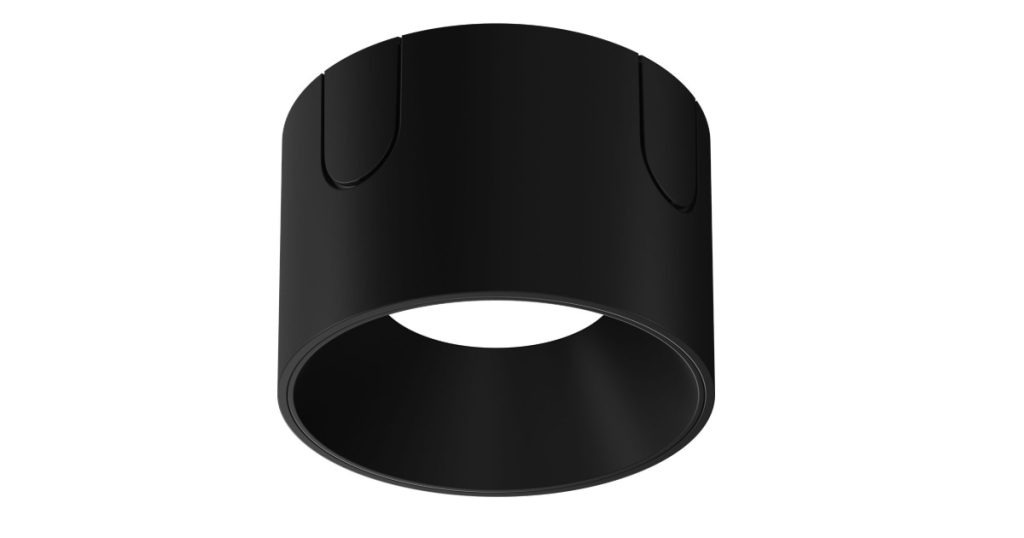

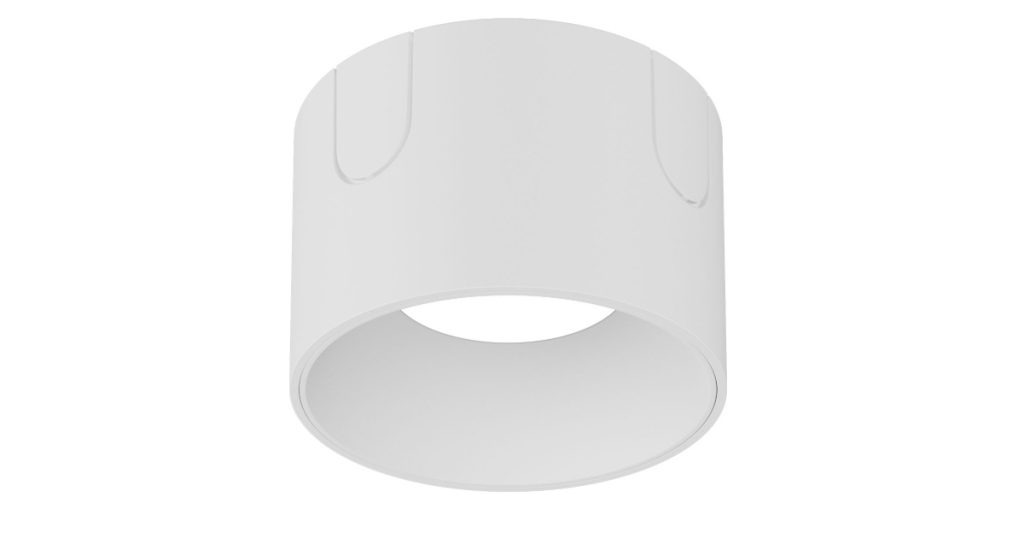

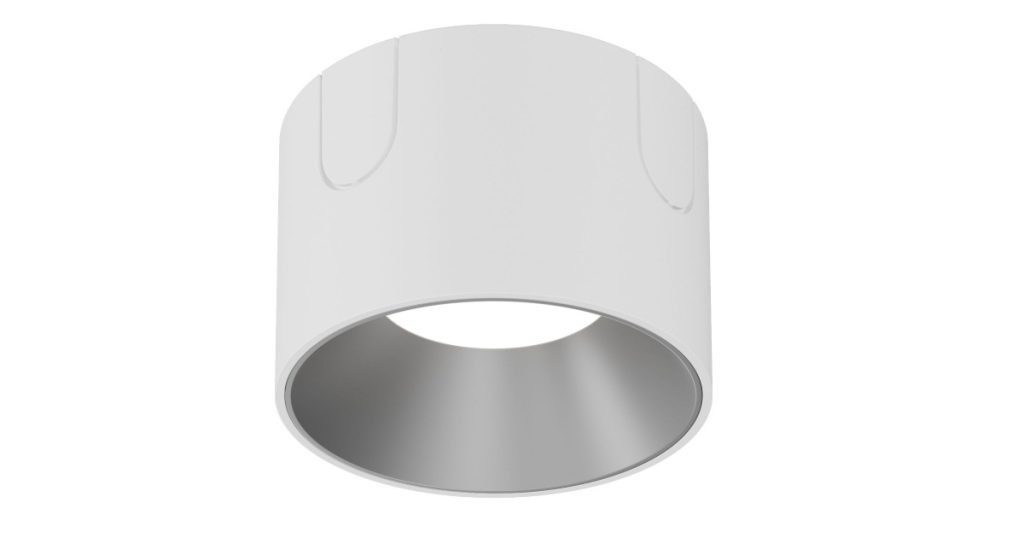

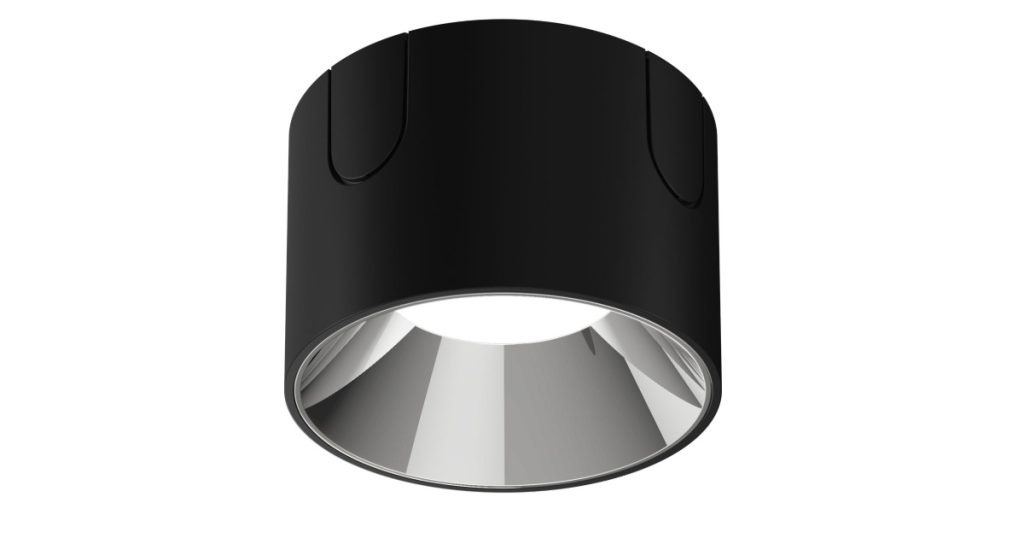

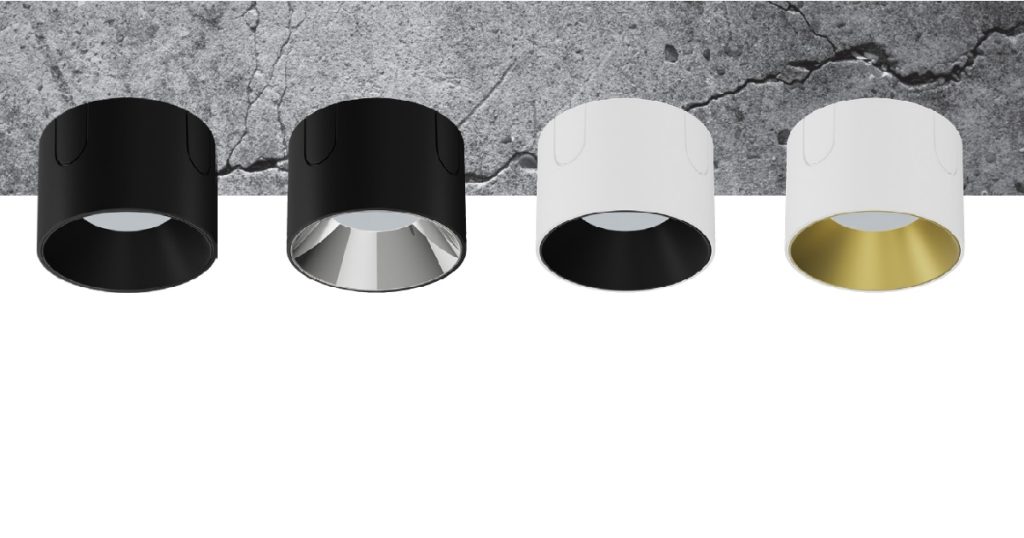

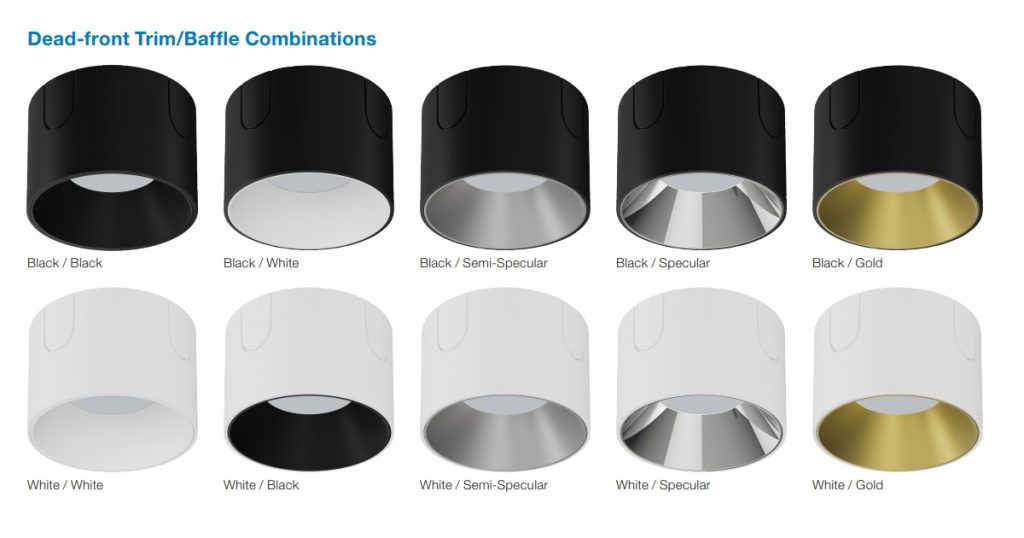

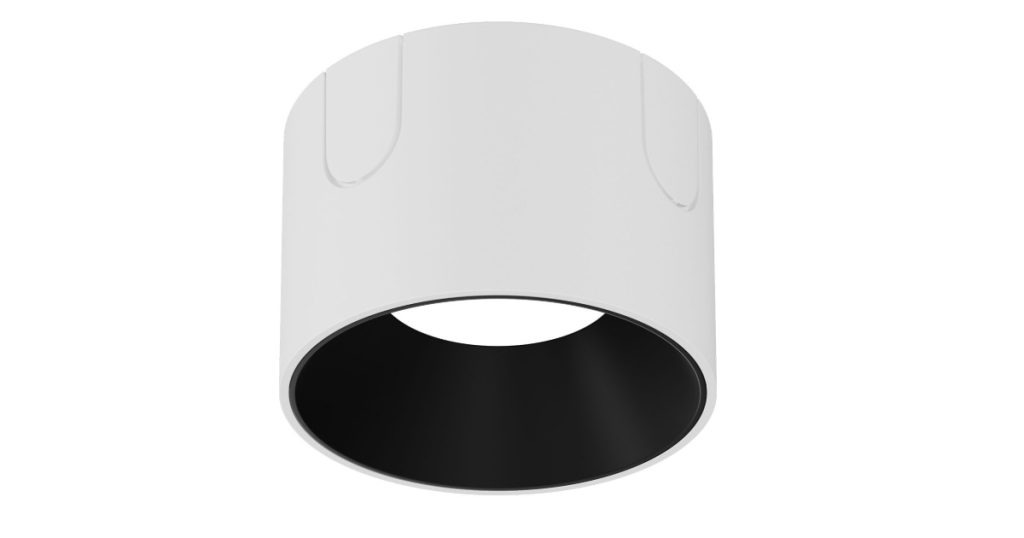

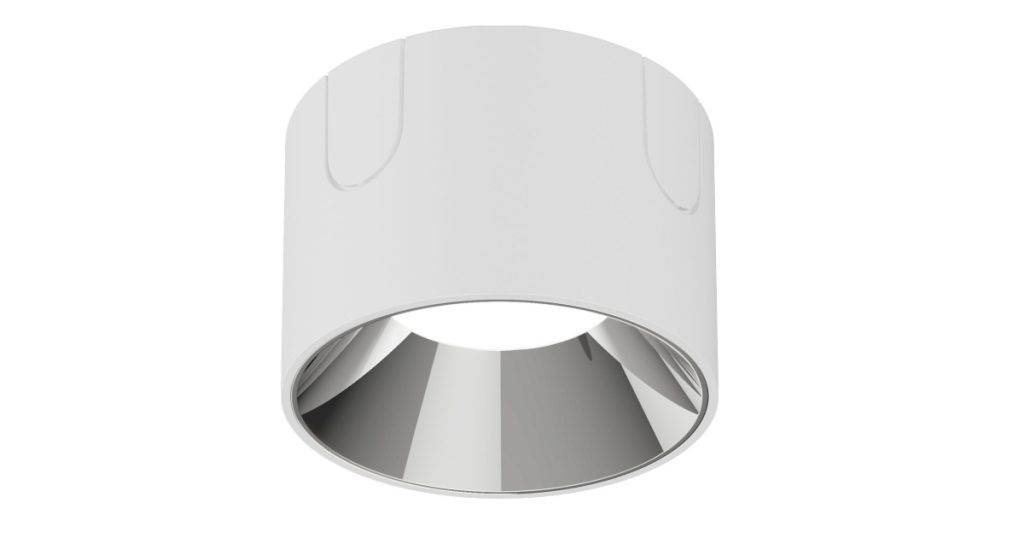

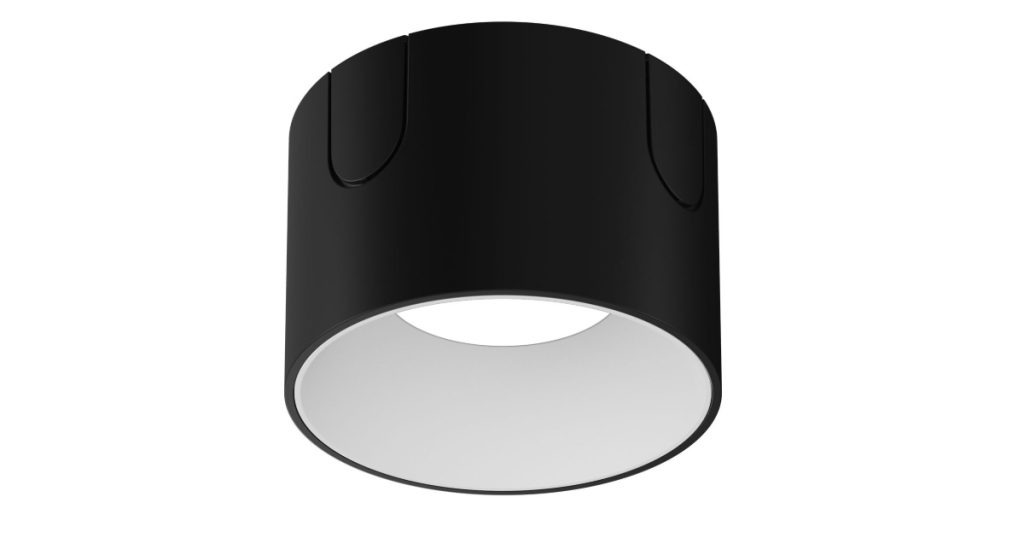

- Durable airtight aluminum body with mounting holes. On-face magnets allows for securely attaching a selection of 2-tone, dead front trim/baffle combinations. Available in a variety of color/finish combinations, and includes 4 knock-outs.
LED Characteristics
- This general application light fixture features an 8 watt LED module that maintains uniform intensity producing up to 560 lumens; with a typical CRI of 90. Available with 5 step CCT switch (2700 K, 3000 K, 3500 K, 4000 K, 5000 K).
Dimming
- 100%-10% dimming capability. This fixture is compatible with industry standard forward/reverse phase dimmers, TRIAC/ELV dimmers.
Beam Spread
- The fixture lens provides 100° beam spread.
Mounting

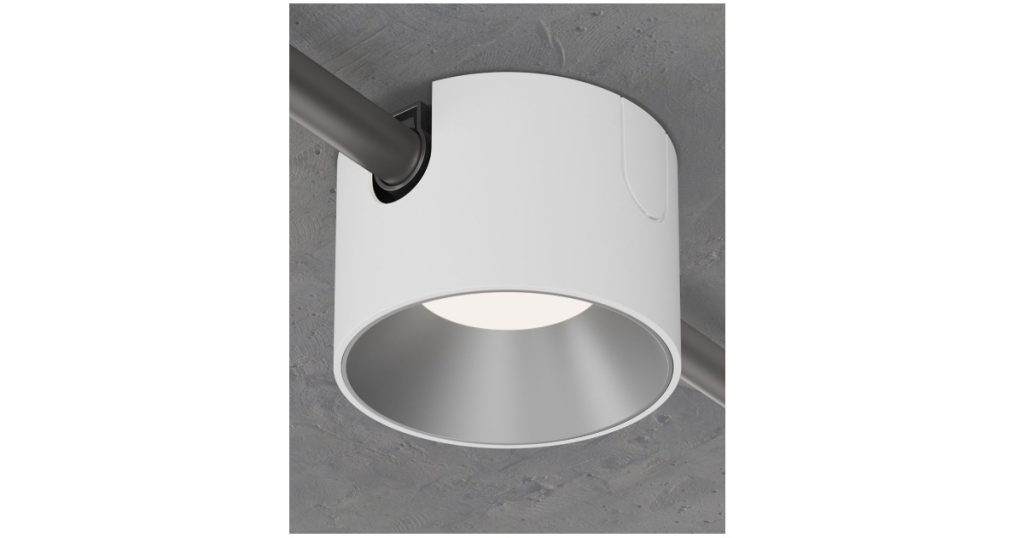

- Attached to a surface mounted industry standard 4″ octagon boxes with depth of 1.5″ (38mm) via mounting holes, in concrete or other exposed conduit ceilings.
LED Driver
- Built-in on board driver with 40mA output and 100-135V AC input.
Quick Connect Push-in Terminals
- “Quick connect” push-in terminals for fast and easy wiring.
Operating Temperature
- -30°C~40°C (-22°F~104°F)
Environment
- Fire-rated when used in a steel octagon box.
