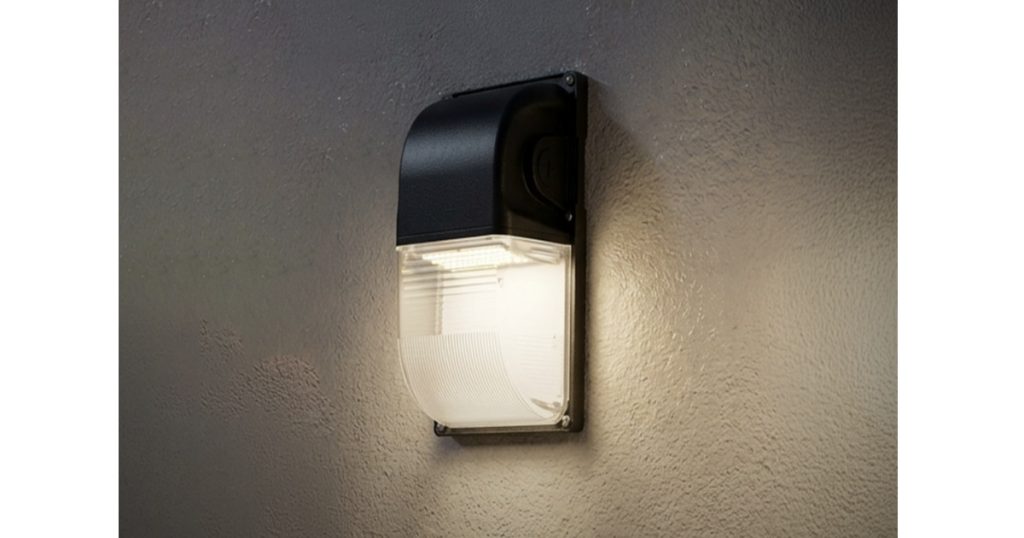

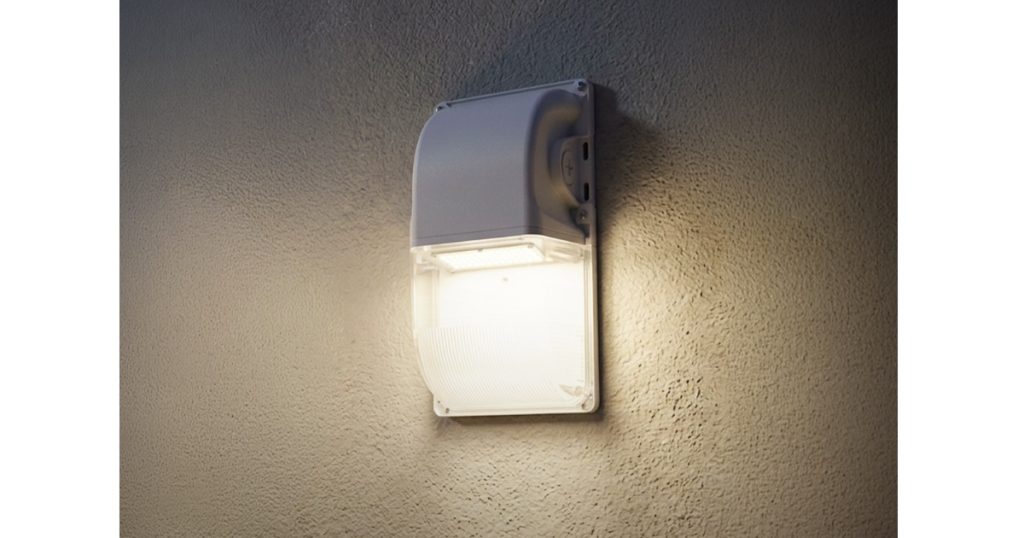

The OPS Mini Wall Pack: Minimal Size, Maximum Output
A minimal, slim design meets powerful performance. The RENO Lighting OPS Mini Wall Pack delivers a high-performance, energy efficient lighting solution with a modern, sleek design and sharp, streamlined profile. The OPS Mini is engineered with advanced LED chips and drivers, it is designed for quick and easy installation, directly fitting onto existing electrical boxes for seamless replacement of older high-pressure sodium and metal halide wall packs.
Features
- Die-cast aluminum housing
- Polycarbonate lens

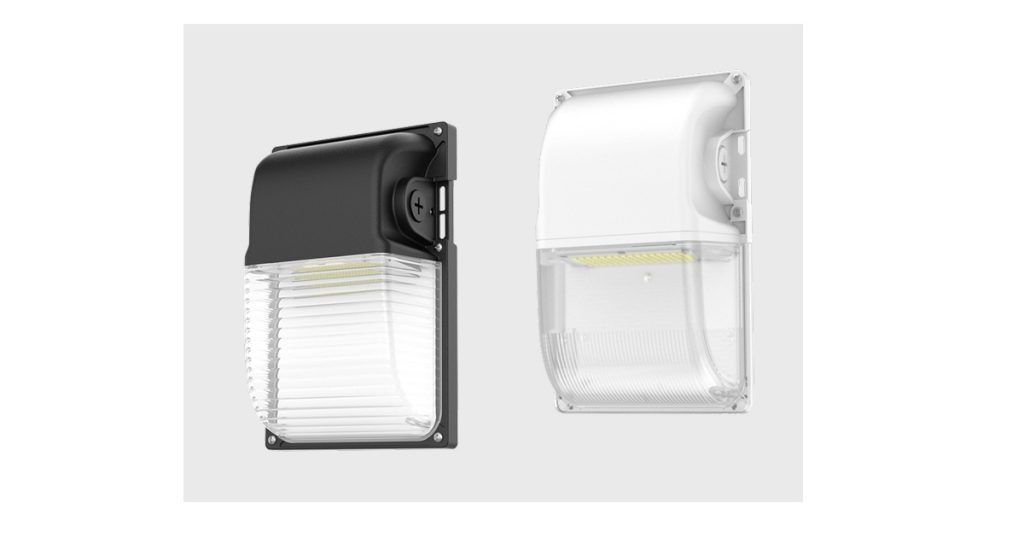

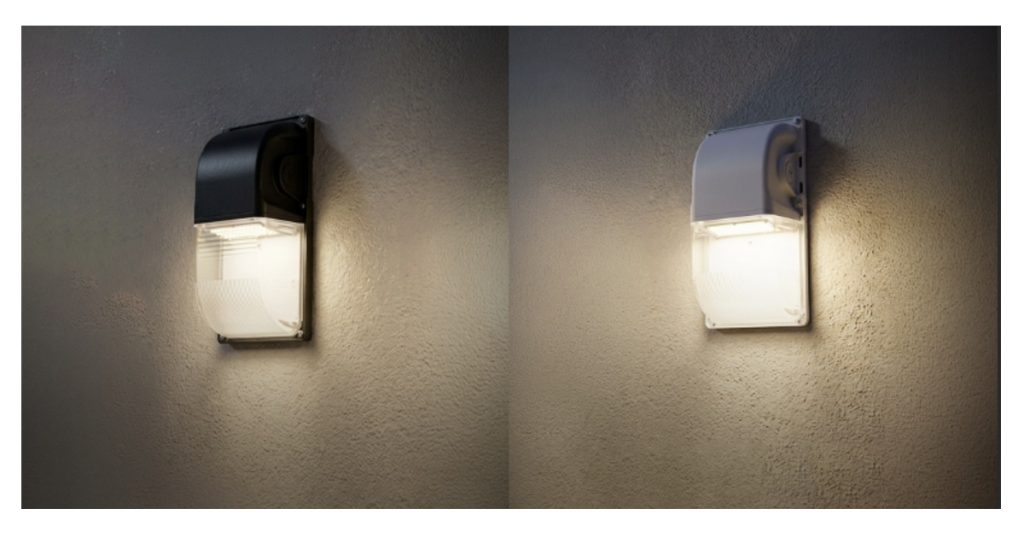

- Powder-coated black or white finish
- Field-adjustable wattages and CCT
- Automatic dusk-to-dawn photocell functionality
- IP65 Rated
- Operating Temperature: −30°C to +50°C (−22°F to +122°F)
- L70 Rated Life: >50,000 hours
Specifications
- Voltage 120-347V
- Selectable Wattages 15/20/30W
- Selectable CCT 3000K, 4000K, 5000K
- THD < 20% Power Factor > 0.9
- CRI >80
- Lumens Up to 3900 lm
- Efficacy 130 Lm/W @ 3000K
- Beam Angle 90°
- Dimming 0-10V
- Mounting Wall Mounting

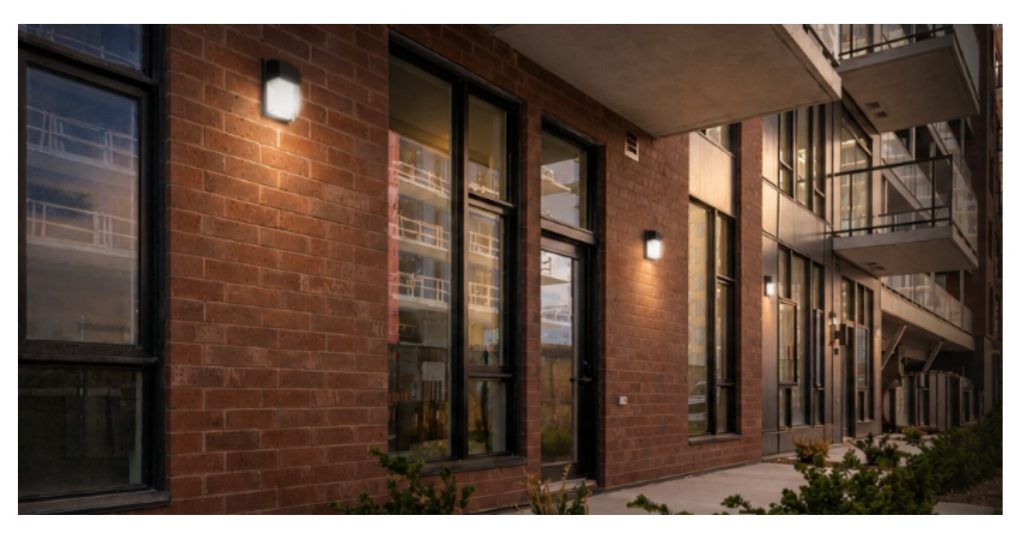

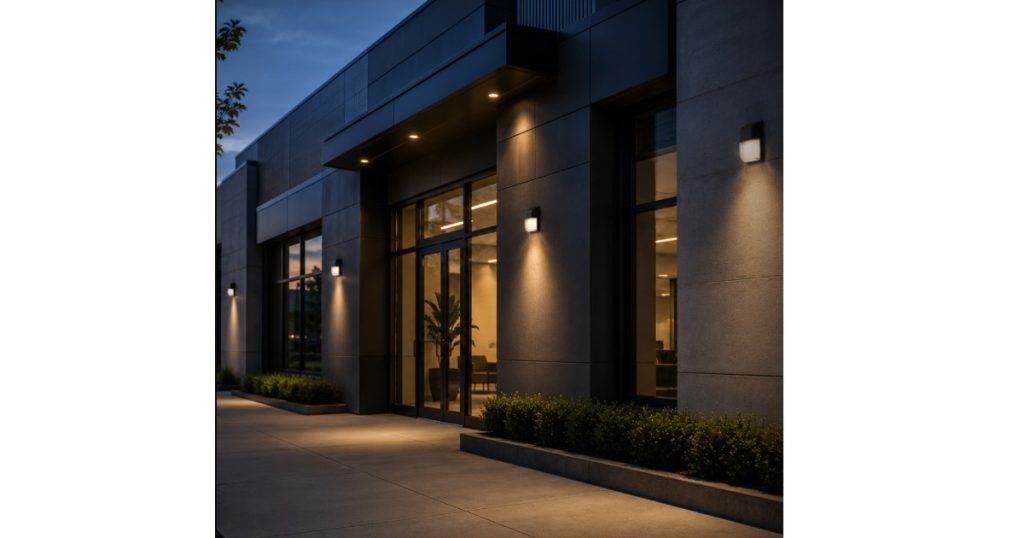

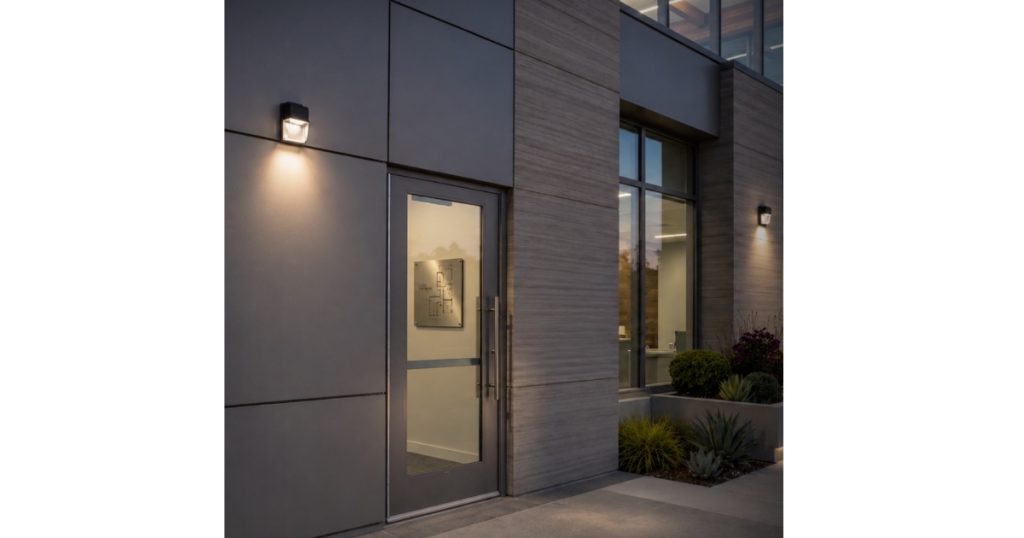

- Applications Entrance ways, Security lighting, Stairwells, Hallways, Outdoor commercial and residential
