Cooper Lighting: Metalux – Elevate Round High Bay
June 17, 2026
Elevate Round High Bay: Provides Durability, Precision Optics, Optimal Thermal Control & Longer System Life
The Elevate High Bay puts light where it belongs, with next-level optical control and efficacy, Elevate delivers light levels with less fixtures and lower energy consumption.

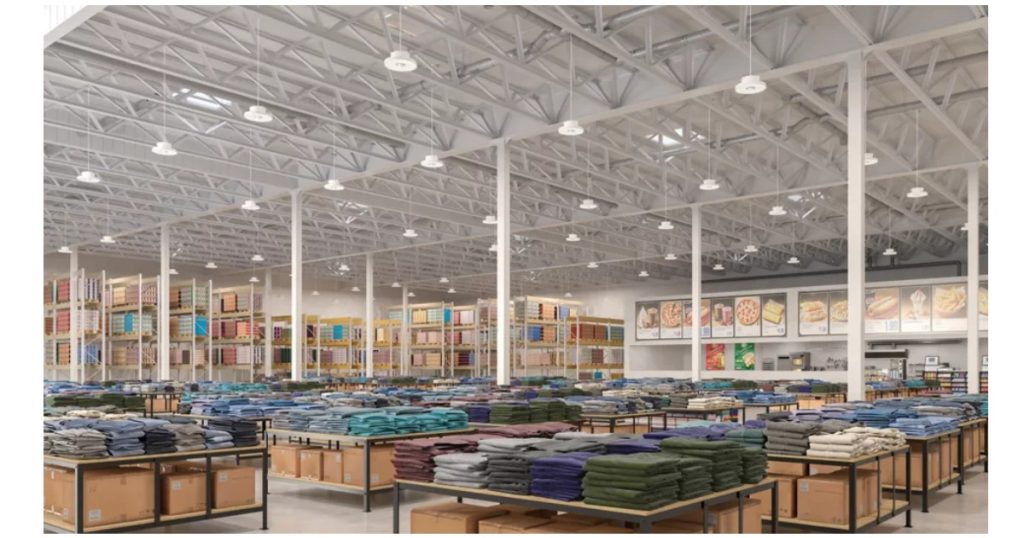

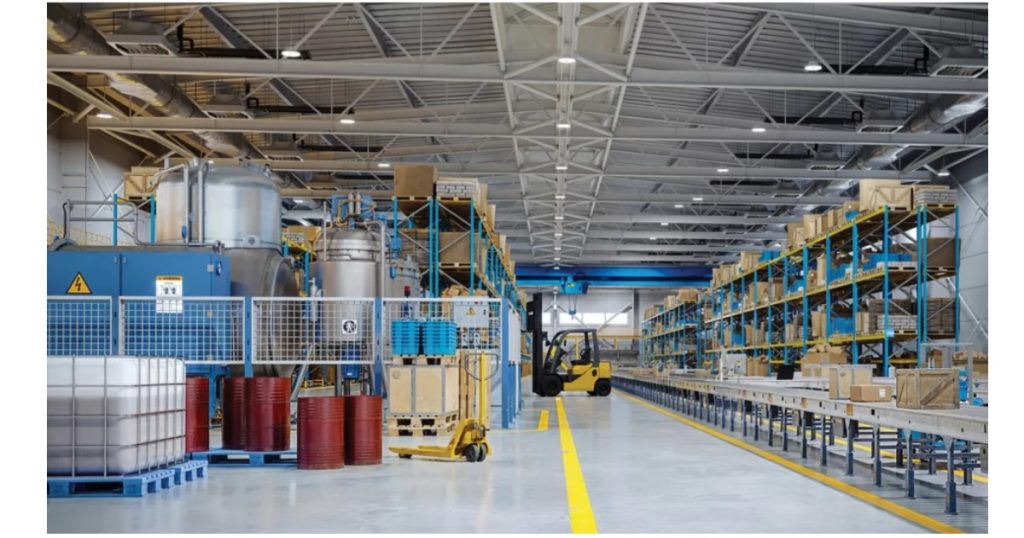

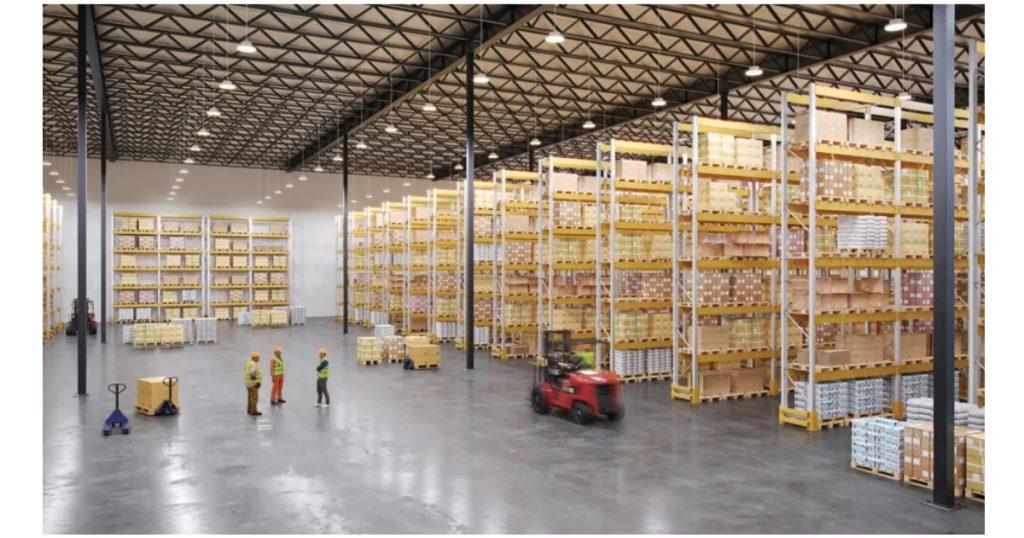

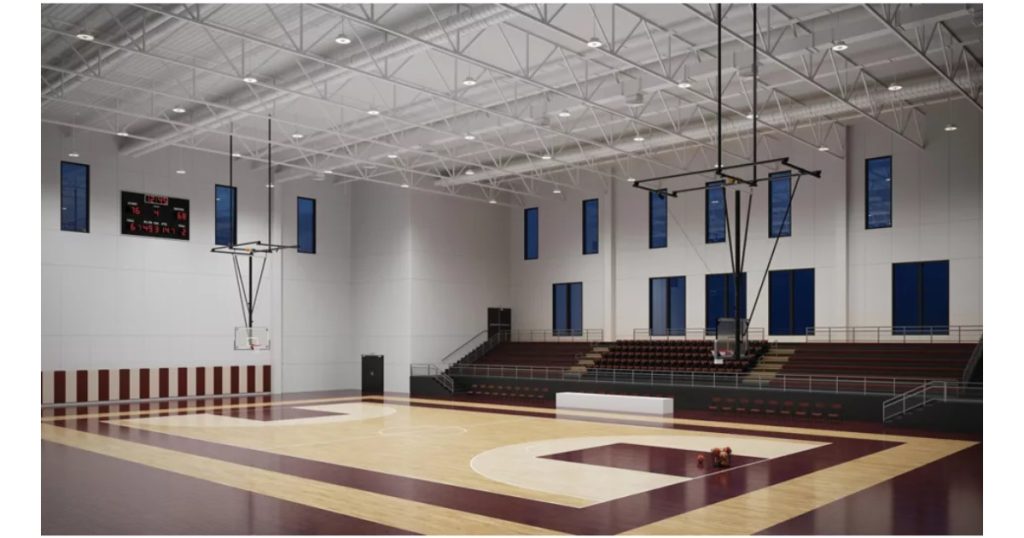

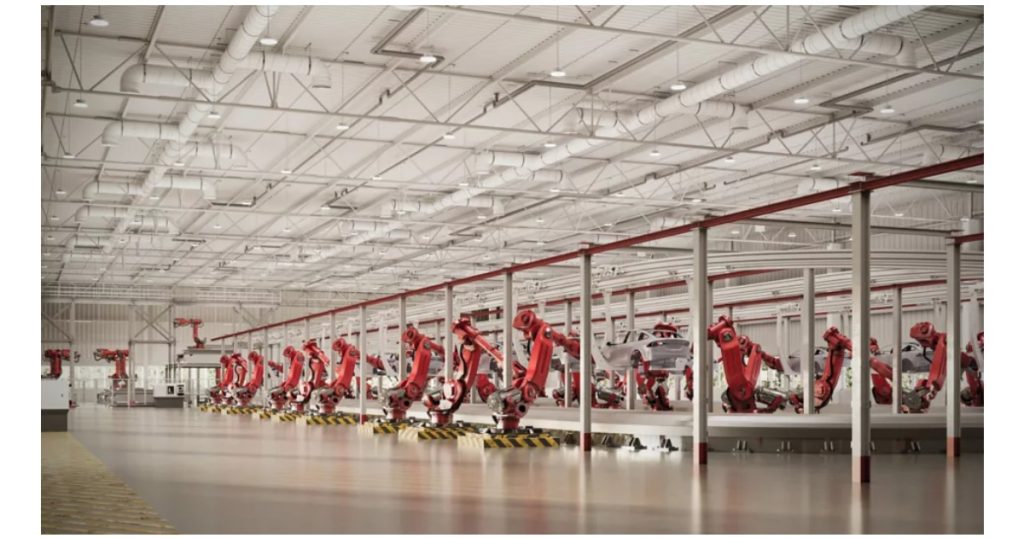

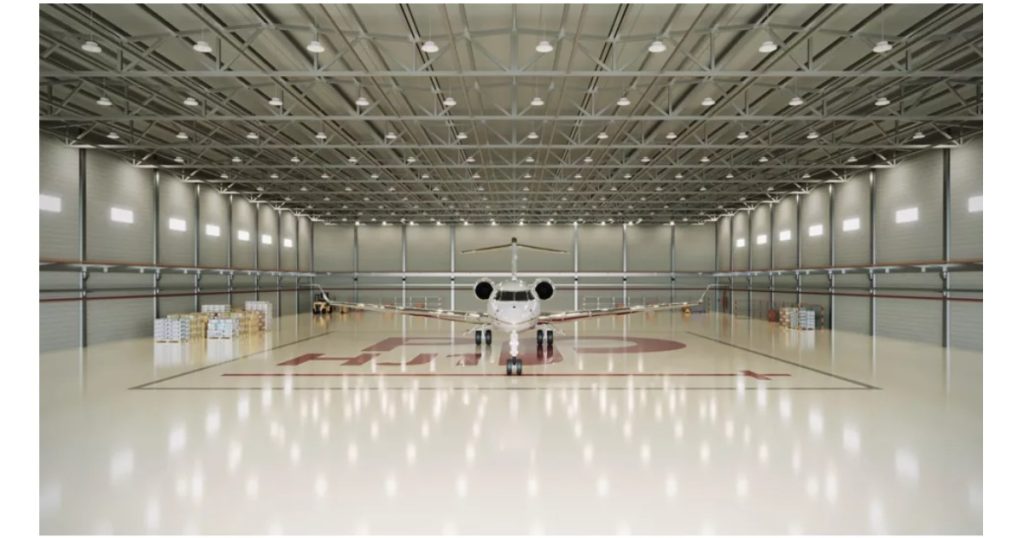

The Elevate Round High Bay is engineered to provide enhanced performance compared to traditional luminaires in demanding commercial and industrial environments. The durable diecast aluminum construction provides durability, optimal thermal control, and longer system life. Precision optics focus light exactly where it’s needed, delivering higher foot-candles with fewer fixtures while reducing both wattage and installation cost. This high bay’s durable diecast aluminum housing is IP65 rated and built to withstand harsh conditions from -40°C to 65°C. Ideal for manufacturing facilities, distribution centers, large indoor, sports/recreation, big box retail, and multipurpose spaces

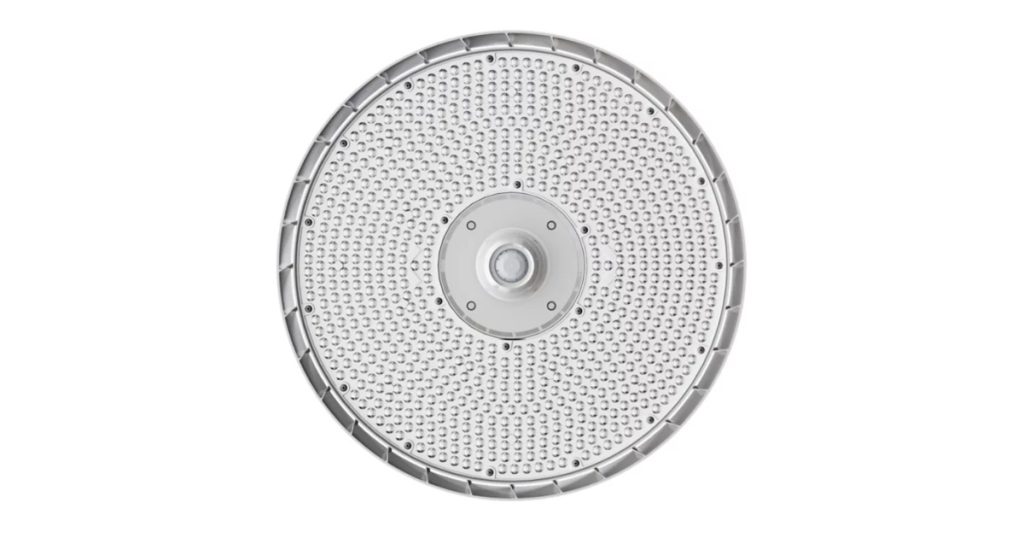

- Precision Dome Optics: Designed with precision dome optics, Elevate puts light where it’s needed, reducing wasted lumens and energy.
- Integrated Emergency Lighting: TruEgress integrated emergency lighting optimized to increase fixture spacing and reduce installation costs.
Features
- UGR (unified glare ratio) as low as 16 without the need for a refractor
- Powder coat finishes are available in white, black, silver and gray
- Numerous integrated control options including WaveLinx LITE, WaveLinx PRO

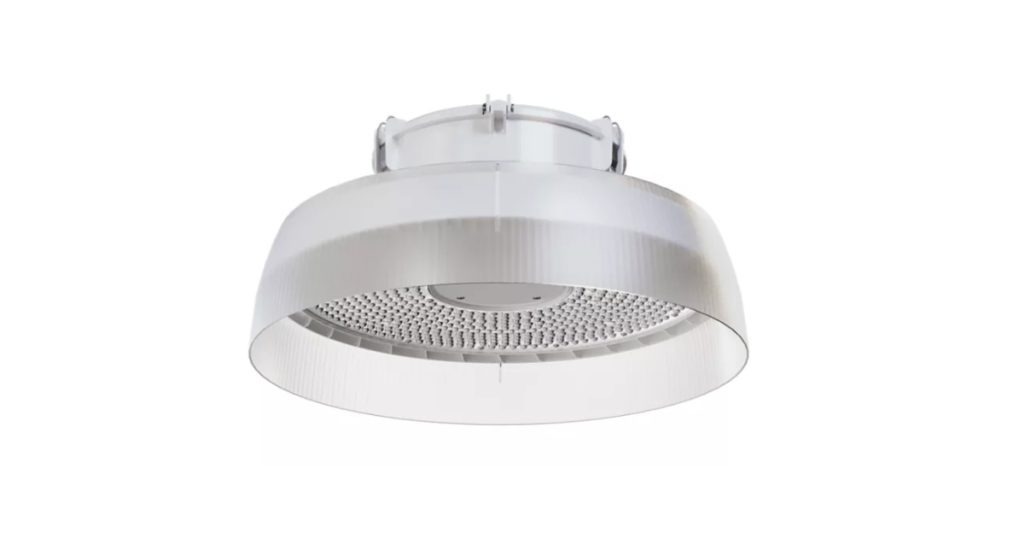

- Delivers up to 60K lumens downlight and up to 4000 uplight lumens
- Best in class optical control delivering more FCs with lower watts

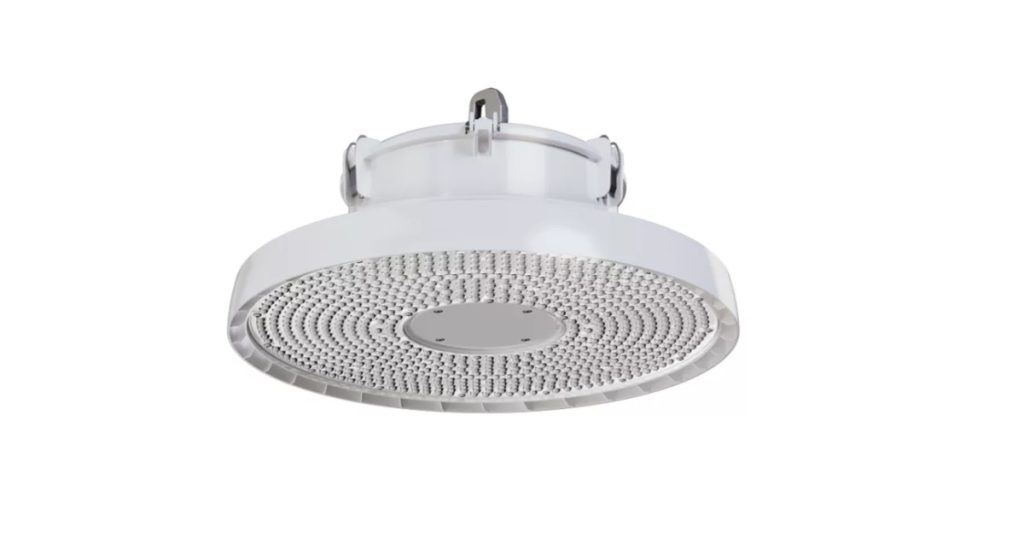

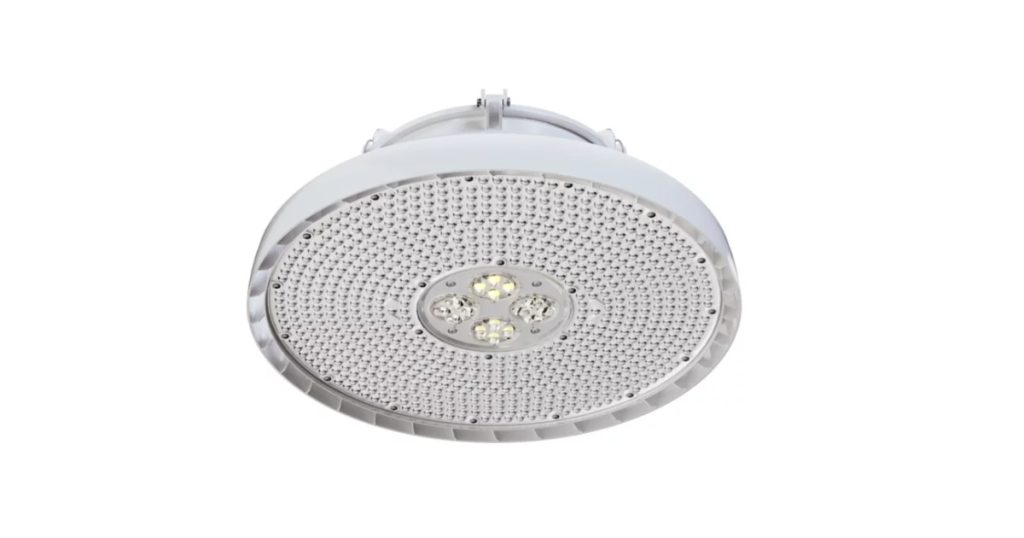

- Round die-cast aluminum housing adds durability and improved thermal control
- TruEgress integrated emergency lights the path of egress with less fixtures and reduced emergency load
Specifications
Construction
- Constructed of die cast aluminum
- Impact protection rating IK10 Housing
Optics
- Precision optics deliver highly efficient illumination, providing higher foot candles with less lumens
- Multiple distribution available for superior performance in key areas: Aisle, Open, and Wall
LED & Light Engine
- Drivers available in 120-277V, 347V and 480V
- 0-10V dimming driver is standard
- Available in 3500K, 4000K, and 5000K in 80 or 90 CRI
- 6kV Surge Suppression Standard. Uplight option is 4kV standard
Emergency Battery Options
- Optional TruEgress Emergency lighting
- 90-minute backup period for code compliance
- Constant power to LED system for controlled, predictable discharge
- Integrated test switch/indicator light installed on fixture
- Integral emergency transfer relay available for generator equipped power systems
Finish
- Standard white, gray, black or silver polyester powder coat finish
- Painted after fabrication for increased durability and corrosion resistance
Mounting

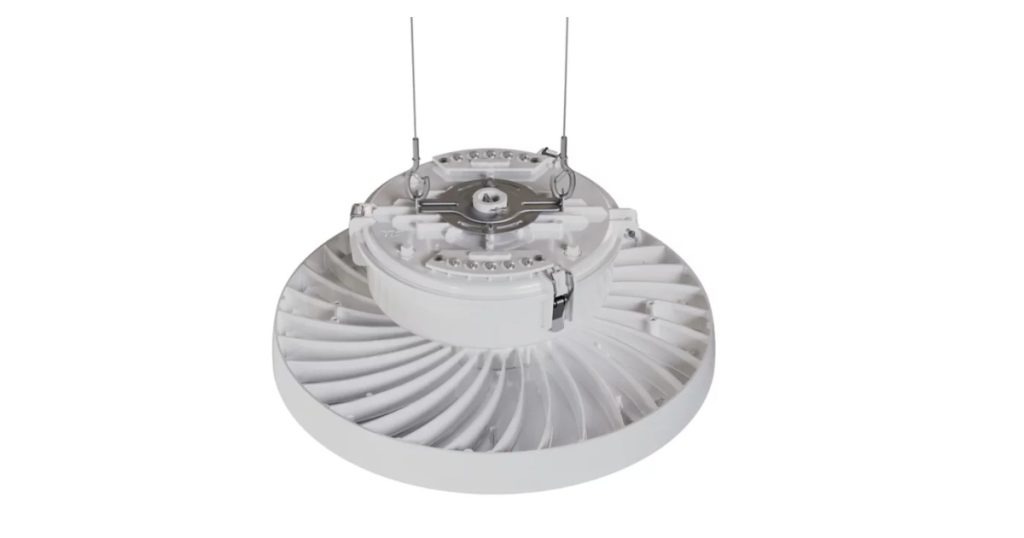

- Designed for suspension mounting
- 3/4″ NPT internal thread with locking set screw
- Adjustable re-align mount optional
Compliance
- cULus listed for wet locations -40ºC to 65ºC ambient environments
- RoHS compliant
- Tested to IESNA LM-79 and LM-80
- Stated life tested to TM21 standards
- NOM Compliant
- IP65 rated
Warranty
- Five-year warranty standard
