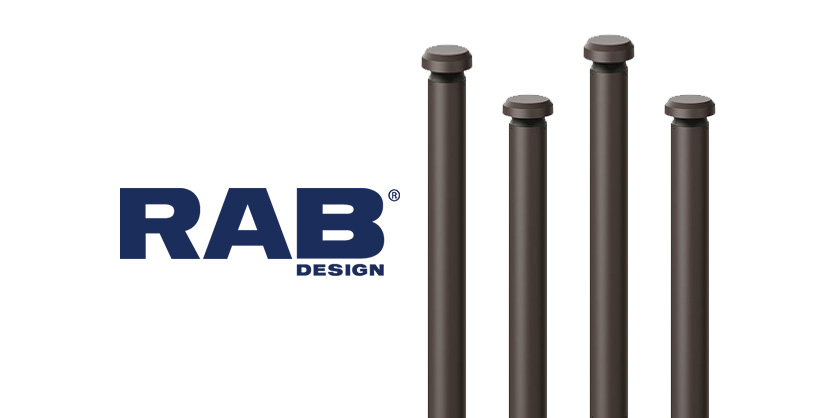

SMT6H-Dark Sky Friendly LED Bollards from RAB Lighting Avoid Uplight and Glare in Outdoor Urban Settings

April 24, 2023

The Summit Series is a dark sky friendly bollard with no uplight and is DLC Luna certified. Available in 2700K, 4000K and 5000K CCT, this bollard series has high performance optics designed to fully eliminate glare for pedestrians and drivers passing by.

LED BOllard 12"
SMT6H12-LED10

Features & Benefits of SMTH6 LED Bollard

LED Bollard 20"
SMT6H24-LED20
  • Aesthetic, slim, modern fixture design.
  • 3 heights to choose from: 12”, 24”, 36”.
  • Full cut-off design eliminates uplight and light pollution. Optics are hidden
    from line of sight limiting glare while creating a comfortable experience
    for passersby.
  • Innovative optic design creates even and uniform light distribution
    across the surface. High performance optics allow for more spacing
    between bollards reducing the number fixtures needed in an install.
  • 2700K, 4000K, 5000K colour temperature options.
  • Custom paint finishes available.
  • Extruded aluminum shaft, cast aluminum head and base with polyester
    powder coat paint finish
  • IP66 rated – Designed to fully protect from dust ingress and
    powerful water jets.
  • IK10 Rated – As per IEC 62262 Standard
  • Twist Lock mechanism with stainless set screws for easy installation.
  • Set of three zinc plated 8’’ long 3/8-16’’ anchor bolts with nuts and washers

Specifications

ModelSMT6H12-LED10SMT6H24-LED20SMT6H36-LED24
Watts82025
Lumens84021002625
Efficacy105105105
Voltage120-277*, 347 V120-277*, 347 V120-277*, 347 V
CCT2700K, 4000K*, 5000K2700K, 4000K*, 5000K2700K, 4000K*, 5000K
Dimming1-10V Dimming1-10V Dimming1-10V Dimming
THD<20%<20%<20%
Power Factor0.950.980.95
Beam DistributionType V (360 degrees)Type V (360 degrees)Type V (360 degrees)
LED Life>50,000 hours>50,000 hours>50,000 hours
Housing FinishBronze*, Custom ColoursBronze*, Custom ColoursBronze*, Custom Colours
Housing DetailsExtruded Aluminum shaft, cast aluminum head and baseExtruded Aluminum shaft, cast aluminum head and baseExtruded Aluminum shaft, cast aluminum head and base
Surge Protection6kV (inbuilt surge suppressor)6kV (inbuilt surge suppressor)6kV (inbuilt surge suppressor)
Height12″24″36″
Shaft Diameter5.3″5.3″5.3″
Operating Temp.-40 to +40 Celsius (-40 to 104 Fahrenheit)-40 to +40 Celsius (-40 to 104 Fahrenheit)-40 to +40 Celsius (-40 to 104 Fahrenheit)
CertificationsETL, Wet Locations, IP66, IK10, DLC, LUNA, DLC 5.1ETL, Wet Locations, IP66, IK10, DLC, LUNA, DLC 5.1ETL, Wet Locations, IP66, IK10, DLC, LUNA, DLC 5.1
