Nixe Flex (Curvable Linear LED) by Eklipse Architectural Lighting

Nixe Flex

Nixe Flex

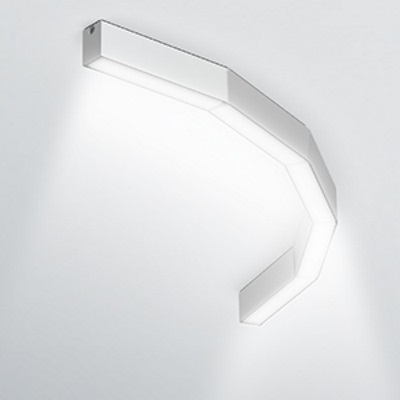

The Nixe Flex is a unique field-curvable linear that measures only 3/8in wide but features the same performance as its straight counterpart. Despite its smallness Nixe Flex still offers five different beams, from 20° to 100° as well as asymmetric.

Available in 27K, 30K, 35K, 40K, the energy consumption can also be customized from 3 up to 6.5 watts adjustable by 0.5 watts.

Nixe Flex is available in 8 different increments from 1’’ to 8‘’, offering a range of minimum radius curve from 3° to 24° in order to fit perfectly into various environments such as a curved wall, rounded bar counter, wide column, vaulted ceiling, or dome.

Features:

      –          Made from high thermal conductive extruded aluminum

      –          Magnet insert that allows for easy installation

      –          Mid power linear LED’s

      –          Dry location only

      –          48” wire length with WAGO quick connector

      –          5-year warranty on parts

      –          CSA/UL/CE approved

For more information:

http://www.eklipselighting.com/nixeflex
