RAB Design: RFK-CT Series – Universal LED Retrofit Kit for Troffers, Flat Panels, Strips & Wraps

August 19, 2026 - RAB Design RFK-CT Series - Universal LED Retrofit Kit for Troffers, Flat Panels, Strips & Wraps

August 19, 2026

RFK-CT Series – Universal LED Retrofit Kit: Designed to Meet Fluorescent Fixture Lighting Standards for Offices, Retails, Industrial & Commercial Applications

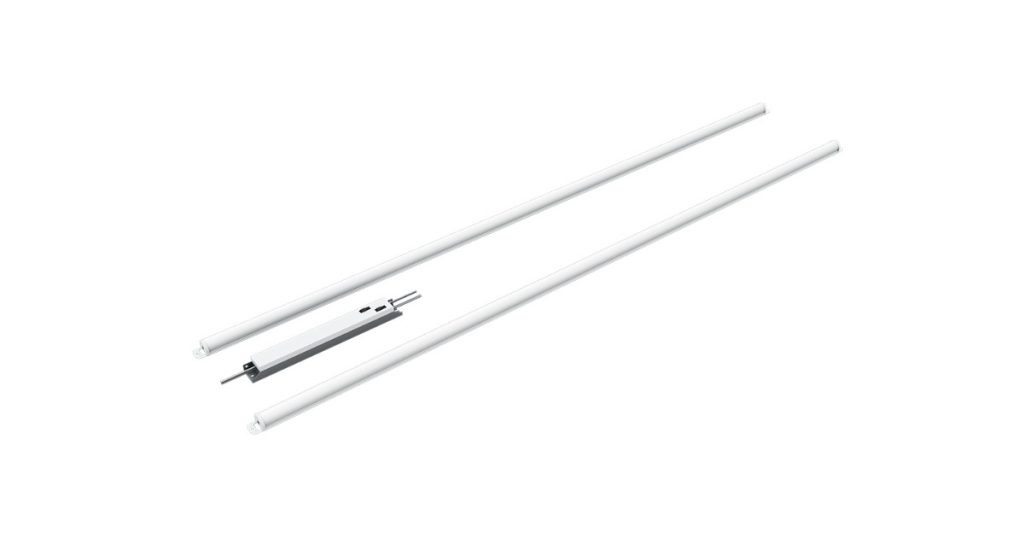

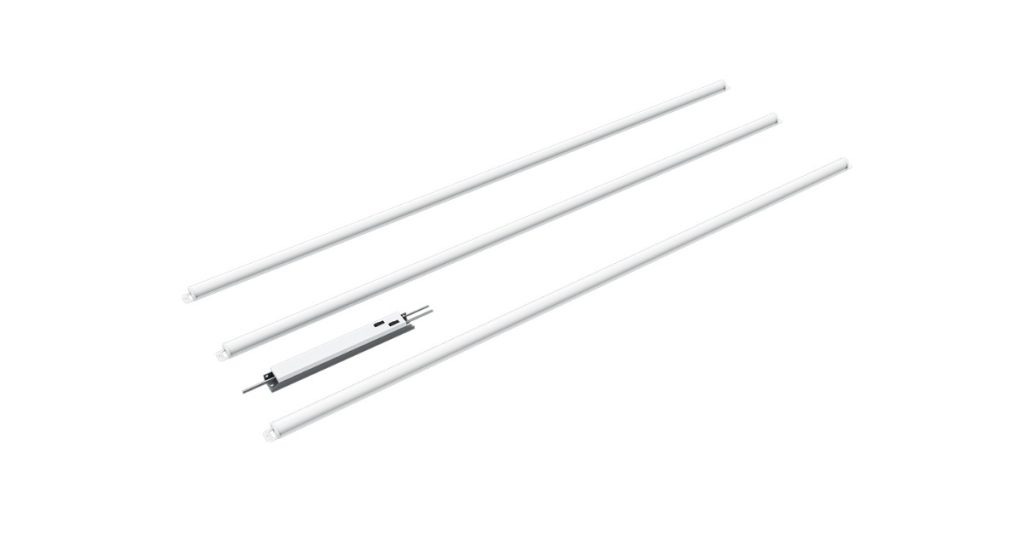

The RFK-CT Series Universal LED Retrofit kit for the troffers, flat panels, strips and wraps features adjustable CCT and wattage settings, allowing the user to customize the lighting to suit any environment. The series is designed to provide maximum efficiency to meet fluorescent fixture lighting standards for offices, retails, industrial and commercial applications.


Features

  • Universal LED retrofit kit for troffers, flat panels, strips, and wraps.
  • Adjustable CCT and wattage settings to allow users to customize the lighting to suit any environment.
  • Offered in 3 variations: RFK-CT14, RFK-CT22, and RFK-CT24
  • Provides maximum efficiency to meet fluorescent fixture lighting standards for offices, retails, industrial and commercial applications.

Specifications

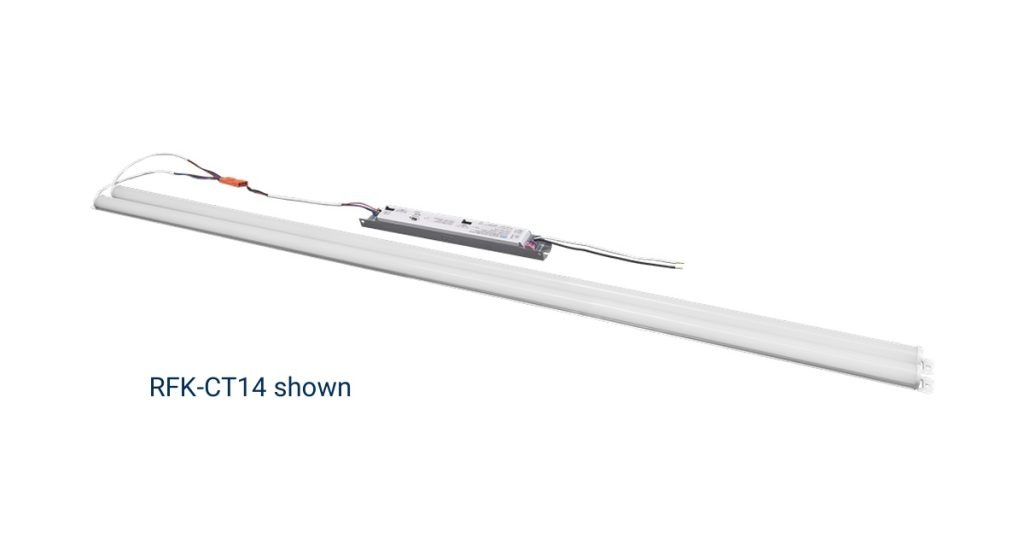

RFK-CT14

Light Output4800/3600/2400lm (Lumen Selectable)
Efficacy120lm/W
CCT3000/4000/5000K (CCT Selectable)
Dimming0-10V (0% to 100% Continuous Dimming, Dim to OFF)*, DALI
LED Lifetime (L70)>100,000 Hrs
CRI>80
Wattage40/30/20W
Voltage120 – 347V (0-10V)* 120 – 277V, 347V (DALI)
Power Factor≥0.9
THD≤11%
Ambient Operating Temperature-20℃ to 40℃ (-4°F to 104°F)
Weight1.73 lbs
LED Lamp Size45.90″ x 0.75″ x 0.94″
MountingMagnetic LED strips for ease of installation Separate set of magnets for installing LED driver
CertificationscULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.1, CSA C22.2 No. 250.0, DLC Standard

RFK-CT22

Light Output3600/3000/2400lm (Lumen Selectable)
Efficacy120lm/W
CCT3000/4000/5000K (CCT Selectable)
Dimming0-10V (0% to 100% Continuous Dimming, Dim to OFF)*, DALI
LED Lifetime (L70)>100,000 Hrs
CRI>80
Wattage30/25/20W
Voltage120 – 347V (0-10V)* 120 – 277V, 347V (DALI)
Power Factor≥0.9
THD≤11%
Ambient Operating Temperature-20℃ to 40℃ (-4°F to 104°F)
Weight1.32 lbs
LED Lamp Size21.70″ x 0.75″ x 0.94″
MountingMagnetic LED strips for ease of installation Separate set of magnets for installing LED driver
CertificationscULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.1, CSA C22.2 No. 250.0, DLC Standard

RFK-CT24

Light Output7200/6000/4800lm (Lumen Selectable)
Efficacy120lm/W
CCT3000/4000/5000K (CCT Selectable)
Dimming0-10V (0% to 100% Continuous Dimming, Dim to OFF)*, DALI
LED Lifetime (L70)>100,000 Hrs
CRI>80
Wattage60/50/40W
Voltage120 – 347V (0-10V)* 120 – 277V, 347V (DALI)
Power Factor≥0.9
THD≤11%
Ambient Operating Temperature-20℃ to 40℃ (-4°F to 104°F)
Weight2.65 lbs
LED Lamp Size45.90″ x 0.75″ x 0.94″
MountingMagnetic LED strips for ease of installation Separate set of magnets for installing LED driver
CertificationscULus Listed for Canada and USA, per UL 1598, CSA C22.2 No. 250.1, CSA C22.2 No. 250.0, DLC Standard

For more information on RAB Design lighting solutions HERE

August 19, 2026 - RAB Design RFK-CT Series - Universal LED Retrofit Kit for Troffers, Flat Panels, Strips & Wraps

Source

RFK-CT Series RFK-CT Series RFK-CT Series
