J & H Style LED Orb Shape Track Head Lighting from Satco Offers Seamlessly Integration into Office, Hospitality & Residential Applications

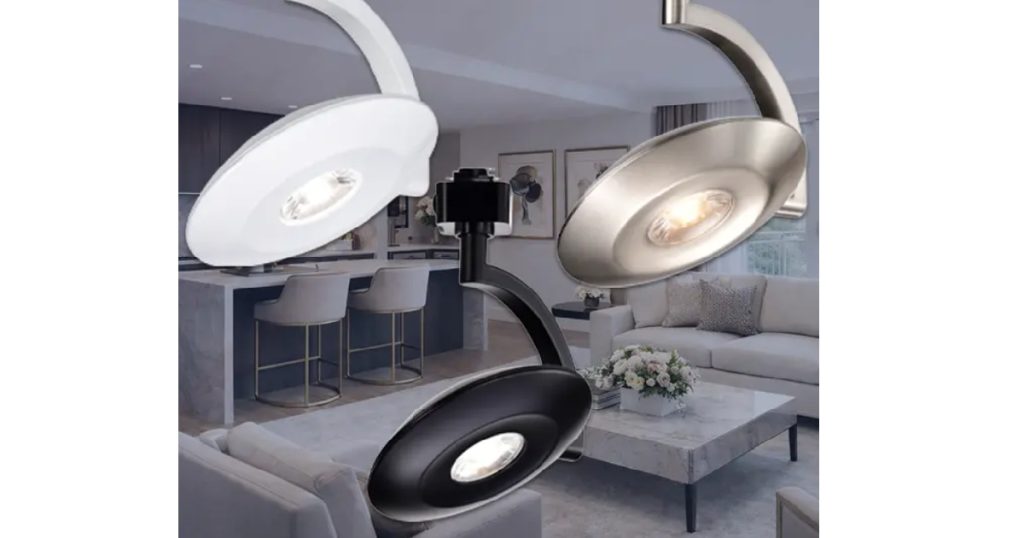

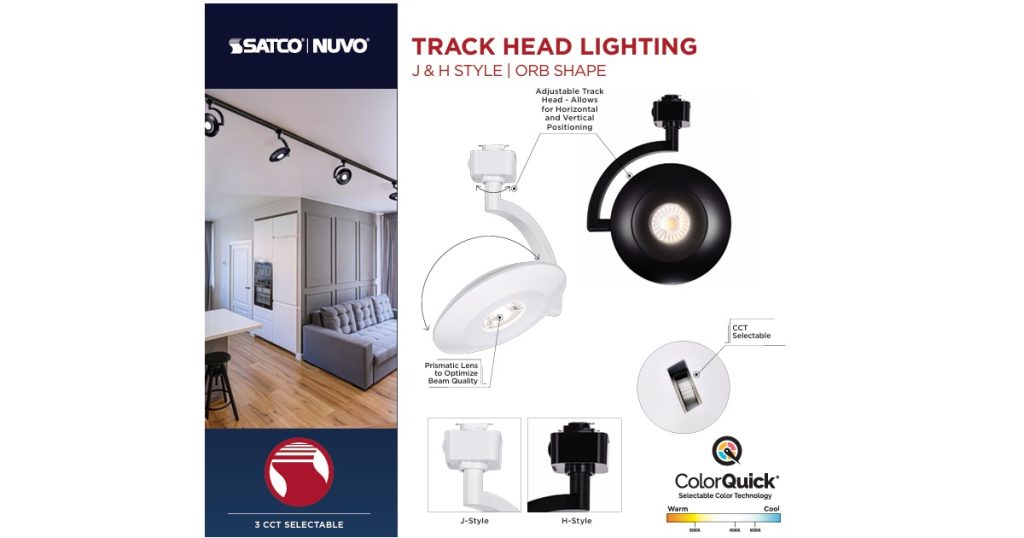

SATCO|NUVO’s LED Orb Track Heads are compact, modern fixtures designed to deliver adaptable, controlled illumination. These Orb-shaped heads feature a very contemporary design with a swivel arm and a 355° rotating head for precise aiming. Each track head includes a recessed CCT switch, allowing selection between 3000K, 4000K, and 5000K to accommodate varying lighting requirements, along with two beam spread options—24° and 36°—for targeted or wider light distribution.

A low-profile track adapter, compatible with both H-track and J-track systems, maintains a clean, streamlined appearance. Available in white, black, and brushed nickel finishes, the Orb track head integrates seamlessly into contemporary interiors and is well suited for office, hospitality, and residential applications.

May 26, 2026 - SATCONUVO LED Orb Shape Track Head Lighting - J & H Style

Features

  • 3 CCT Selectable
  • 90 CRI High Quality Light
  • J-Track & H-Track Compatible Models
  • 24° & 36° Beam Spread Options
  • Low-Profile Adapter with 355° Rotation

Specifications

  • Input Voltage: 120V
  • Wattage: 12W
  • Replacement Wattage: 75W
  • Max Lumens: 1020
  • Input Current: 0.12A
  • Frequency: 60Hz
  • Power Factor: 0.9
  • THD: <40%
  • Efficacy: up to 85 LPW
  • CRI: 90
  • CCT Selectable: 3000K/4000K/5000K
  • Location Rating: Dry
  • Dimmable: Phase-Cut dimmable down to 10%
  • Ambient Operating Temperature: -20°C (-4°F) to +40°C (+104°F)
  • IP Rating: IP20
  • Construction: Aluminum
  • Lens Material: Poly methyl methacrylate (PMMA)
  • Functional Life: 50,000 Hours
  • Warranty: 3 Years
  • Approvals: cETLus

Applications

  • Restaurants
  • Hospitality
  • Offices
  • Retail
  • Accent Lighting

Featured Models

  • ORB 12W 3CCT 24 DEG WHITE: JH5070
  • ORB 12W 3CCT 24 DEG BLACK: JH5071
  • ORB 12W 3CCT 24 DEG BR NICK: JH5072
  • ORB 12W 3CCT 36 DEG WHITE: JH5073
  • ORB 12W 3CCT 36 DEG BLACK: JH5074
  • ORB 12W 3CCT 36 DEG BR NICK: JH5075
  • ORB 12W 3CCT 24 DEG WHITE: TH670
  • ORB 12W 3CCT 24 DEG BLACK: TH671
  • ORB 12W 3CCT 24 DEG BR NICK: TH672
  • ORB 12W 3CCT 36 DEG WHITE: TH673
  • ORB 12W 3CCT 36 DEG BLACK: TH674
  • ORB 12W 3CCT 36 DEG BR NICK: TH675

For more information on Satco lighting solutions HERE
