Gescan: Signify – HCY Series Round LED High Bay
April 16, 2025

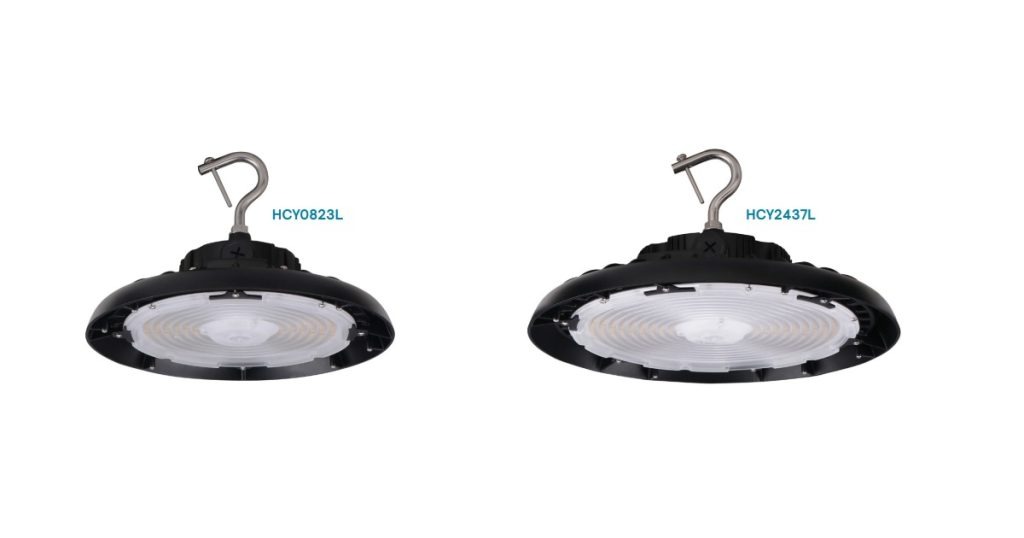

The HCY Series LED High Bay Provides Versatile Functionality
The Day-Brite / CFI HCY Series sealed high bay is an ideal choice where functional high bay lighting is needed with an aesthetic appeal. The round form factor lends itself to retail and institutional applications. Some features include field CCT and lumen selectable options, where default CCT setting is 4000K, default lumen setting for small is 23000lm and for large is 37000lm. The HCY Series LED High Bay is IP65 and NEMA 4X rated, as well as IK08 impact rated.
Features
- Die cast frame and driver containment housing.
- Corrosion resistant black and white finish.
- Clear polycarbonate lens protects LEDs.
- Heavy duty hook provided for connection to customer-supplied suspension.
- Driver surge protection is 4kV L-N and 6kV LN-GND.
- Lumen maintenance up to 70% (L70) at 50,000 hrs.
- Default HCY-SENSOR settings are 1 minute timeout to 20% dim level, then 1 minute timeout to off. HCY-REMOTE must be used to change default sensor settings.
- HCY-SENSOR may be used up to 50ft mounting height. Note that using the sensor together with the reflector will affect sensor performance.
- Exposed leads for wiring connection with sleeving for environmental protection.
- 6′ cord provided for power connection and dimming connection.
- 5-year limited luminaire warranty.
Specifications
| Brand Name | Day-Brite / CFI | Voltage Rating | 120-347V |
| Housing Finish | Black | DLC | Y |
| DLC Code | S-NNFDZL | DLC Class | Premium |
| DLC Version | 5.1 | Series | HCY Series |
| Average Life | 50,000 hrs | Lumens | 24,000/32,000/37,000lm |
| Color Temperature | 3500/4000/5000K | Color Rendering Index (CRI) | 80 |
| Lens Type | Clear polycarbonate lens | Standards | cULus listed, RoHS compliant |
| Application | Retail and institutional applications | UPC | 190096197156 |
