GVA: STR10 Color-Changing Linear Wall Washing & Grazing LED Lighting

April 25, 2025 - GVA_ STR10 Color-Changing Linear Wall Washing & Grazing Exterior LED Lighting

April 25, 2025

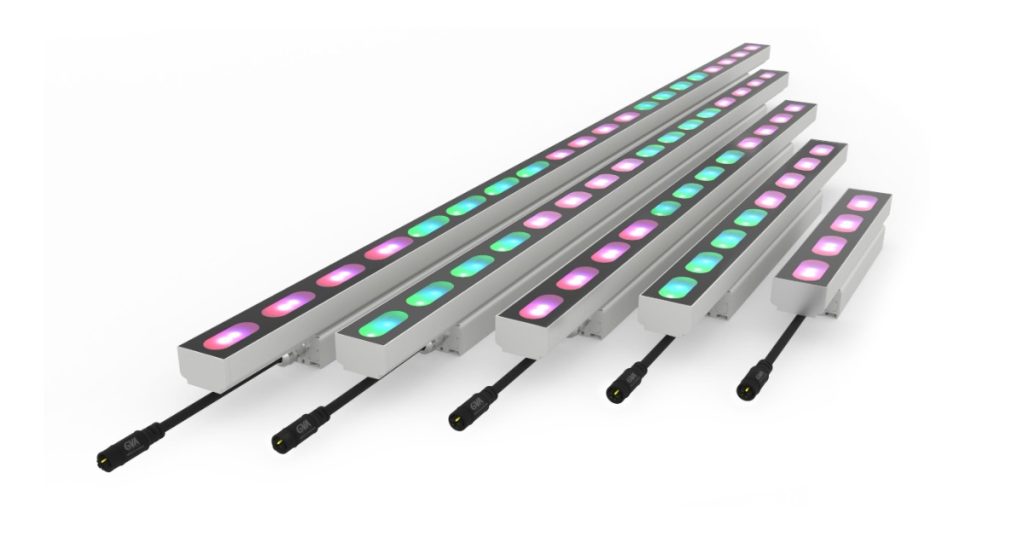

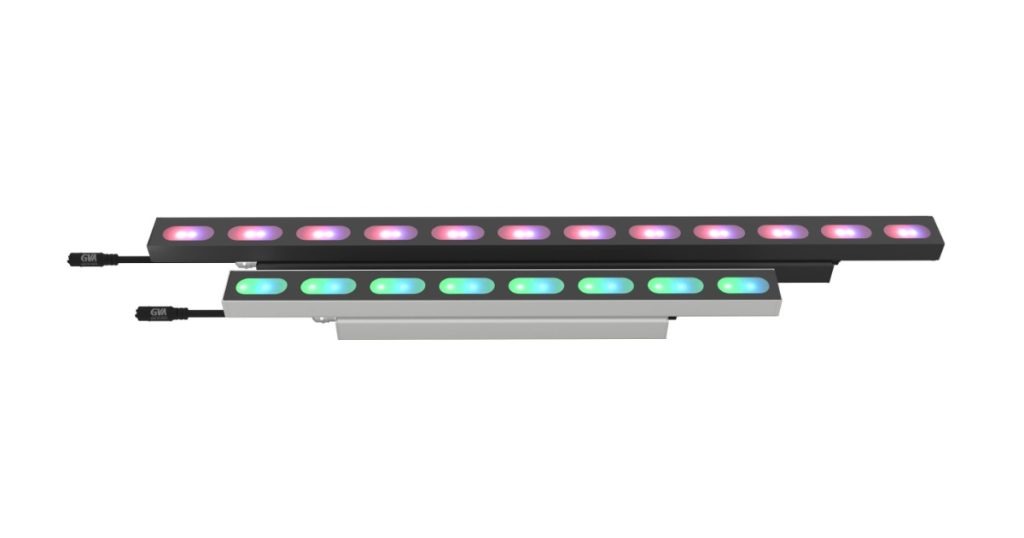

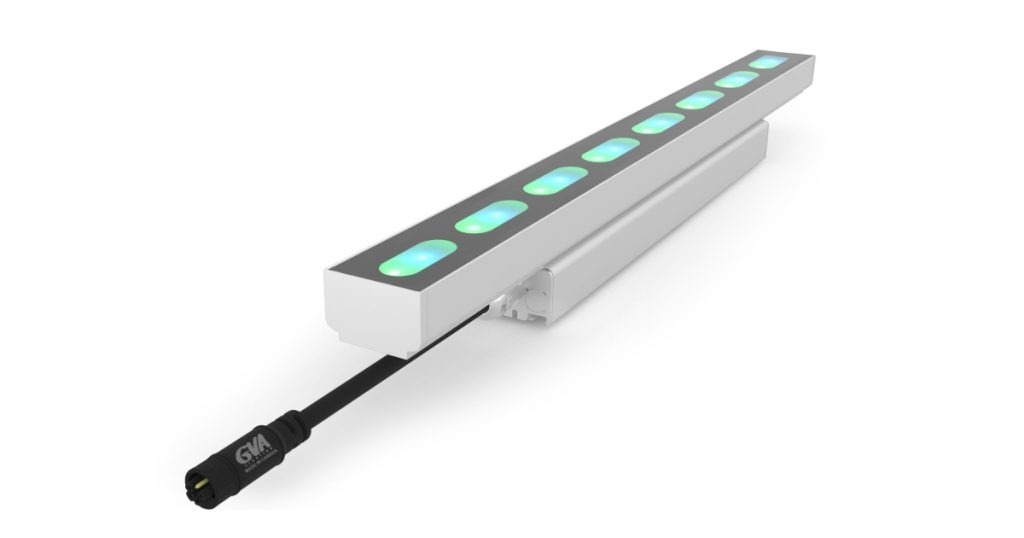

STR10 Color-Changing Linear Wall Luminaire Delivers Performance & Control

STR10 COLOR CHANGING is the latest generation linear luminaire in the STR product series. Built on the award-winning COLOR-STREAM platform and controlled via Power-Data Converter PDC-G5, STR10 delivers excellent performance and outstanding flexibility for architectural wall washing and grazing applications.

Experience communication speeds up to 16 times faster than DMX, pixel resolution as low as 300mm (12 in), liquid-smooth dimming and transitions. STR10 features COLOR-AMP and INFINITY technologies, setting new standards in both lumen output and maximum circuit lengths – up to 277 meters (912ft). Available in INFINITY, AC or ELV input voltages.

GVA_-STR10-Color-Changing-Linear-Wall-Washing-Grazing-Exterior-LED-Lighting

Features

  • STR10 is a compact size, only 49 mm (1.9 in) x 61 mm (2.4 in)
  • High power luminaire up to 15 W/300 mm (1 ft)
  • Up to 789 lumens per 300 mm/1 ft
  • Built-In GVA’s Color-Amp Technology with accurate color control
  • Down to 300 mm (12 in) pixel resolution
  • COLOR-STREAM platform delivers high speed communication (6.25 Mbps), up to 120 frames per second refresh rate, and 12bit dimming resolution
  • Power and Data through-wiring for end-to-end connection via sealed push lock connectors
  • Up to 278-meters (912 ft) lighting circuit enabled by GVA’s INFINITY technology
  • Up to 100-meter (328 ft) leader or jumper cables
  • LED pitch is maintained between luminaires to eliminate dark spots
  • Optional in field dual power selection
  • Wide range of operating temperatures: -40°C to +50°C (-40°F to +122°F)

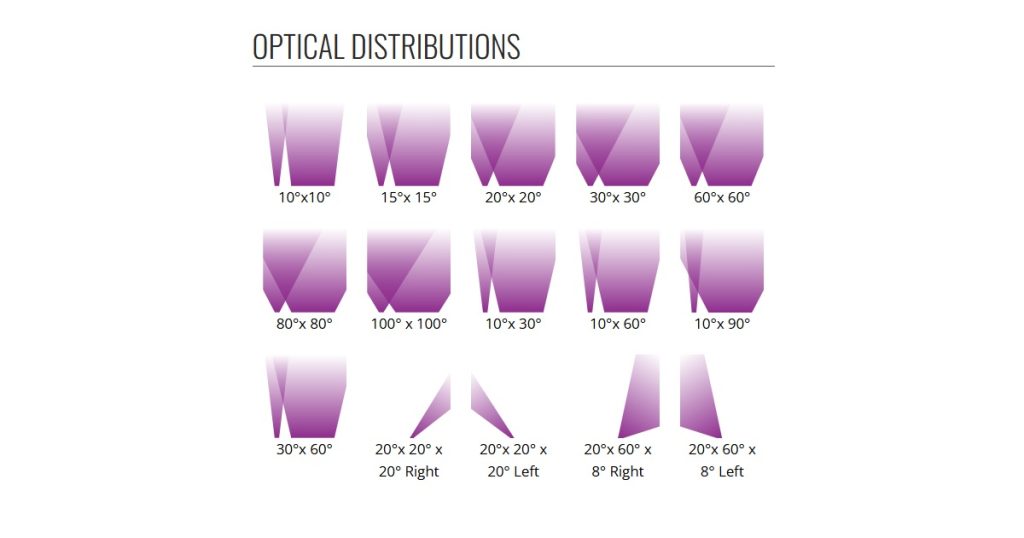

  • 10° minimum beam angle (FWHM)
  • Operating temperatures: -40°C (- 40°F) to + 50°C (122°F)
  • Inherent progressive thermal protection
  • 5 year limited warranty
  • IP66 rating

Specifications

  • DELIVERED LUMENS:  730 lm/ft (2,395 lm/m)
  • LIGHT SOURCE: 6 x High Power LEDs /300 mm (1 ft)
  • CRI: >80
  • POWER: 5W, 10W, or 15W /300 mm (1 ft)
  • INPUT VOLTAGE:INF (380 V DC), ELV (48 V DC), or AC (277 V AC, 240 V AC, 230 V AC, 208 V AC, 120 V AC, and 100 V AC) input
  • SIZE (WxH): 49 x 61 mm (1.9 x 2.4 in)
  • LENGTH: 300, 600, 900, 1200, or 1500 mm (1, 2, 3, 4, or 5 ft)
  • WEIGHT: 0.7 kg / 300 mm (2.2 lbs/ 1ft)
  • ADDRESSABILITY: 300 mm (1ft)
  • CONTROL:  Diverse range of communication protocols via GVA’s Power-Data Converter PDC-GEN5: Art-Net 4, sACN, DMX-512A, DALI 2
  • PROJECTED LIFETIME: L70 B50: 100,000hrs @ Ta 30°C / 86°F
  • OPERATING TEMPERATURE: -40°C to +50°C (-40°F to +122°F) hot environment and -40°C to +30°C (-40°F to +86°F) for normal environment
  • ENVIRONMENT: Dry, Damp or Wet Locations, 0-100% humidity
