Liteline Genesis: High Performance Commercial LED Recessed Series

Liteline Genesis

Nov 3, 2020

Introducing Liteline’s most powerful fixture yet, punching out 9000 lumens at 90 CRI; Genesis. Featuring WET location rating, smooth dimming, and Energy Star, this luminaire is perfect for commercial applications such as airports and shopping centers.

This fixture is a 6″ high performance commercial recessed downlight, combining 90 CRI standard high power LEDs, dimmable driver and high reflectivity spun aluminum reflector. Key features are best in class optical control, easy to access field changeable optics, wet location rated IP66 construction and screw operated vertical adjustment.



SELECT YOUR COLOR TEMPERATURE & SIZE
Select Color Temperature & Size

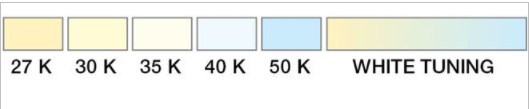

GENESIS is available in 27 K, 30 K, 35 K, 40 K, and 50 K, as well as white tuning. Available in 4″ and 6″ round or square, as well as 8″, 10″, and 12″ round.

FIELD CHANGABLE OPTIONS
Field Changeable Options









Easily remove the optic in the field to gain access to service the fixture or to tighten the fixture to the ceiling rather than using spring clips.

New Construction, and Architectural C-Channel Brackets are available for 4″, 6″, and 8″, while Remodel is available for all GENESIS sizes.

Key Features:

Upper optical chamber: Field changeable precision spun faceted aluminum reflector. Available beam angles (17 / 26 / 36 /50). Optical chamber is sealed by gasketed twist and lock semi-diffuse polycarbonate lens providing wet location rating (IP66) by default.

Lower optics: Optical chamber is constructed with precision spun smooth aluminum reflector. Reflector is self flanged parabolic shape providing high angle cut-off and visual comfort. Available in semi-specular, specular and painted finishes.

Construction: Reflector is mechanically fastened to heat sink and has screw operated vertical adjustment to ensure secure, safe mechanical sandwich with ceiling material. Compatible with ceiling thicknesses from 1⁄8″ to 3″. Passively cooled extruded aluminum heat sink prolongs LED life by ensuring thermal dissipation. Gasketed trim and twist and lock semi-diffuse polycarbonate lens provides wet location rating (IP66) by default.

Go HERE for more information.
