Surface Mounted PCB Connector with Push-In Connection Technology

Wieland










April 18, 2018

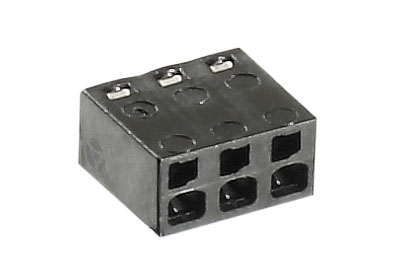

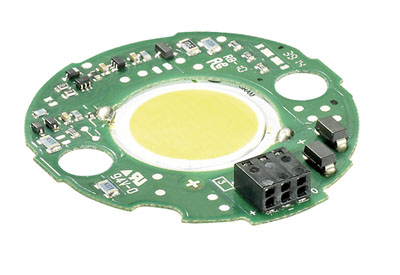

Wieland announces its first surface mounted PCB connector series with push-in connection technology. The 7060 SMD (surface mounted device) is a compact and powerful PCB terminal designed for small electronic devices such as commercial appliances, control units, or LED applications. It’s compact size saves critical space on circuit boards while delivering power safely and efficiently.

Wieland



The push-in technology is a tool-free connection type offering considerable time savings during installation. Integrated test connections also allow for quick testing

The 7060 SMD can be used with through hole reflow soldering process (THR), is available for order in 2 to 4 pole configurations, and as “Tape on Reel” for quick and fully automatic retrieval. Sample test boards are also available. of the electrical connection. With a height of only 4.14 mm and a 2.5 mm pitch, the 7060 SMD is the most compact PCB terminal with a powerful current carrying capacity of up to 9 amps and a voltage rating of up to 150 volts.

For additional information, download the PCB for LED applications brochure.
