STANPRO: WAY – LED Steplights With or Without Motion Sensor & Photocell

June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell

June 12, 2025

This Is the WAY: Illuminating Your Every Step

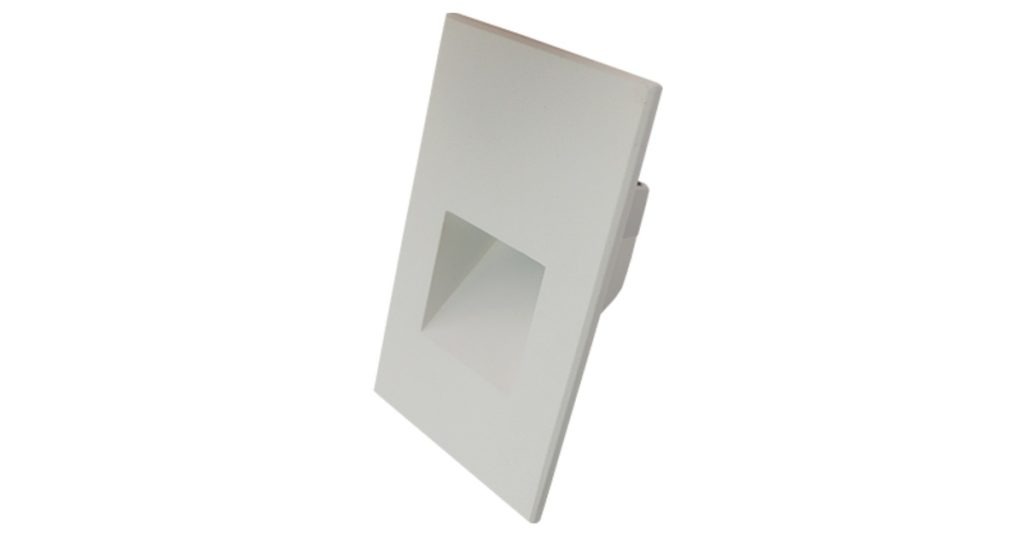

The WAY Steplights combine durability with a sleek and modern appearance. They are designed to create an inviting atmosphere by enhancing the aesthetics of a space and accentuating architectural features as well as key focal points. The WAY LED Steplights are suitable for both indoor and outdoor applications, these luminaires can be integrated into a variety of residential and commercial applications.

  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
  • June 12, 2025 - STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell

    • Features & Specifications

    Construction

    Physical Characteristics

    • Durable die-cast aluminum housing
    • Sleek profile, luminaire will not protrude from wall

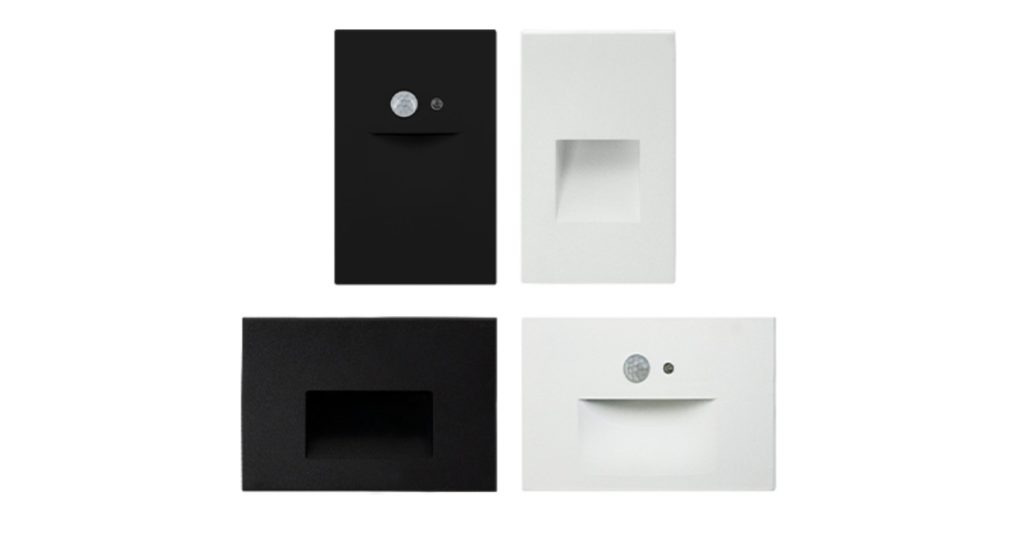

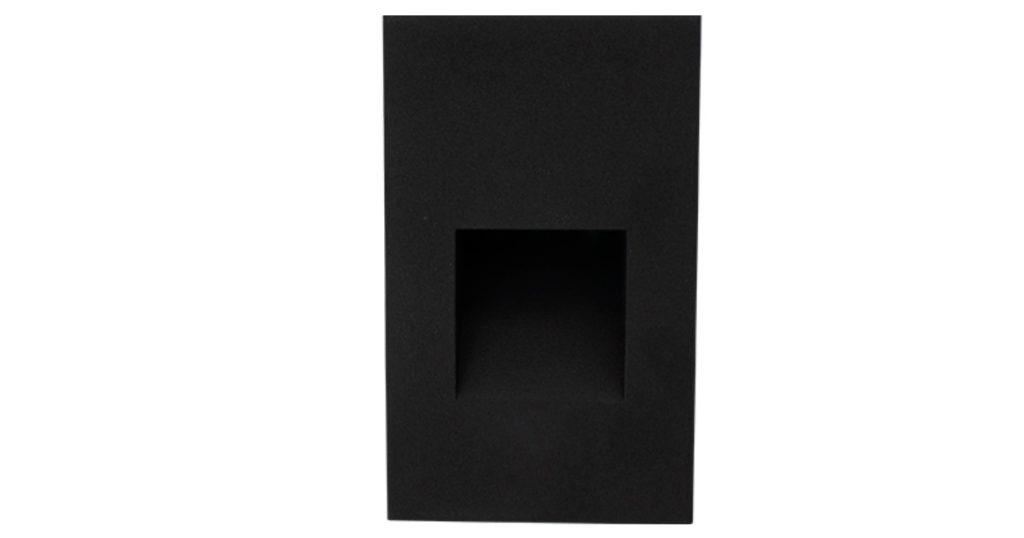

    • White and black finish available
    • Acrylic lens with frosted finish
    • Horizontal or vertical installations available

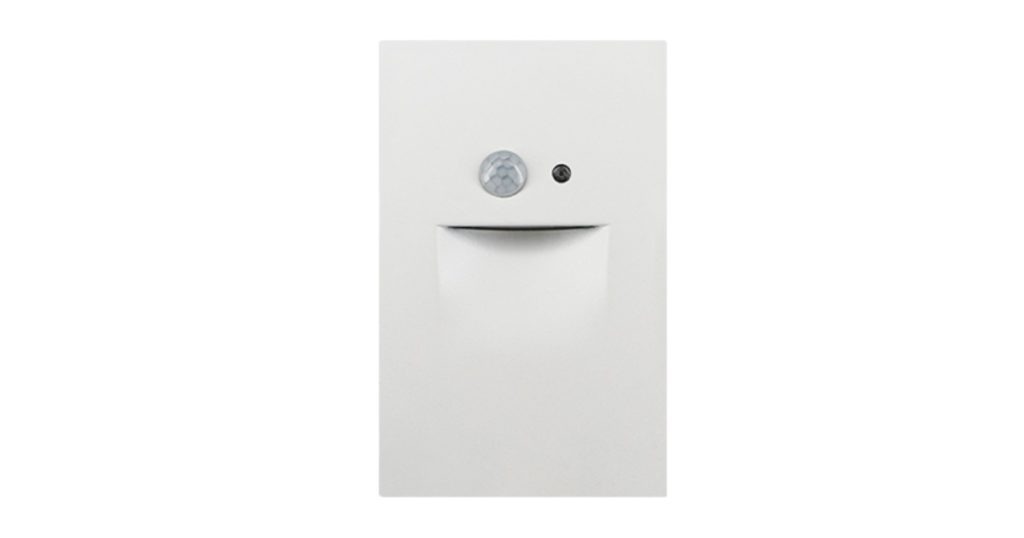

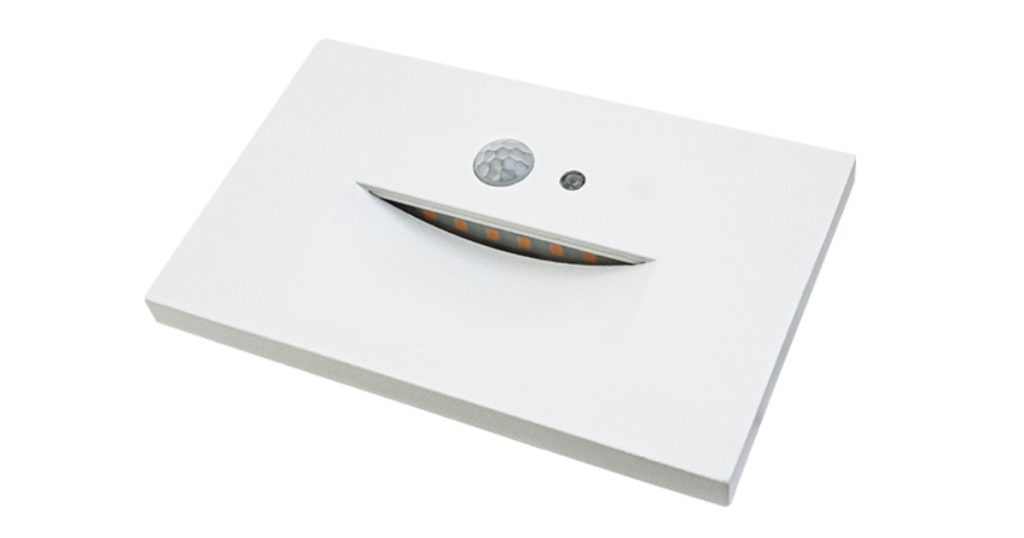

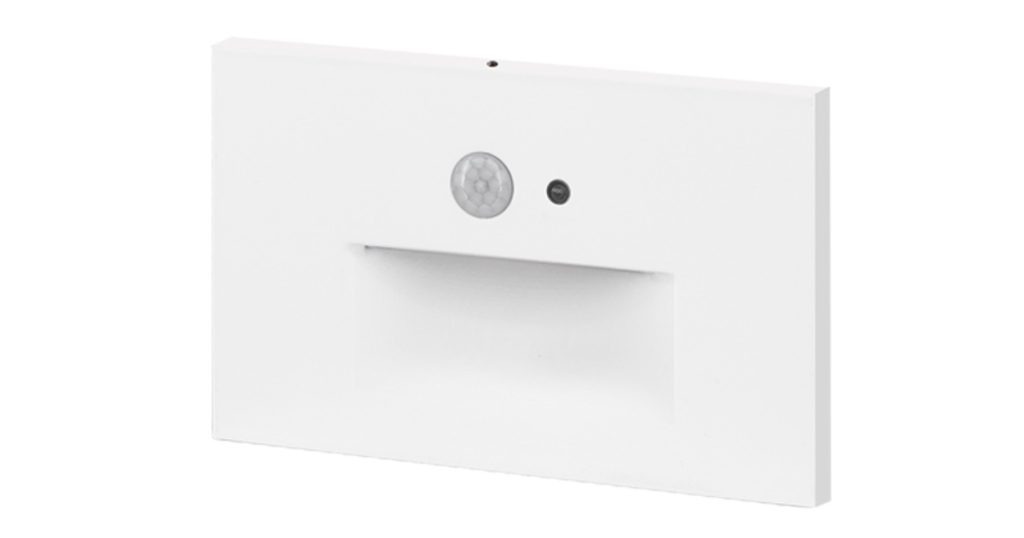

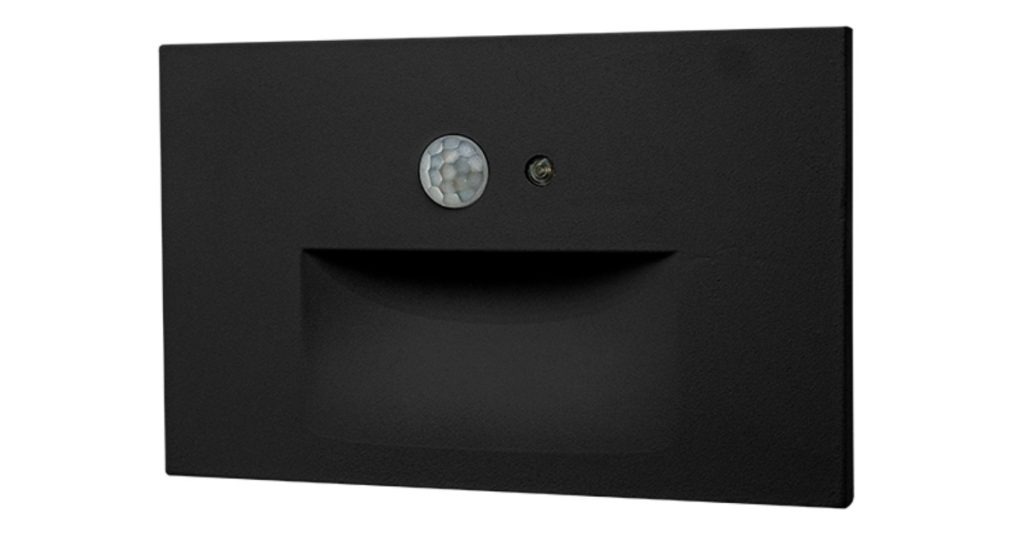

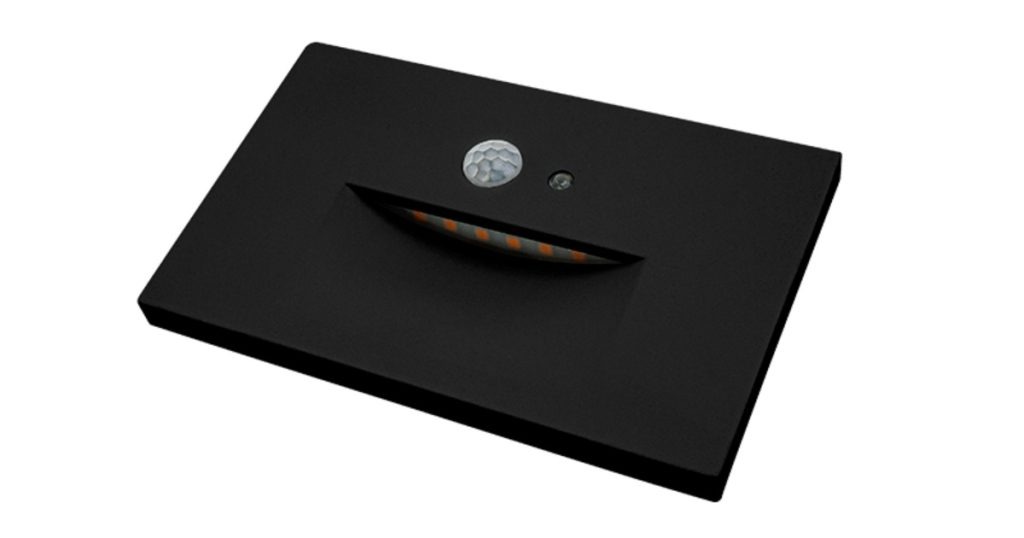

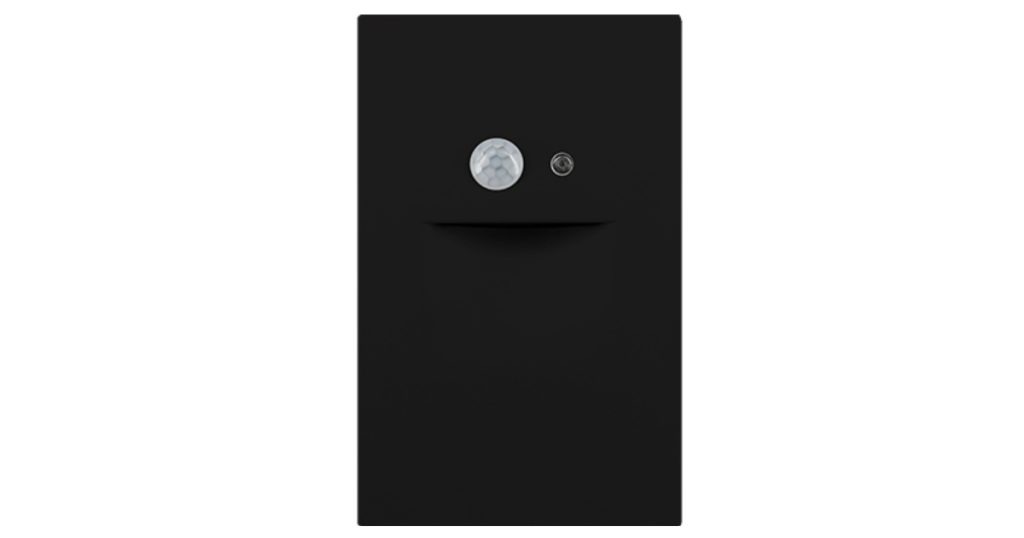

    • Select models offered with integrated PIR motion sensor and photocell

    Mounting

    • Recessed, wall-mounted
    • A 2″x 4″ deep electrical junction box is recommended
    • Daisy Chain: Up to 20 fixtures
    • Suitable for both indoor and outdoor applications
    • Outdoor Installation: To ensure installation is properly sealed, caulking is required along with the use of waterproof junction box. Refer to installation sheet for details.

    Performance Data

    • Available in 3 000 K single color temperature
    • 90+ CRI for true color accuracy
    • Electrical ratings: 120 V
    • Estimated life of over 50 000 hours to L70
    • Dimming for step lights without sensor only: Phase cut (ELV / Triac)
    • Operating temperature:
    • 30 °C to 40 °C (-22 °F to 104 °F)

    PIR Motion Sensor & Photocell

    PIR Motion Sensor

    • Automatically turns to standby mode when movement is not detected
    • When motion is detected, light automatically turns ON, and will turn OFF after 1 minute if the space is vacated

    Photocell

    • Detecting ambient light changes will automatically turn the fixture ON or OFF
    • No manual operation is required (For sensor function, please see diagram below for further details)

    Detection Area

    • 45° angle detection
    • For detection range, please see diagram below for further details

    Compliances

    • cETLus listed for wet location
    • Meets requirements of ICES-005 issue 5 class B for use in residential applications
    • IP65
    STANPRO WAY - LED Step Lights With or Without Motion Sensor & Photocell
