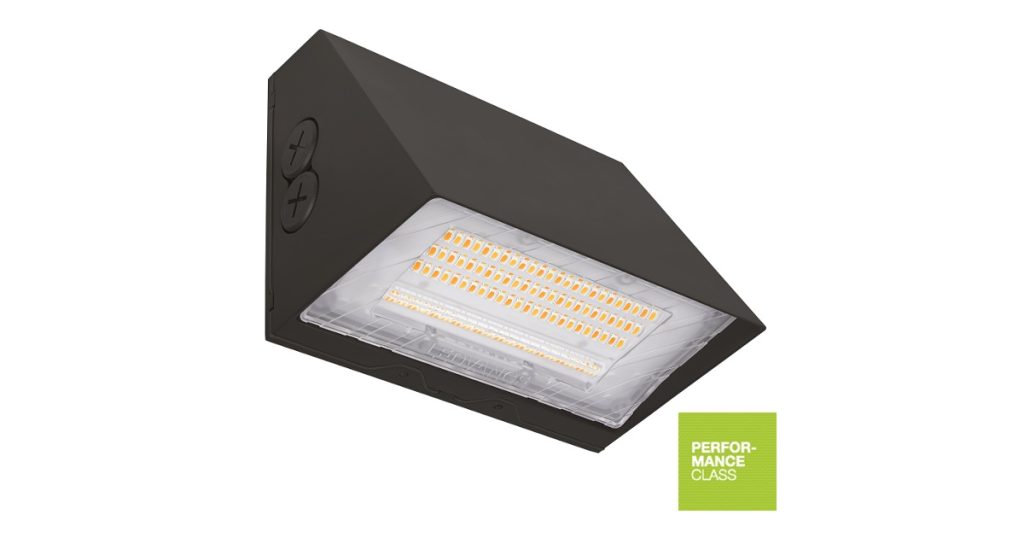

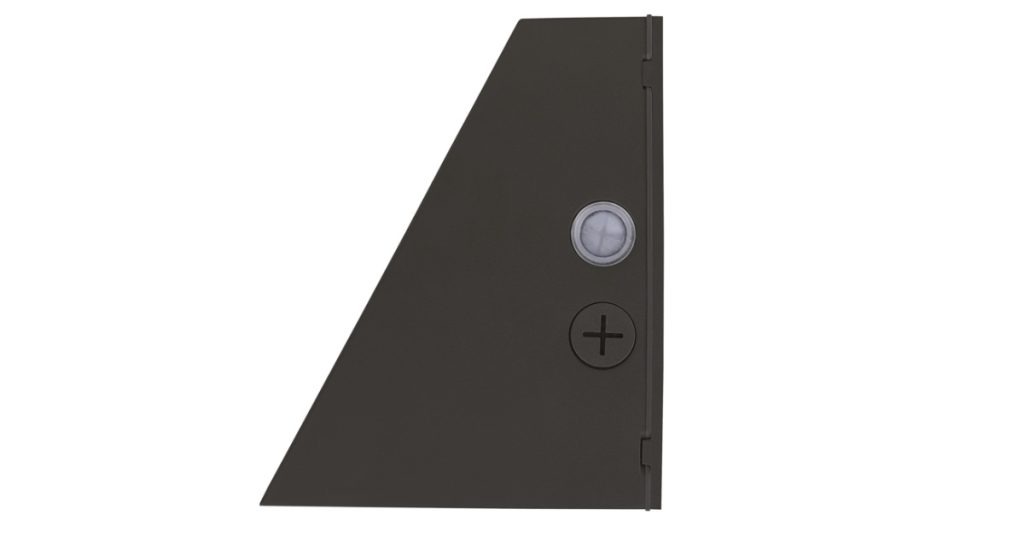

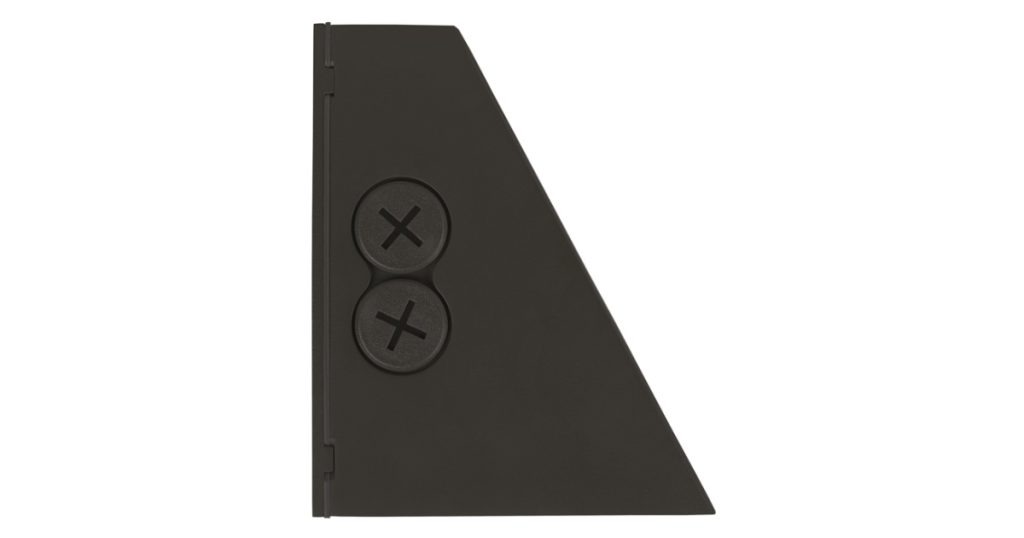

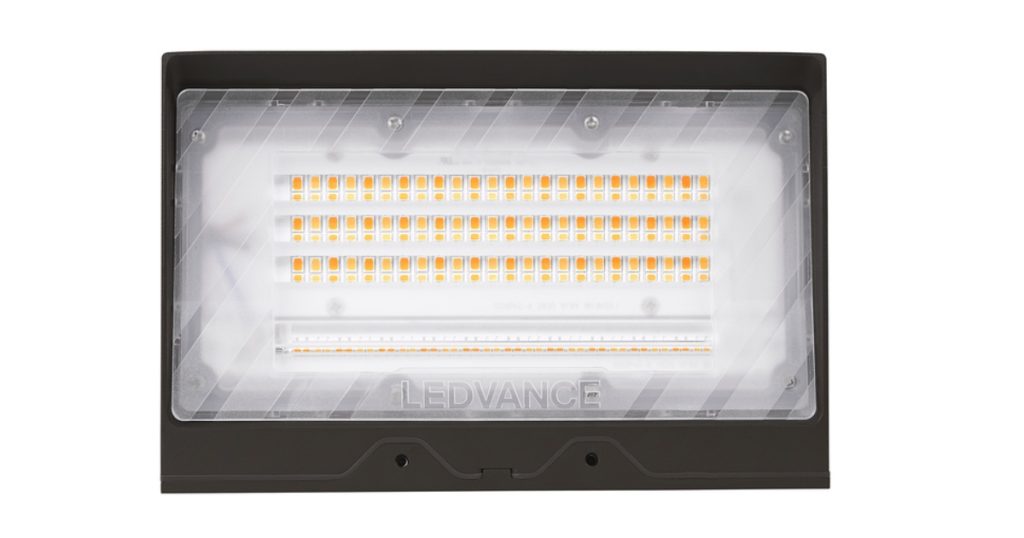

LEDVANCE: OPTI-SELECT Wall Pack 30W 120-347V D 8 3CCTWARM ADJ BZ P

August 17, 2026 - LEDVANCE Wall Pack Opti-Select 30W 120-347V D 8 3CCTWARM ADJ BZ P

August 17, 2026

LEDVANCE Performance Class OPTI-SELECT Wall Pack Cutoff: Performance Without Compromise, Flexibility Without Complexity

The LEDVANCE Performance Class OPTI-SELECT Wall Pack Cutoff gives professionals one adaptable platform for smarter outdoor lighting design. Designed to simplify installations, reduce SKUs, and deliver the right light for every application—from municipal upgrades to complex site projects.


Product Features

  • OPTI-SELECT: Adjustable types 2, 3, and 4 distribution, no lens swap needed
  • Up to 150 LPW
  • CRI > 80
  • Selectable wattage and lumen output
  • DLC Premium: Assures high energy efficient & eligible for utility rebates
  • Controls Ready: Sensor receptacle for standalone and LEDVANCE LINK, no wiring
  • Integrated photocell that can be disabled in the field
  • UV stabilized polycarbonate lenses, vandal resistant
  • CCT Options vary per model: Selectable 3000/4000/5000K, Selectable Warm Spectrum 1800/2200/2700K or de-amber
  • DarkSky Approved versions: Sustainable luminaires designed to minimize light pollution and minimize environmental impact

Areas of Application

  • Walkways
  • Building facades
  • Perimeters
  • Commercial buildings
  • Schools

Specifications

Electrical Data

Nominal Wattage15.00/25.00/30.00 W
Nominal Voltage120.00…347.00 V
Power Factor≥0.90
Total Harmonic Distortion< 20 %

Photometrical Data

Lumens1725/2875/3450 lm
Efficacy115 lm/W
Color Temperature/CCT1800/2200/2700 K
Luminaire TypeWall pack

Dimensions & Weight

Length8.31 in
Height6.69 in
Width5.43 in
Product Weight3.86 lb

Materials & Colors

Luminaire FinishBronze
Housing ColorBronze
HousingAluminum
Mercury Content0.0 mg

Application & Mounting

Ambient Temperature Range-40…+50 °C
Maximum Operating Temperature122 °F
Minimum Operating Temperature-40 °F
DimmingYes
Type of Dimming0-10V
MountingSurface
Indoor/OutdoorOutdoor
Replaceable Light SourceNo
Primary Lamp TypeSMD

Lifespan

Average Rated Life (hr)100000

Certificates & Standards

Certification ListingRoHS; CSA; FCC; cULus

Explore the specs HERE

For more information on LEDVANCE lighting solutions HERE

August 17, 2026 - LEDVANCE Wall Pack Opti-Select 30W 120-347V D 8 3CCTWARM ADJ BZ P 6
