ABB Emergi-Lite: ESC-BLD Series – Steel Combination Unit /Pictogram Sign Lighting

Jan 15, 2026 - ABB Emergi-Lite ESC-BLD Series - Steel Combination Unit Pictogram Sign Lighting 1

January 15, 2026

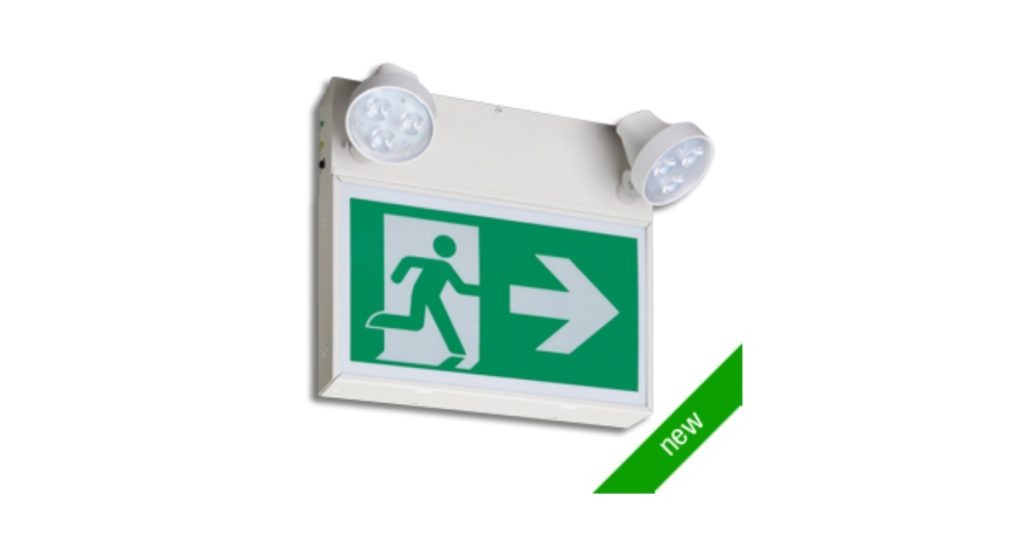

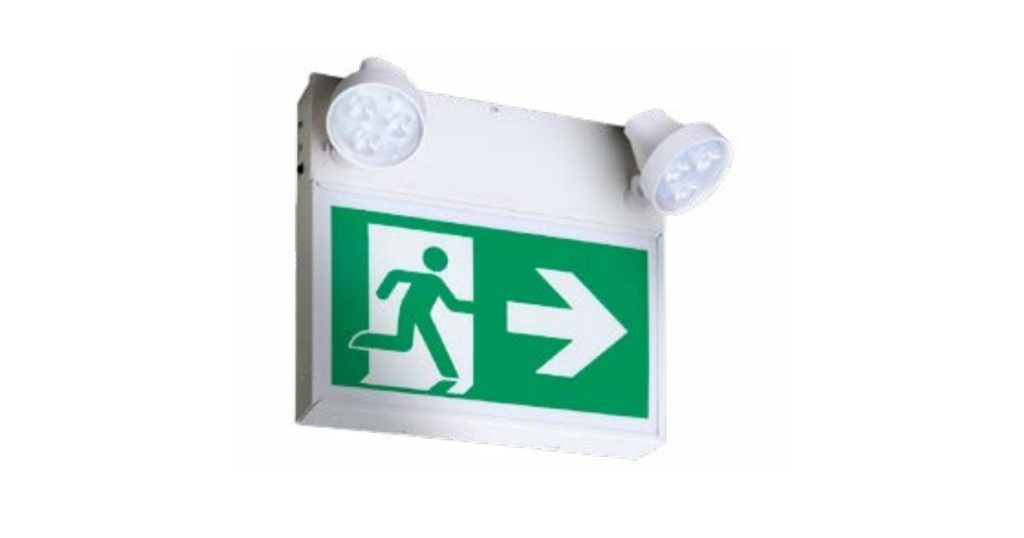

ESC-BLD Series: ABB Emergi-Lite Combination Emergency Light Battery Unit & Pictogram Sign Provides Canadian Made Emergency Lighting Solution

Enjoy easy supply and install for the Emergi-Lite ESC-BLD Series combination emergency light battery unit and pictogram sign. The unit shall be made of solid steel sheet metal and be suitable for universal mounting: wall, end, or ceiling. The legend housing shall have a maximum depth of 2-1/8″. The legend faceplate(s) shall be constructed of robust clear polycarbonate panel(s) with an opaque border coloured factory white. The light source shall be white light-emitting diodes (LED) and shall provide even illumination in normal and emergency operation.

The power pack shall include one circuit board with test switch and pilot light for battery charger and legend LED driver. The unit shall include one 6V, maintenance-free, sealed lead-calcium battery and shall provide minimum 30 minutes of emergency lighting upon AC power failure. The electrical power available for emergency lights shall be 24W. The equipment shall meet or exceed the requirements of CSA 22.2 No.141-15 standard.

Features

  • “Built-in” 3W LED heads
  • Universal mounting: end, wall or ceiling
  • Meets or exceeds CSA 22.2 No.141-15 standard for unit equipment and pictogram signs
  • Sealed, maintenance-free, 6V lead-calcium battery
  • Made in Canada
  • Jan 15, 2026 - ABB Emergi-Lite ESC-BLD Series - Steel Combination Unit Pictogram Sign Lighting 1
  • Jan 15, 2026 - ABB Emergi-Lite ESC-BLD Series - Steel Combination Unit Pictogram Sign Lighting 1

Sectors of Use

For more information on ABB Emergi-Lite’s solutions HERE

Jan 15, 2026 - ABB Emergi-Lite ESC-BLD Series - Steel Combination Unit Pictogram Sign Lighting 1

Source

ESC-BLD Series ESC-BLD Series
