JDRF Electromag: The Autonomy Touch Screen – Lighting Control Solution

July 24, 2026 - JDRF Electromag The Autonomy Touch Screen - Lighting Control Solution 1

July 24, 2026

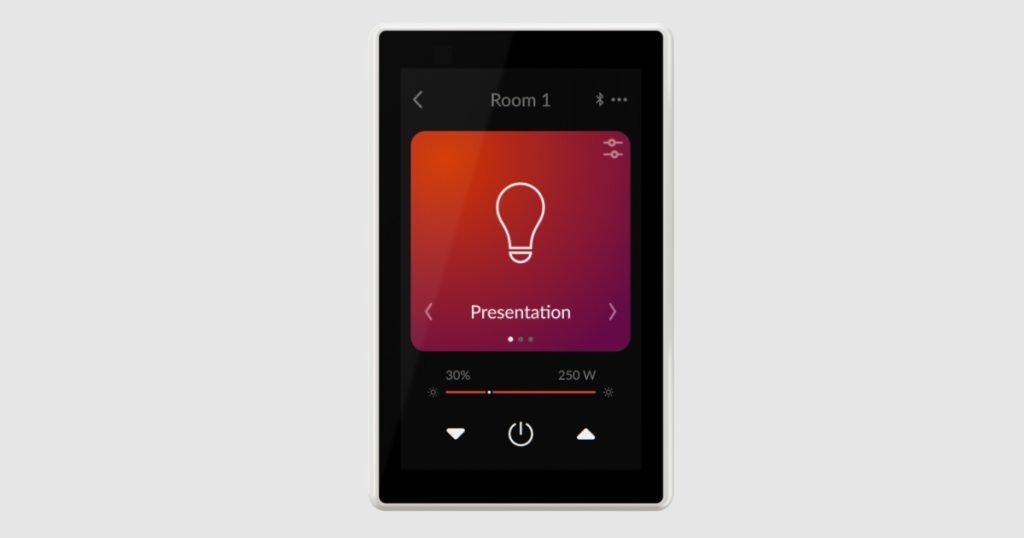

The Autonomy Touch Screen Provides a Visual Interface to Control the Light Level, Tune the Color Temperature & Select Scenes

The Autonomy Touch Screen automatically pairs with co-located sensors and updates the GUI based on the lighting arrangement grouping configuration. Users can pair their smartphone to the Touch Screen through NFC with a simple tap to gain access to the lighting system from the mobile application. The Touch Screen provides a visual interface to control the light level, tune the color temperature and select scenes.

Features

  • Installation Standard electrical wall box and is powered by AC line voltage.
  • Configuration Automatically pairs with co-located Autonomy Sensor(s).
  • Network Automatically builds secure wireless mesh network.
  • Number of Groups Dynamically configured based on discovered lighting plan.
  • Motion Detection Integrated in front face.
  • Graphical User Interface (GUI) Configurable via mobile application Lighting Control Choose light level or scene present for all or selected groups.

Specification

Electrical

  • Input Voltage: 120-277 VAC (50/60 Hz)
  • Input Power: 5 W maximum
  • Impulse Voltage: 4 kV

General

  • Purpose of control: Electronic Lighting Control (non-safety related)
  • Type 1 Action
  • Pollution Degree: 2

Wireless

  • Communication Protocol: Wireless Mesh
  • Frequency: 2.4 GHz
  • Transmitter output +8 dBm (adjustable)
  • Communication Range: 10 m (33 ft) line-of-sight to nearest device

Self-Diagnostic

  • Pass & Fail indicators displayed on GUI
  • Detailed logs available via mobile application

Standard

  • cETus listed UL60730
  • FCC Class A Part 15 Subpart C
  • Ingress Protection Rating of IP53
  • Impact Rating of IK07

WARRANTY

  • 5-year manufacturer limited liability

For more information on JDRF Electromag solutions HERE
