Cooper Lighting Solutions: Metalux – SkyBar Series
May 5, 2025
SkyBar Series: HID Lighting in Both Commercial & Industrial Environments

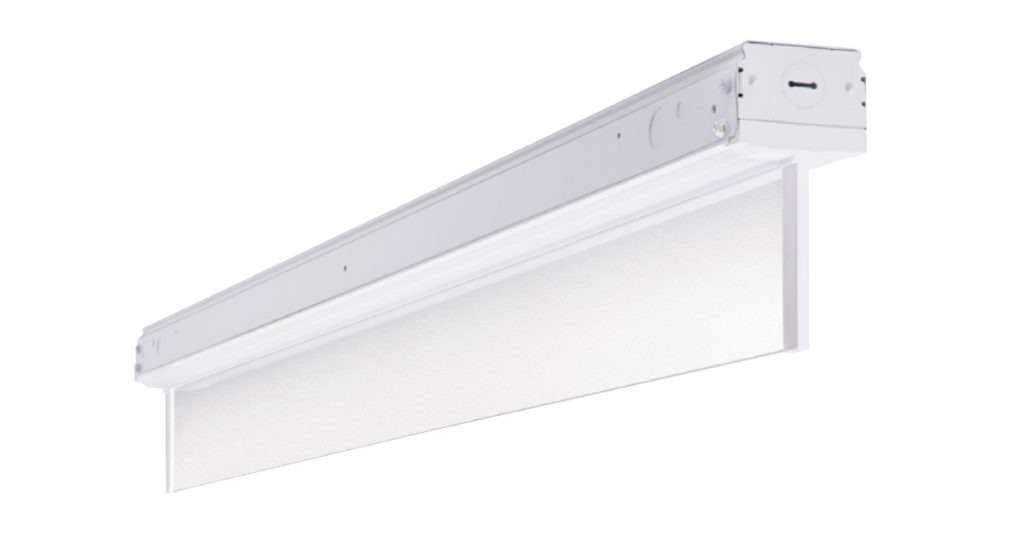

The SkyBar Series reimagines high bay and low bay lighting with distinctive aesthetics, standard uplight and exceptional optical performance. Multiple lumen packages and distributions provide design freedom for a wide variety of lighting applications. With patented WaveStream technology, SkyBar Series high bay luminaires deliver a stylish LED alternative to traditional fluorescent and HID lighting in both commercial and industrial environments.
Features
- Lumen packages up to 36K lumens
- High-Performance efficacy up to 148 LPW
- LEDs available in 3500K, 4000K and 5000K at 80 CRI
- Rated for -20c to 40c ambient
- Lumen Maintenance – L91 @ 60,000 hours
- Precision optics in narrow and wide distribution
- Occupancy and daylight sensor for added savings
SkyBar Series Specifications
Construction
- Channel is die formed cold rolled steel with KOs for ease of installation
- Groove for Tong Hanger
- End plate quickly converts to snap-in channel connector for continuous row alignment
- Impact protection rating IK07 Lens and IK10 Housing
Electrical
- Long-Life LED system coupled with electrical driver to deliver optimal performance
- LED’s available in 3500K, 4000K or 5000K with a CRI <85
- Electronic drivers are available for 120-277V, 347V and 480V applications
Emergency Battery Pack Option
- Optional 120-277V emergency battery available in 7W or 14W
- 90-minute backup period for code compliance
- Test switch with laser pointer and testing from floor feature for ease of use
- EZ Key feature prevents accidental discharge during construction
- Generator transfer options available
Compliances
- Luminaires are cULus listed for damp Locations 1. 7°C-40°C (35°F-105°F) ambient environments. (EL option up to 35°C ambient)
- ROHS Compliant, and LED modules comply with IESNA LM79/LM80 standards
Control
- Equipped standard with a 0-10V continuous dimming driver that works with any standard 0-10V control/dimmer
- Dimming range is 10% to 100%; varies by control device
- Combine with energy saving products like occupancy sensors, daylighting controls, and lighting relay panels from Cooper Controls to maximize energy saving
Optics
- Precision formed optical assembly with positively retained high optical grade acrylic lenses provide a directed optical distribution using WaveStream technology.

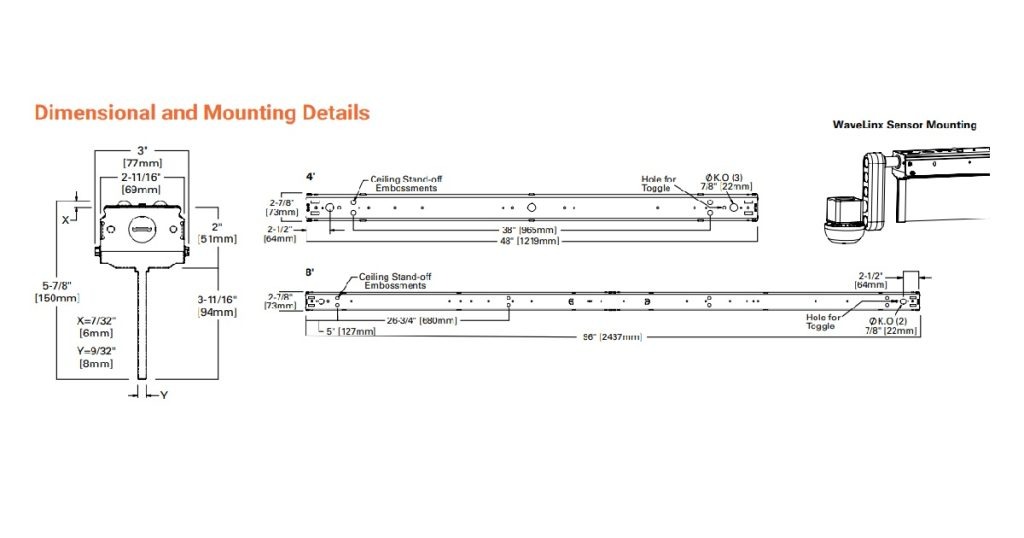

Mounting
- Suspended using two V-hangers (included)
- Optional Y-hook, Y-Toggle or Surface/stem mount bracket available
- Continuous row mount available
- Mounting hardware must be ordered separately
Warranty
- Five-year limited warranty
