Intermatic: RC-LRS1-WH Long-Range Wireless Switch

April 30, 2025 - Intermatic_ Long-Range Wireless Switch - RC-LRS1-WH

April 30, 2025

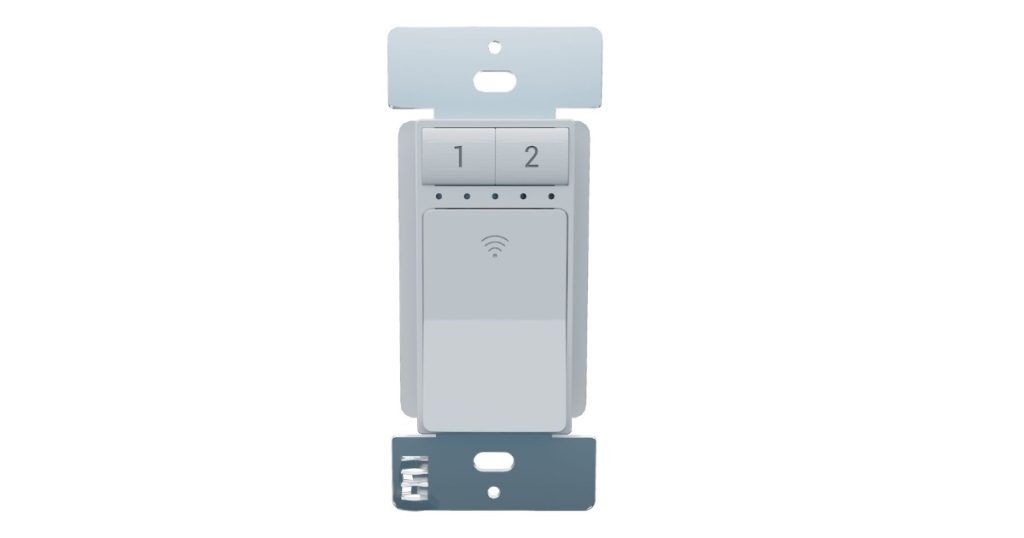

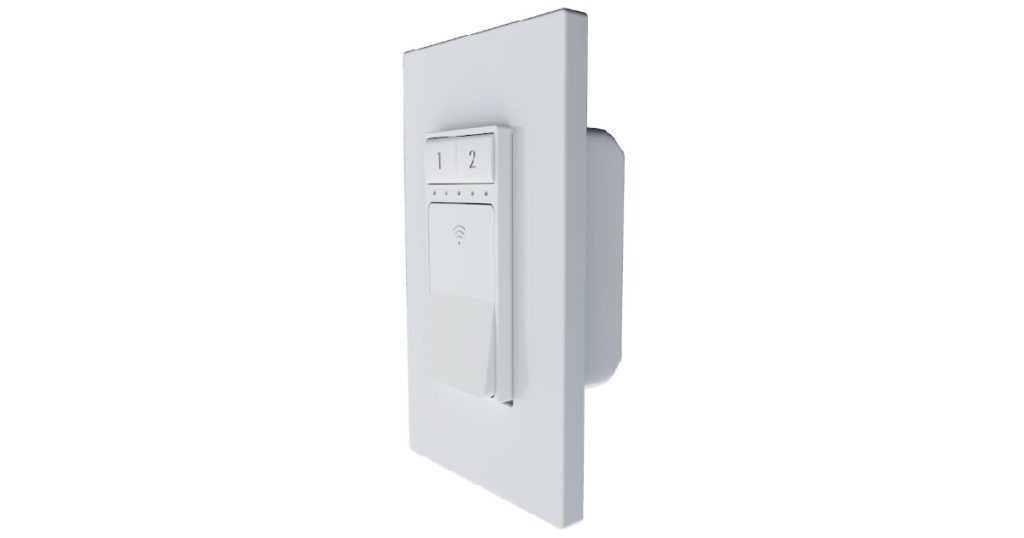

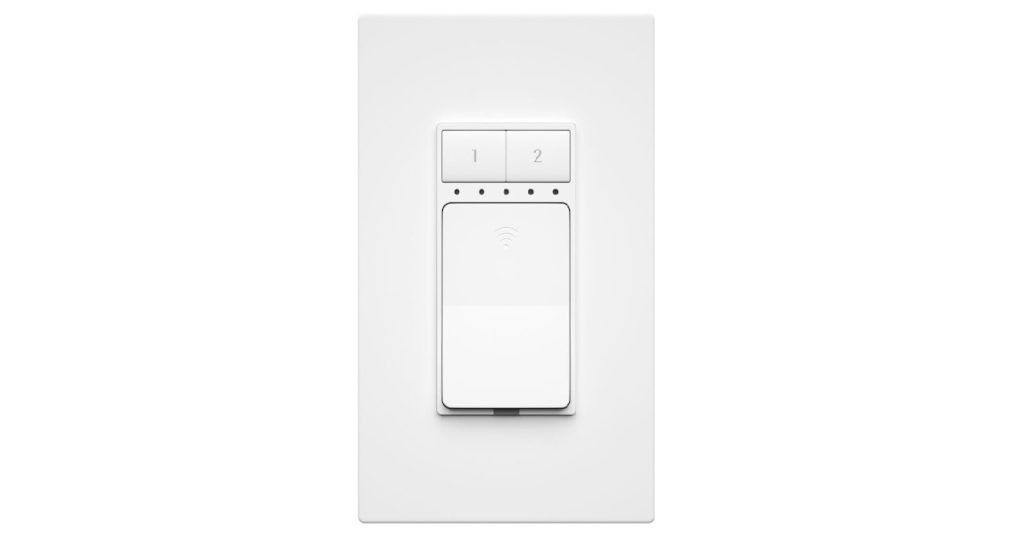

RC-LRS1-WH Long-Range Wireless Switch Provides Excellent Communication & Weather Resistance

The RC-LRS1-WH Long-Range Wireless Switch is designed for use with Intermatic pool and spa panels, Intermatic weatherproof covers, and similar weather-rated NEMA 3R enclosures. Featuring 915 MHz spread spectrum wireless technology, the switch communicates with the companion remote control fob (sold separately) at distances up to 400 feet through metal panels, with no external antenna required. The internal components of the RC-LRS1-WH Long-Range Wireless Switch have been treated with a special coating to resist oxidation in outdoor environments and supports an operating temperature range of -30° C to 70° C (-22° F to 158° F).

Features

  • Controls pool lights and other outdoor lighting up to 400 feet away.
  • Ruggedized for long life and enhanced reliability in NEMA 3R outdoor enclosures.
  • 915 MHz wireless technology provides extended range and remarkable performance, even through metal panels.
  • Operating temperature range of -30° C to 70° C (-22° F to 158° F).
  • Works with battery-powered remote control fob, available separately (RC-LRSR-WH) or as part of a complete kit (RC-LRSK1-WH).
  • Box Contents: (1) long-range wireless switch, (1) faceplate (2) faceplate mounting screws, (2) electrical box screws, (4) wire connectors (1) quick installation guide.

Applications

  • Landscape Lighting
  • Pool Lighting Control
