BeLuce: Nova UAC-P 2500W Emergency Lighting Power Supply – Pure Sine Wave

July 16, 2025
Nova UAC-P 2500W: Emergency Lighting Provides Greater Safety, Savings & Flexibility

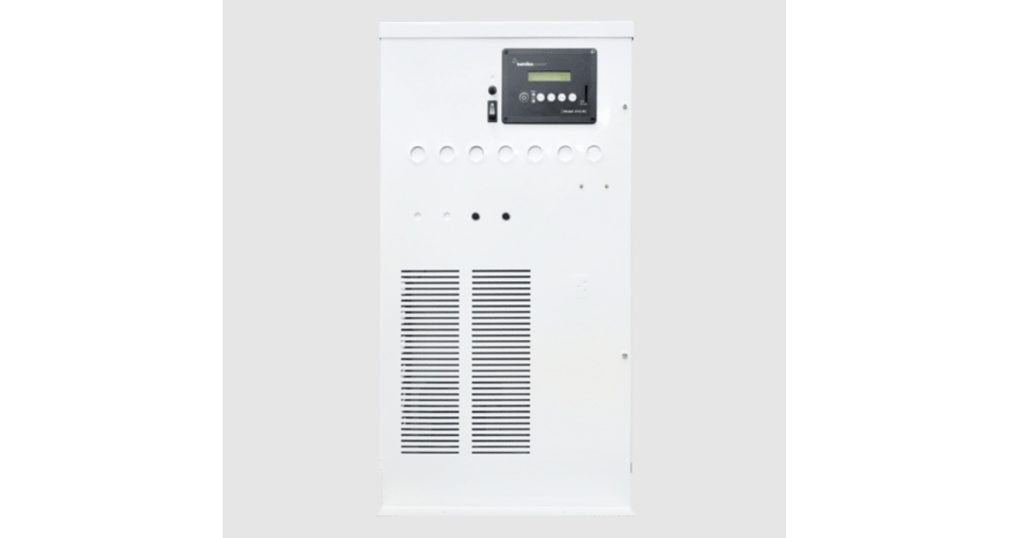

The Nova UAC-P 2500W is a larger emergency lighting power supply which allows standard lighting to also be used as Emergency Lighting. The Nova UAC-P 2500 will transfer up to 2500W of true sine wave power in the event of a power failure to support egress lighting for 30 minutes.
As with the standard Nova UAC, the Nova UAC-P 2500W is suited for LED, compact fluorescent, fluorescent, or incandescent light fixtures. The Nova UAC-P is an IPS system with a transfer time of only 10 milliseconds.
In the event of a power failure, the Nova UAC automatically outputs 120VAC emergency power. There is a user-selectable normally on or off operation.
Features
- 120V/120V – Separate converter cabinet required for 277V or 347V options
- Toggle switch for selectable normally on to normally off operation
- Display panel
- Operating Temperature: +10°C to +40°C
- 2500W capacity
- CSA 22.2 No. 141-15 Performance Certified
Benefits
NOVA UAC-P: Converts normally-on lighting into emergency lighting provides greater safety, savings and flexibility. There is the potential for greater illumination on the path of egress with general lighting. By making use of the general lighting, you will save the cost of additional emergency lighting battery units and remote heads. Provide a more architecturally pleasing design by eliminating the need for remote heads in the space. With AC power input and output, the installation will be more flexible and there will be no concern of voltage drop to the loads.
The NOVA UAC PURE SINE WAVE: Suitable for fluorescent, incandescent, LED and most compact fluorescent lighting. The surge peak lighting load is 6000W for 0.5 seconds. It is important to take the peak load into consideration when choosing your load type. Surge protection device has been built-in to the primary AC input circuit of the inverter unit.
PURE SINE WAVE: True sine wave power is required to ensure there is no interruption in delivering emergency power. The pure sine wave system is compatible with all power supplies, LED drivers and lighting ballasts. The NOVA UAC-P is a standby IPS system with a transfer time of 10 milliseconds, which is suitable for specified lighting loads under emergency backup.
