ABB Emergi-Lite: EHV Series – Aluminum High-Visibility Edge-Lit Pictogram Sign

June 18, 2025
Introducing the EHV Series: Clarity When It Counts
ABB Emergi-Lite’s new EHV Series high-visibility edge-lit pictogram sign is crafted for high-ceiling spaces such as distribution centres, shopping malls, sports facilities, and transportation hubs. This sleek series offers enhanced visibility during emergencies while also blending seamlessly into everyday built environments.
The EHV Series isn’t just a pictogram sign—it’s a carefully engineered safety solution for egress paths, designed to outperform standard LED 6″ high pictogram signs. Compared to backlit window-type exit signage, the EHV Series’ edge-lit design offers a more sophisticated look with one thick solid panel that will not kink, fog or frost up, blending functionality with aesthetics.
Visibility Meets Versatility
- Customizable Panels: Meet regulatory or site-specific needs with special wording options.
- Stands Out, Subtly: The sleek and refined edge-lit design delivers on visibility without disrupting decor.
- Proudly Made in Canada: Engineered with care, quality, and precision right here in Canada.
- Convenient Self-Testing: Eliminate manual testing in hard-to-reach installations with optional auto-diagnostics and remote testing.
Features
- Slim-profile extruded aluminum housing

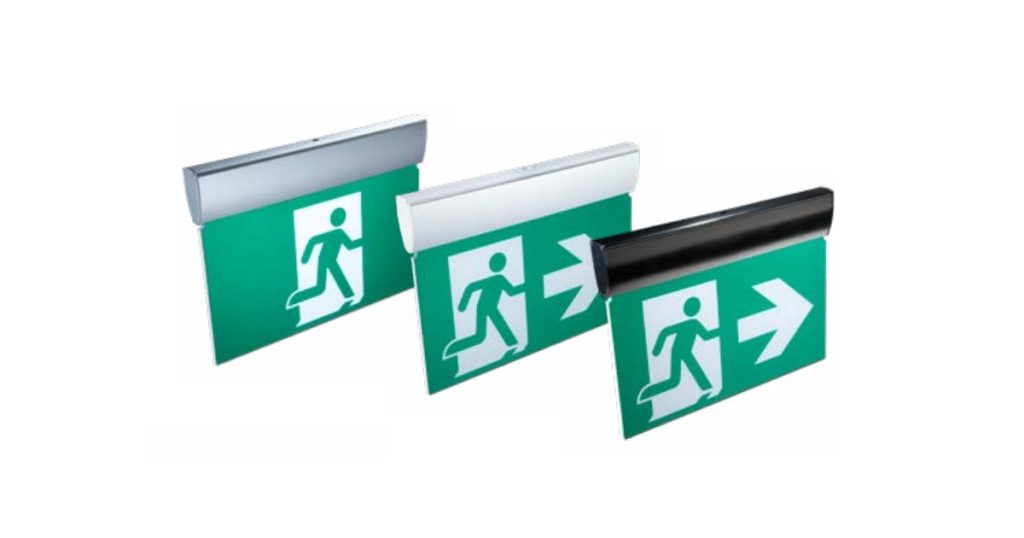

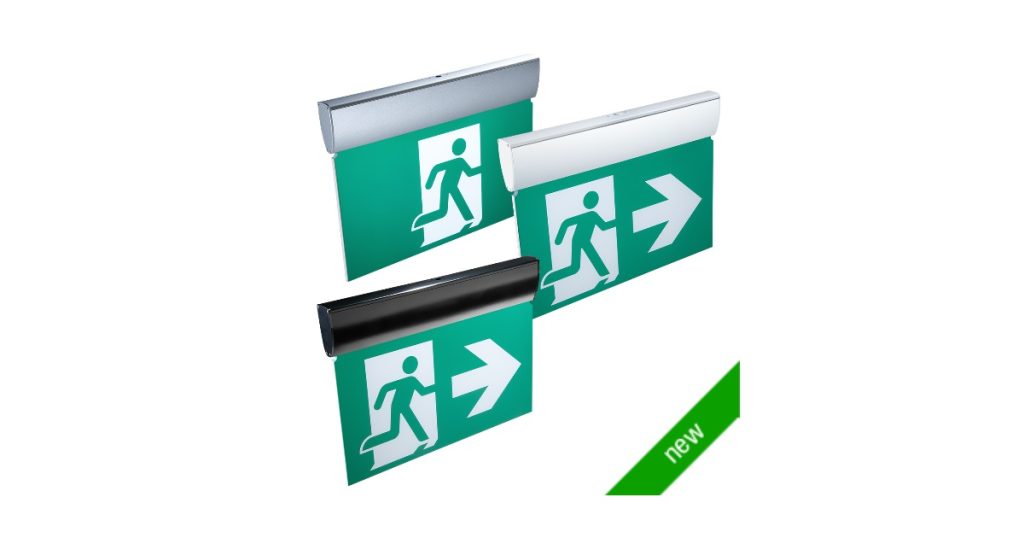

- Housing available in textured aluminum, white or black
- Low-profile, die-cast aluminum canopy
- Universal surface mounting – wall or ceiling
- Pendant mount compatible (pendant kit sold separately)
- Designed for spaces with high ceilings

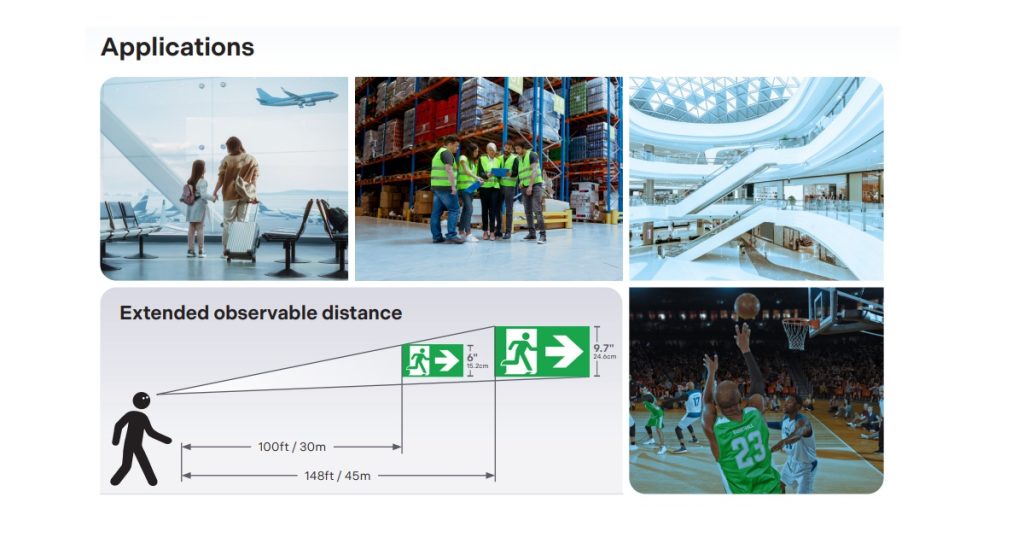

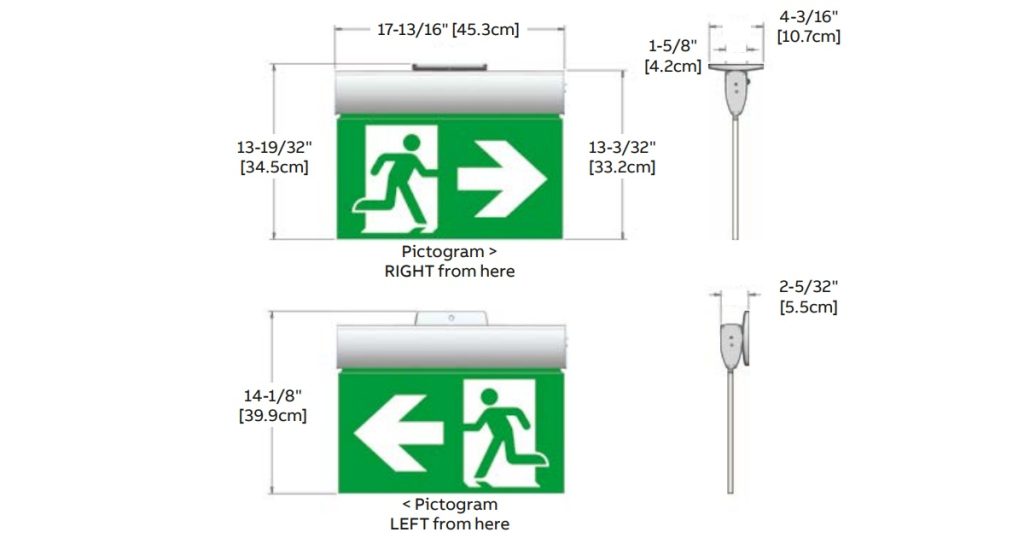

- Extended observable distance: 9.7″ x 17.5″ (24.6 x 44.5cm) panel can be viewed from up to 148′ (45m) and improves visibility in abnormal conditions
- Click-to-open housing door allows easy access to the panel and electrical wiring
- Acrylic panel with pictogram legend
- Available as single or double face
- Long-life white LED light source
- Meets or exceeds CSA 22.2 No. 141
- Universal AC Input: Two-wire 120 to 347VAC; Standard DC Input: Two-wire 6 to 24VDC
- Energy efficient – consumes less than 3W in AC or DC-remote mode
- AC/DC model rated for temperatures from -30°C to 40°C
- Self-powered model rated for temperatures from 10°C to 40°C
- Self-powered model comes standard with advanced diagnostics and 2-hour discharge time
- Lithium iron phosphate battery with built-in protection circuit module
- Damp location rated
- Special wording available (CSA C22.2 No. 250.0)
- Warranty details at: ABB Emergi-Lite Canada
Specifications
Supply and install the Emergi-Lite EHV Series aluminum high-visibility edge-lit pictogram sign. The unit shall operate with universal 2-wire AC input voltage of 120 to 347VAC at less than 3W and universal 2-wire DC input voltage from 6 to 24VDC at less than 2.5W. The housing assembly shall be constructed of extruded aluminum with textured finish and colour. The canopy shall be of die-cast aluminum and allow for wall or ceiling mount. The legend shall be printed on a pure acrylic panel. The panel shall come standard with double-face legend, or single-face applications.
The light source shall be long-life white light-emitting diodes (LED) and shall provide even illumination in normal and emergency operation. The pictogram edge-lit sign in a self-powered configuration shall use a lithium iron phosphate (LiFePO4) battery of 3.2V nominal voltage and shall stay illuminated during emergency operation for at least two hours upon AC failure.
