Introducing Stanpro YDD-L GEN 2 LED Yard Light

Stanpro yardlight 400

Mar 19, 2019

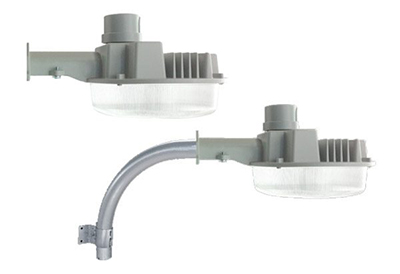

The YDD-L is an energy efficient dusk to dawn yard light. It was designed for barns and farms. It is a versatile and economic light source that is good on the environment and uses long life LED’s. The YDD-L comes standard with a photocontrol which helps to provide significant power savings. It includes an installation bracket for pole and wall mounting and a 21″ arm for ease and versatility of installation. All units come standard with 3 feet of cable to facilitate the connection to the junction box when mounting with the pole arm.

Features and Specifications

Construction

  • Housing Heavy-duty cast aluminum housing finished standard in a grey polyester powder coating with anti-corrosive finish and rust proof. Standard pole mount compatible.
  • Dusk to Dawn with photo control.
  • Mounting options The YDD-L comes standard with a removable 21″ arm for pole or wall mounting. Lens Polycarbonate diffused lens encloses high performance LEDs.

Electrical

  • Comes standard with 120-277V 50/60Hz non-dimmable and rated IP65 driver
  • 3 feet of power cable is included to facilitate the connection to the junction box when mounting with the 21″ pole arm
  • Twist-lock grey photocell 120-277V included
  • Ambient operating temperature range of -40°C to +40°C

Compliances

  • Wet location
  • IK07
  • Meets requirements of ICES-005 issue for class B product
  • cETLus

Go HERE for more information
