Terra Linear: Its Dynamic & Clean Aesthetic Will Blend in Perfectly with Any Project Space

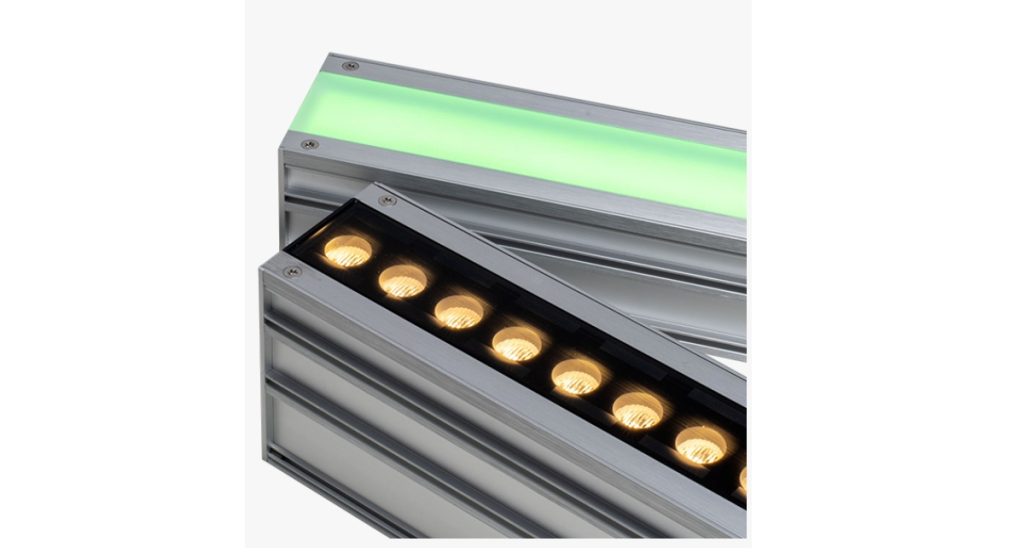

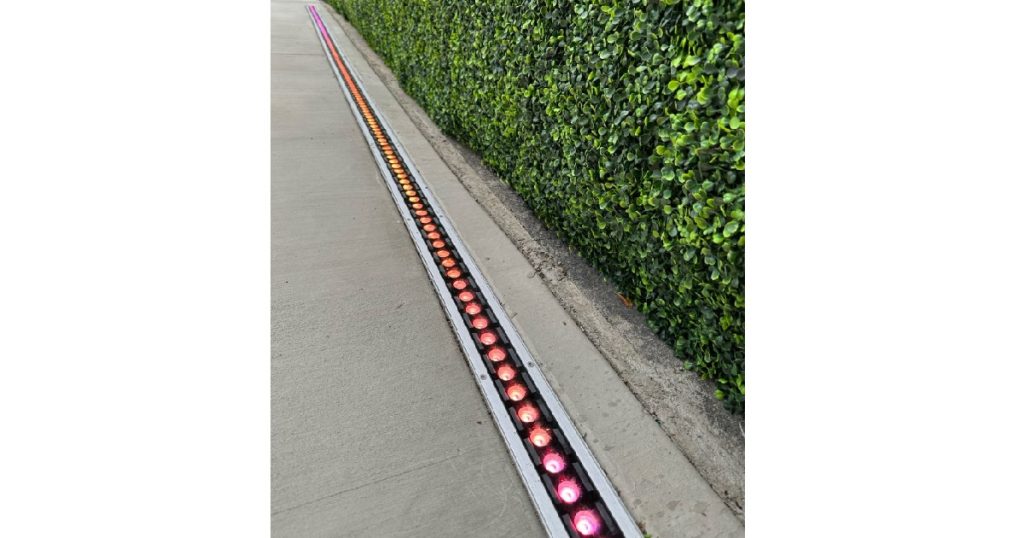

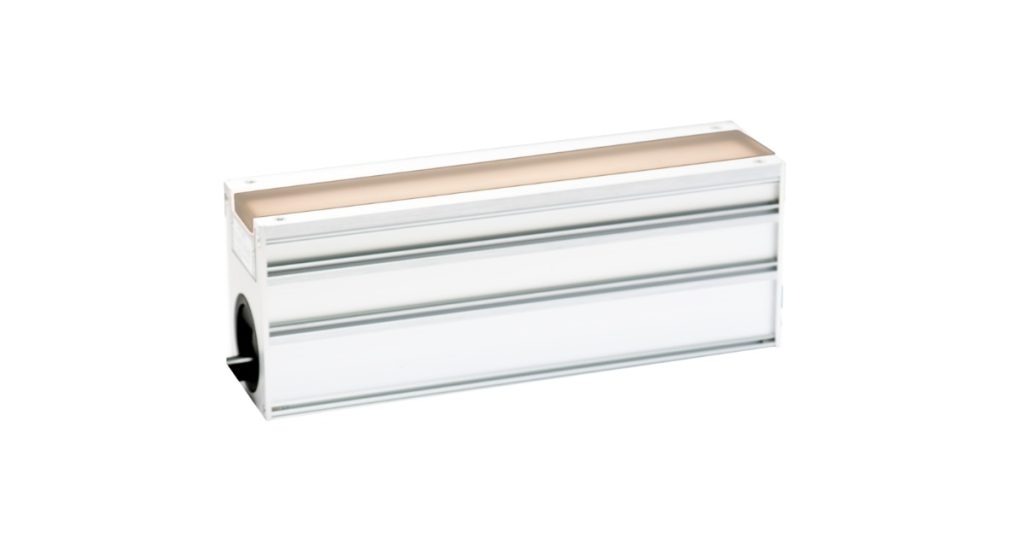

Terra Linear is Acclaim Lighting’s brand-new in-ground linear series powered by Acclaim’s XTR technology. XTR tech allows for linear runs of up to 1400’ from a single driver and can automatically adapt to any voltage from 100-277 volts AC. It features a low-profile design that is just under 3” wide, is drive-over and walk-over rated, and features an anti-slip coating as standard. The direct-view version gives you an incredibly clean, dot-free LED marker light for pathways and driveways. Terra Linear was designed from the ground up to be easy to specify, easy to install, and incredibly durable. Its clean aesthetic will blend in perfectly with any project space.
Features
- Output Options: Select from 20W, 12W, 5W, or 2.5W per foot
- Line ’em Up: XTR Link Technology provides extended run lengths up to 400′ stand alone or up to 1,400′ from a single XTR Driver

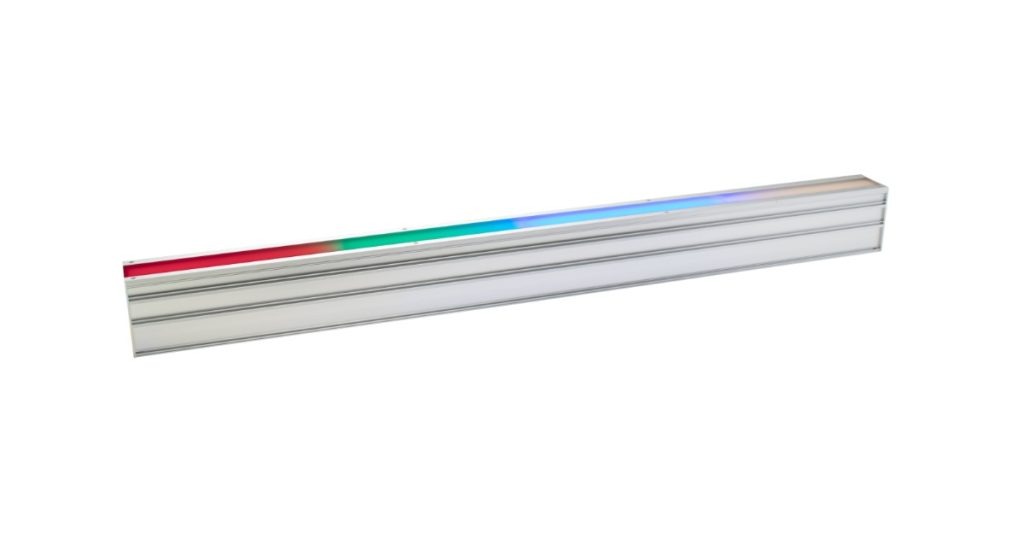

- Color & Optics: 8 color options and1 optics, including a dot-free direct-view version, gives Terra Linear the flexibility your design needs

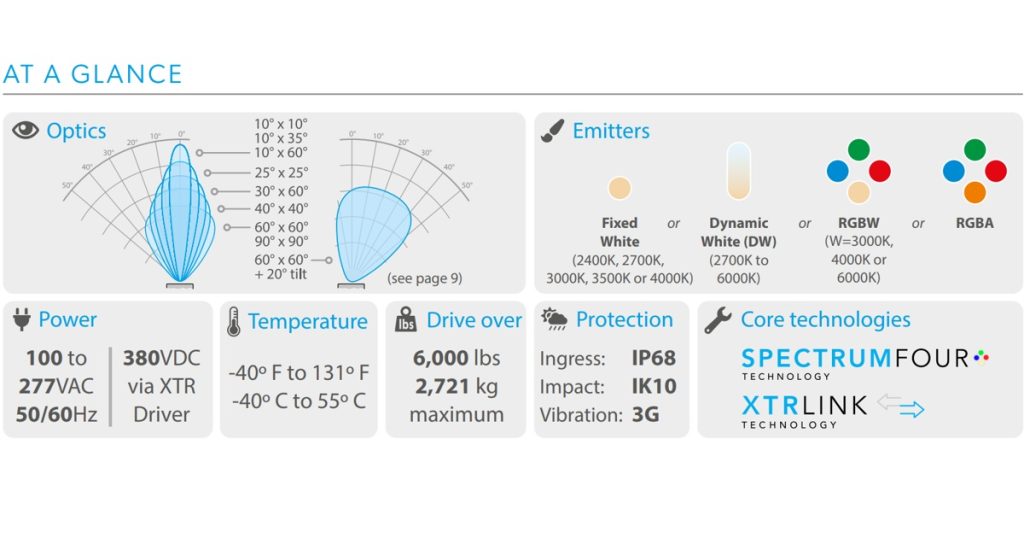

Specifications
- CRI: 81 CRI
- Efficacy: 65 lm/w
- Lamp Life: 100000 hrs
- Lumens: 1322 Lm
- Lumens/Linear Ft: 1322 Lm/ft
- Watts: 80 w
- Watts/Linear Foot: 2 w/lf, 5 w/lf, 5 w/lf, 10 w/lf, 10 w/lf, 20 w/lf
- Weight: 4 lbs, 16 lbs
Product Overview

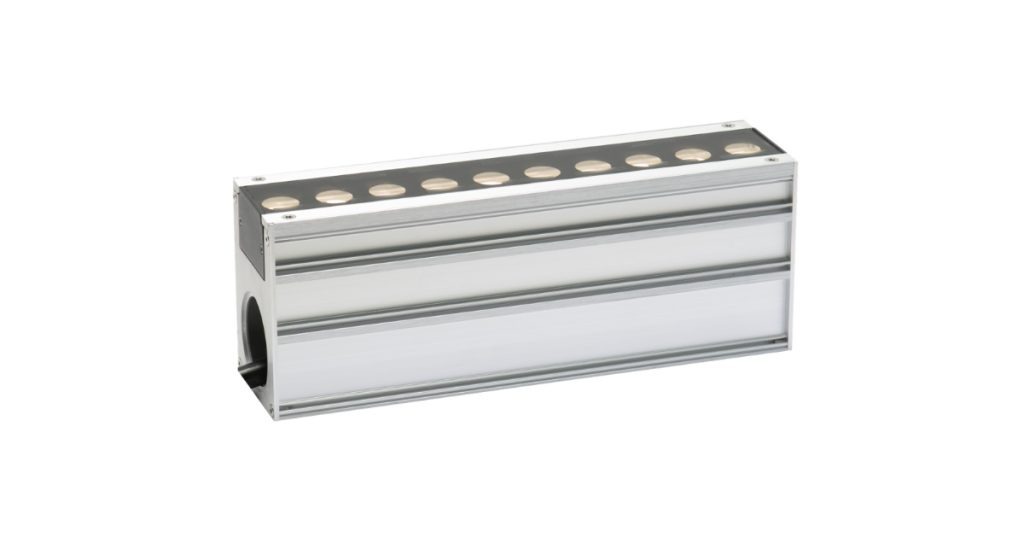

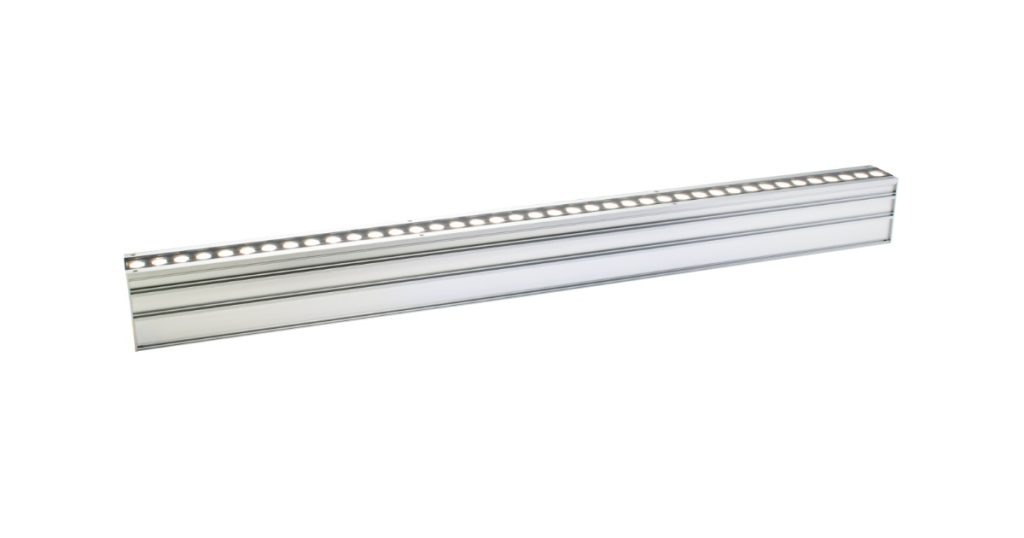

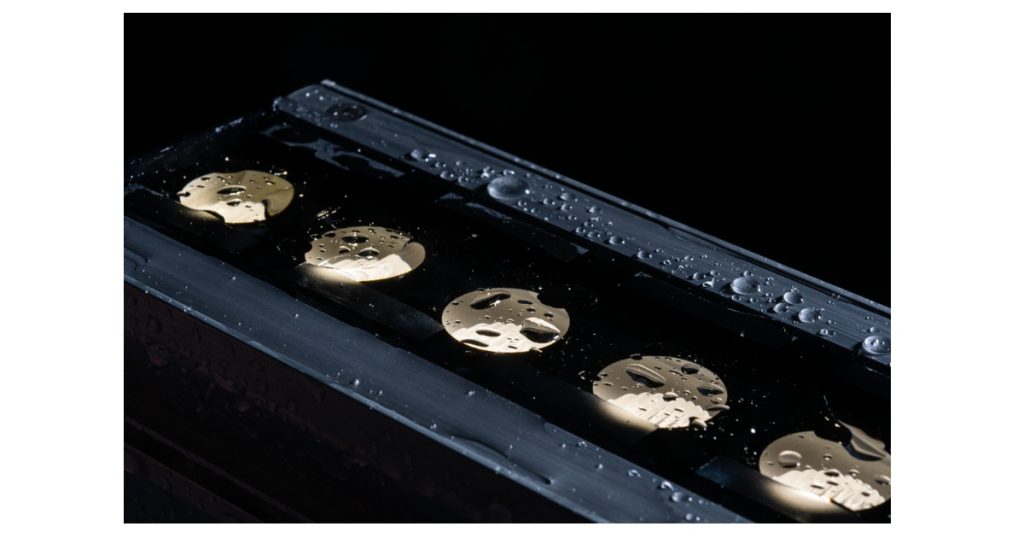

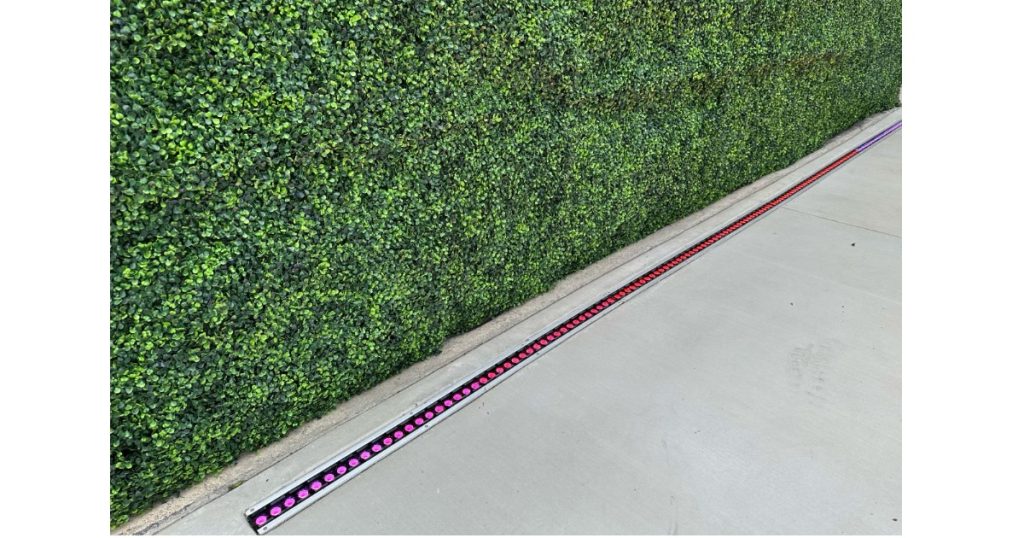

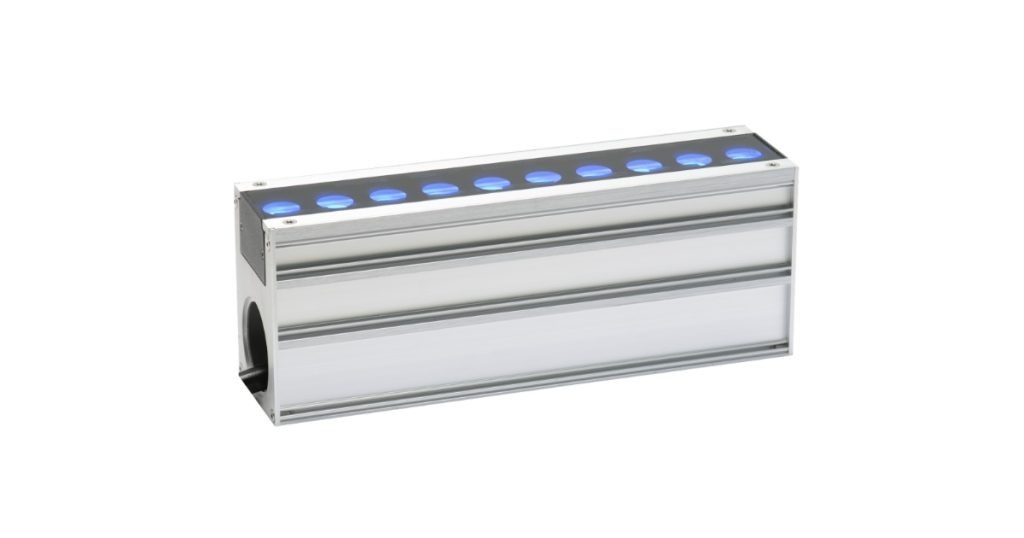

Terra Linear are rugged, drive-over ready fixtures designed for all-weather in-ground applications. Available in 1 foot and 4-foot lengths, these aluminum-bodied IP68 fixtures are particularly suited to recessed façade lighting applications. Using unified power and DMX control links, Terra Linear fixtures can be rapidly daisy-chained in long runs. All standard mains voltages are directly supported or, to achieve impressive single runs up to 700 linear feet (213m), Terra Linear can be driven by Acclaim Lighting’s XTR Driver. Anti-slip top coatings, anti-theft security screws and an IK10 drive-over rating of up to 6,000 lbs (2,721kg) make Terra Linear a natural choice for use in all public areas.
