Intermatic: ALC1-R – 1-Channel 0-10 V Lighting Controller
June 17, 2025
The ALC1-R Lighting Controller: Wired or Wireless Communication with Bluetooth Mesh Technologies

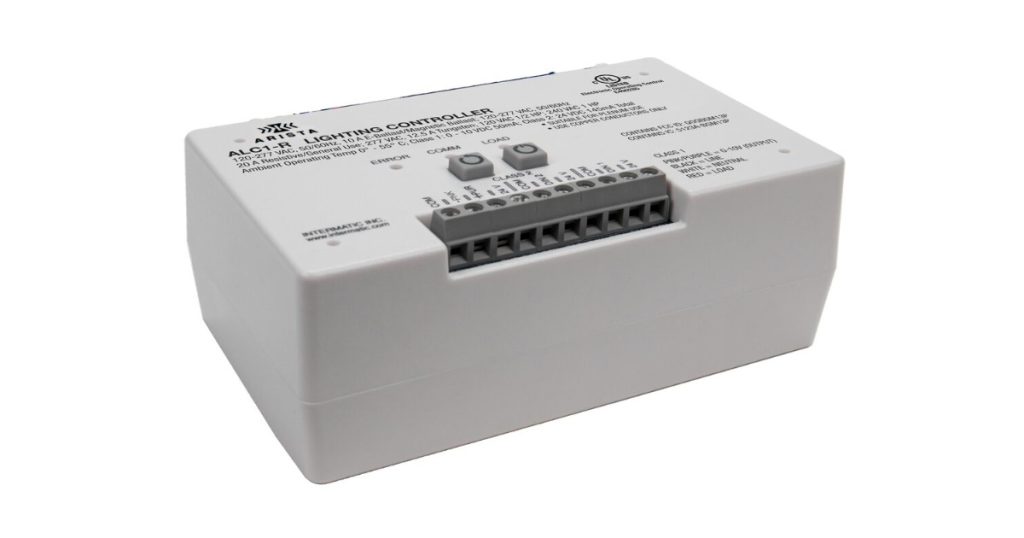

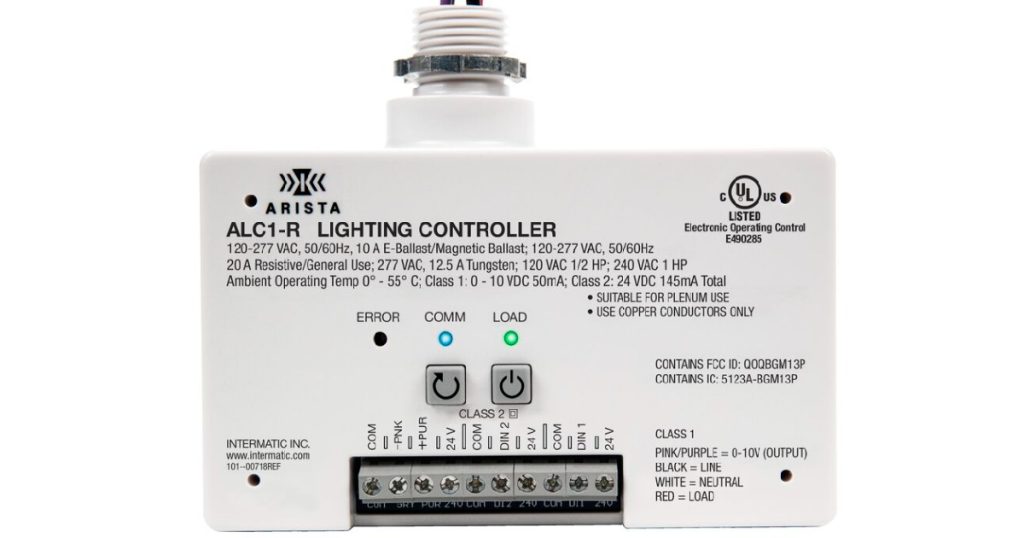

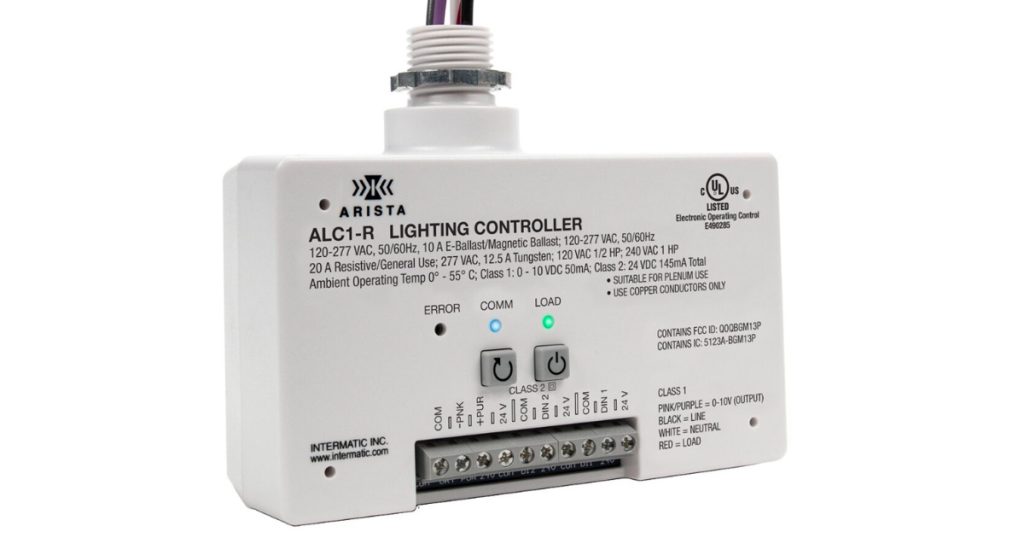

The ALC1-R Lighting Controller is a single-channel 0-10 V dimming controller designed to work with ARISTA Lighting Control System by Intermatic. These units can work with either 0-10 V or 1-10 V lighting fixtures, including LEDs. Once installed, the ALC1-R unit(s) can be configured to work off of either scheduling, sensing, or a combination of both, providing maximum energy efficiency as well as occupant comfort. These units can be configured for either wireless or wired communications and utilize Bluetooth Mesh technologies for wireless communications. Pricing is available upon request.
Features
- Wired or wireless communications.
- Provides 24 VDC for wired devices.
- Utilizes a secure Bluetooth mesh for connectivity.
- Built-in real time clock for keeping timing accuracy.
- Allows for 1 wired analog input.
- Allows for 2 wired digital inputs.
- Works with 0-10 V or 1-10 V luminaires.
- 365-Day scheduling including holidays.
- Programmable blink warning alert.
- Programmable light levels.
- Supporting mobile app available on Apple app store and on Google play store
Applications
- Dimming
- Indoor Lighting Control
- Timing/Scheduling ON/OFF
Specifications
| Input Voltage Range(s) | 120-277 VAC, 50/60 Hz | Mount Type | Box, Fixture |
| Application Compatibilities | LED | Backup Protection Time | 100 Hours |
| Backup Type | Supercapacitor | CA Prop 65 Message | Please see the Warning @ www.P65Warnings.ca.gov |
| California Proposition 65 | DEHP, Lead | Colour | White |
| Country of Origin (Intermatic) | CHINA | Data Transfer Options | Bluetooth |
| Daylight Savings Adjustment | Automatic | Electronic Ballast (LED) per Channel | 10 A |
| Electronic Ballast LED | 10 A | Electronic Ballast Load Ratings Ranges | 10 A, 120-277 VAC |
| External Inputs | Analog, Digital | Function Type | Dimming, Remote Controllable, Scheduled Dimming, Scheduled ON/OFF |
| Low Voltage | Analog, Digital | Magnetic Ballast Range(s) | 10 A, 120-277 VAC |
| Material | Plastic | Neutral Connection Required | Yes |
| Operation Features | Astronomic, Countdown, Daylight Saving Time, Holiday | Operation Mode | 365-day, Countdown |
| Other Certifications and Compatibilities | Ashrae 90.1 2016, Green Energy +, IECC 2018 | Plenum Rated | Yes |
| Programming Targets | Smartphone | Radio Signal | Bluetooth |
| Resistive Load Ratings Ranges | 20 A, 120-277 VAC | RoHS Certification | Yes |
| Status Indicator | LED | Switch Type | SPST |
| Tampering Protection | Yes | Tungsten Range(s) | 12.5 A, 277 VAC |
| UL Certification | cULus | Usage Environments | Indoor |
| Voltage Selection Type | Auto Voltage 120-277 | Warranty Period | 5-Year limited |
| Wiring Options Line Voltage | Pigtails | Wiring Options Low Voltage | Pigtails, Terminals |
| Operating Temperature Max (°C) | 55 | Operating Temperature Max (°F) | 131 |
| Operating Temperature Min (°C) | 0 | Operating Temperature Min (°F) | 32 |
| Product Depth (in) | 1.95 | Product Depth (mm) | 49.53 |
| Product Height (in) | 5.03 | Product Height (mm) | 127.762 |
| Product Width (in) | 4.19 | Product Width (mm) | 106.426 |
| Unit Carton Height (in) | 2 | Unit Carton Length (in) | 6 |
| Unit Carton Weight (lb) | 0.5 | Unit Carton Width (in) | 5 |
| Units Per Pallet | 999 |
