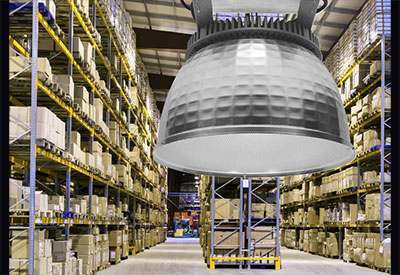

AccuLite ALX-Series LED Highbay Luminaires

AccuLite ALX Series

The completely redesigned AccuLite ALX Series LED highbay luminaires feature the latest-technology light engines, delivering industry-leading efficacies of up to 130 lm/W. The 200-watt, 25,000-lumen version replaces up to 400-watt, pulse-start HID fixtures, providing energy savings up to 55%. Energy savings versus comparable fluorescent fixtures approach 40%.

The ALX Series is also offered in a 162-watt, 20,000-lumen version that provides similarly impressive energy savings. With a service life of over 55,000 reported L70 hours, the ALX Series promises many years of maintenance-free operation. Both versions of these remarkable LED luminaires offer exceptional performance at a surprisingly affordable price.

ALX-Series LED highbay luminaires are available with a selection of aluminum and acrylic reflectors, providing uniform illumination in a wide range of applications. Mounting options include built-in hook with 6-foot cord and 3/4-inch NPT hub for pipe-pendant installation. For lower mounting heights, a choice of three diffusing-lens styles helps minimize glare. The LEDs are shielded by a glass lens, which creates an IP65 dust and water tight enclosure. Standard colour temperatures are 5000K or 4000K, but other CCTs are available upon consultation with the factory. State-of-the-art LED drivers feature universal 120-277VAC input and 0-10V dimming standard; 347V and 480V optional. Other options include programmable occupancy sensors, wireless control compatibility, and emergency battery backup.

Find out more:
