Legrand Universal Dimming Module: Bring Precise Control to Complex Lighting Automation Projects

Legrand Universal Dimming Module



June 05 2016

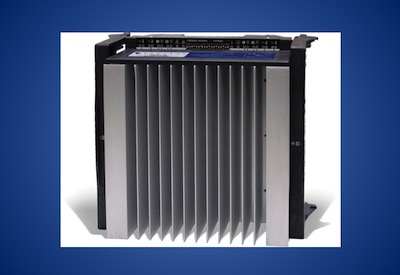

Legrand, North America has expanded its lighting control and automation panel (LCAP) architectural dimming product family with the new InFusion Universal Dimming Module (UDM), which provides dimming control of multiple lighting sources.

THIS Wattstopper 120V to 277V module can be mounted in a main or secondary LCAP enclosure and controls up to eight universal loads with up to four line feeds for a total of 32 AMPs per module.

The UDM simplifies the integration with different load types in lighting projects and enables the dimming of any forward or reverse phase LED lighting sources with module locking mechanisms and load by load selectable load type (forward or reverse phase) and auto load-type detection.

The UDM is ideal for commercial projects with a prevalence of phase control dimming for LED lighting. It offers load by load selectable load type (forward or reverse phase) and auto load-type detection through Design Center software.

Additional key benefits and features:

• Plug & play design: features module locking mechanisms for easy in-field installation, service, and replacement. Design eliminates the need for field wiring to UDM

• Custom load linearization profiles: allows each dimming channel to match the dimming curve of the lighting load to provide smooth dimming and consistent lighting

• Enhanced programming and field serviceability: offers current sensing for future energy management, field upgradable firmware, and email alerts for serviceability

• Code compliant: is fully compliant with California Title 24 (2013). Additionally, the UDM is UL, CUL and CE listed

• Built-in protection: includes thermal, current, load type, and irregular load protection

Find out more: http://www.wattstopper.com/products/architectural-dimming-platform/modules/universal-dimming-module.aspx – .V02zFWOQZi3.
